800 nits Microdisplay 0.23 inch AMOLED Micro display 640(RGB)X400

this micro oled screen is a 0.6 cm (type 0.23) diagonal micro display panel, with high resolution of 640x400 and high brightness of 800 cd/m2, which is applied for AR VR devices.

High brightness 800cd/m2 0.23 inch Micro OLED Display  640(RGB)x400 for AR VR



DESCRIPTION


The microoled screen panel is 0.23" diagonal Si-OLED display panel product, it is a full color micro oled display  with a high resolution of 640 (RGB) × 400 and the brightness can be reached 800cd/m2, this micro display screen using single-crystal silicon transistors and

silicon wafers.


it self emiting, without touch screen. It's general features are summarized in the following:


Ultra High Brightness , RGB 24bit, YCbCr24/16bit I/F.

No backlight - a direct emissive display with high contrast and a wide color gamut

Fast refresh rate up to 60Hz

Low power consumption (this depends on the image shown)

Wide operation temperature range

Good image quality

High resolution

impact size

very thin and light in weight


Based on its features,we recommend that this model be applied in filed like retail, tourism and advertising where AR can be used to enhance customer experience. The compact size of the display makes it suitable for use in wearable devices such as smart glasses or hea.







GENERAL SPECIFICATION


Part Number
HGECX336AF
Brand
Hicenda
Diagonal Size
0.23″
Panel Type
Micro OLED, Si-OLED
Resolution
640(RGB)×400
Display Area
8.143 × 6.146 (H×V) mm
Outline Size
15.6 × 13.6 × 0.2(H×V×D)
Luminance
800 cd/m² (Typ.)
Color Gamut
16.7M 83% DCI-P3
Contrast Ratio
100000:1 (Typ.) (TM)
Interface
RGB 51 pins
Operating Temperature
-40 ~ 60 °C
Application
VR AR Display

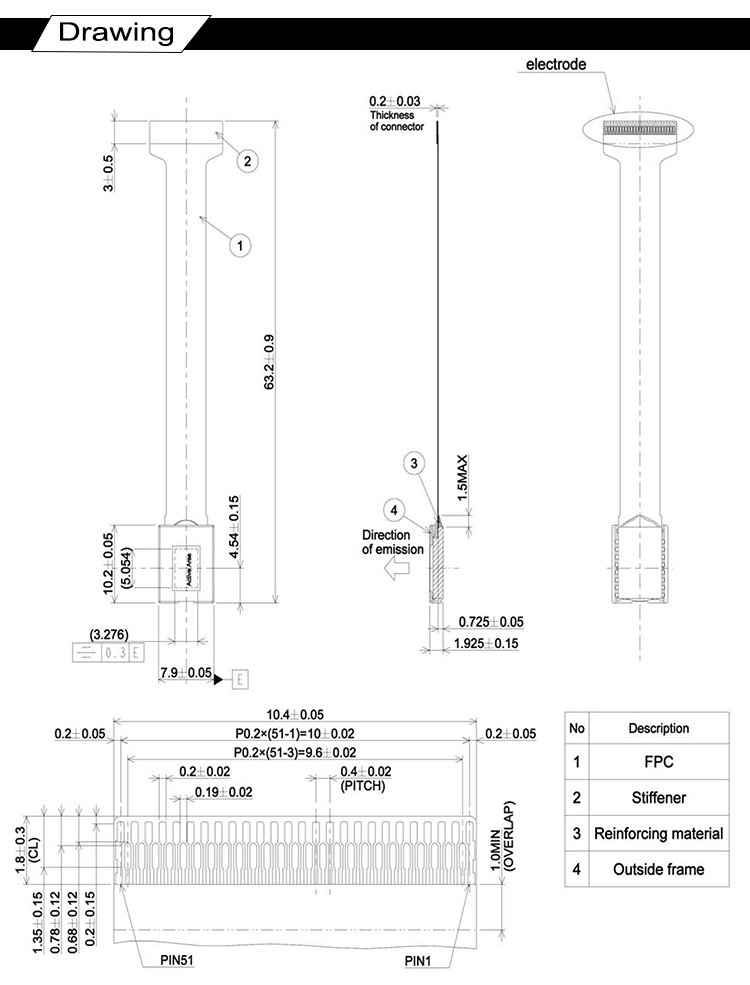

DRAWING

oled microdisplay 0.23.jpg

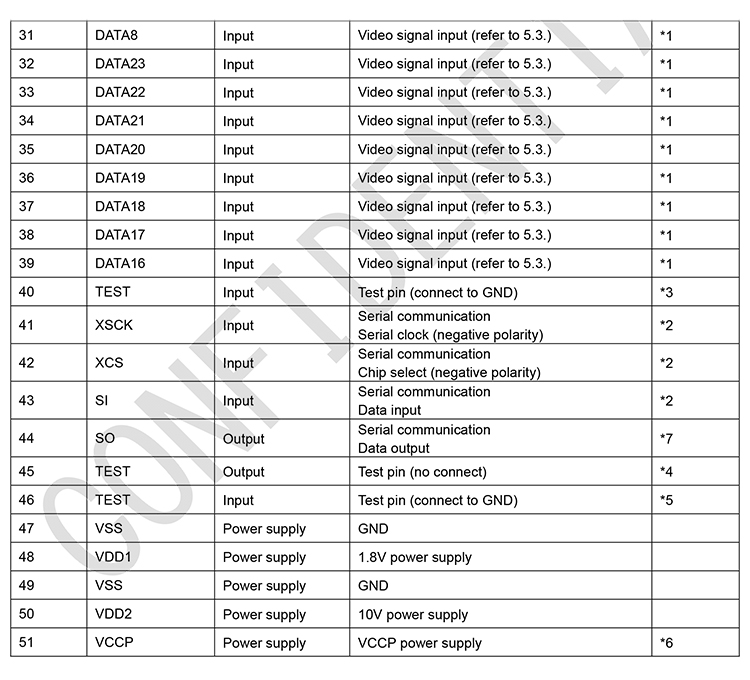

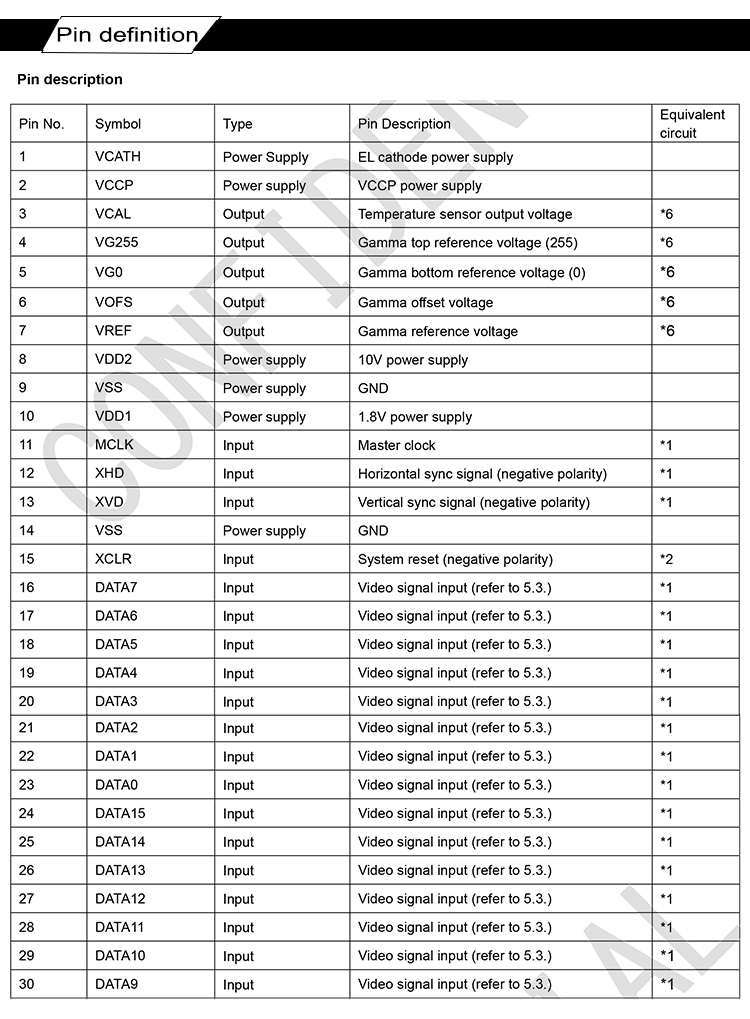

INTERFACE PIN FUNCTION

0.23 inch microdisplay for AR VR.jpg

Micro OLED Display.jpg
