The Micro oled display is a 0.6 cm (type 0.23) diagonal, 640 (RGB) ×400 dots active matrix color OLED panel module using single-crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition.
High brightness 0.23 inch Micro OLED Display 640x400 for AR VR
DESCRIPTION
The 0.23-inch Micro OLED display with a resolution of 640x400 pixels, featuring both MIPI (1 lane) and I²C interfaces, is a highly advanced, compact display technology designed for AR (augmented reality) applications. This display, model HMRVXR023, offers exceptional brightness levels ranging from 3000 nits to an impressive 10000 nits, ensuring vibrant and clear visuals even in challenging lighting conditions. With a high pixel density of 3255 PPI and a contrast ratio greater than 10,000:1, it delivers superior image quality and clarity. Its small form factor, coupled with robust operational characteristics, makes it ideal for wearable devices, head-mounted displays, and other cutting-edge AR solutions.
The display is engineered to offer high efficiency, operating across a wide temperature range of -40℃ to +65℃, with a storage range extending from -55℃ to +90℃. This allows the display to perform reliably in extreme environmental conditions. Additionally, the display's life expectancy is impressive, with a lifespan of up to 600 hours at 6000 nits brightness and 500 hours at 3000 nits, ensuring long-term durability. The low weight (0.2 g) further enhances its suitability for portable and lightweight devices.
At just 0.23 inches, the HMRVXR023 display offers a compact yet sharp visual experience. The resolution of 640x400 pixels (RGB delta configuration) ensures that the display can present intricate details with clarity, providing a high-definition viewing experience. Its small size and high pixel density of 3255 PPI make it perfect for applications where space is limited but image quality cannot be compromised.
The display boasts remarkable brightness options: 3000cd/㎡, 6000cd/㎡, and 10000cd/㎡. Such high brightness levels make it suitable for use in a variety of lighting environments, ensuring readability in both indoor and outdoor conditions. With a contrast ratio greater than 10,000:1, users can expect deep blacks and bright whites, enhancing the overall visual experience.
GENERAL SPECIFICATION
| Specification | Value |
|---|---|
| Model No | HMRVXR023 |
| Display Size | 0.23 inches |
| Resolution | 640×400 (RGB delta configuration) |
| Brightness | 3000cd/㎡, 6000cd/㎡, 10000cd/㎡ |
| Refresh Rate | 25Hz to 90Hz |
| Pixel Size | 7.8µm × 7.8µm |
| Active Area | 5.06 mm × 3.29 mm (diagonal) |
| Color Depth | 3255 PPI |
| Interface | MIPI (1 lane) + I²C |
| Contrast Ratio | >10,000:1 |
| Life (T90) | 500 hours @ 3000 cd/㎡; 600H@ 6000cd/㎡; 600H@ 10000cd/㎡ |
| Operating Temperature | -40℃ to +65℃ |
| Storage Temperature | -55℃ to +90℃ |
| Weight | 0.2 g |

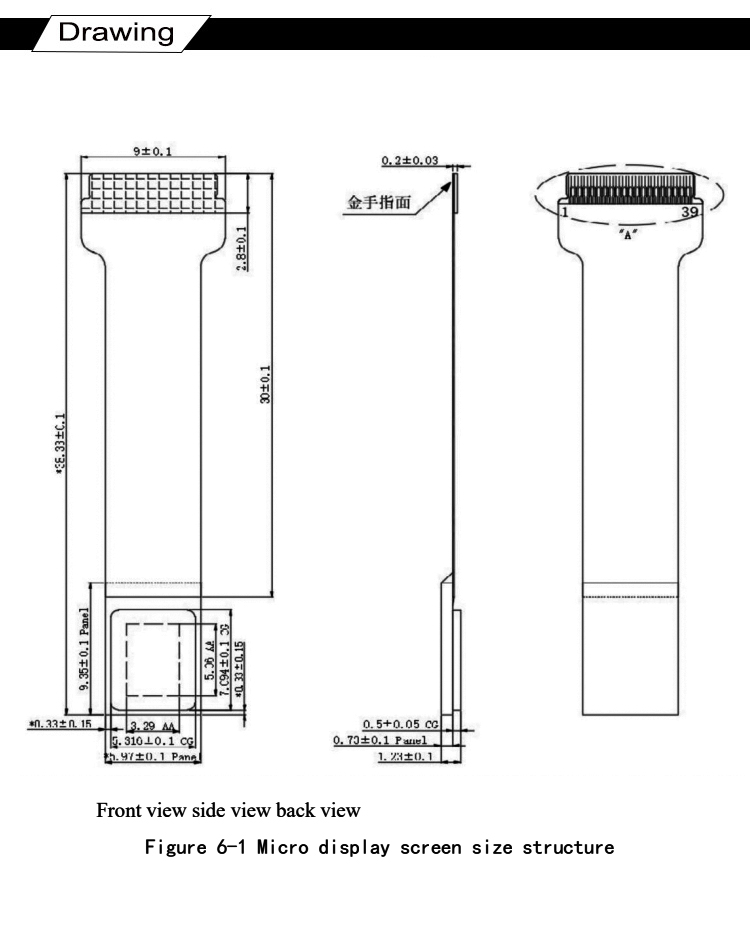

DRAWING

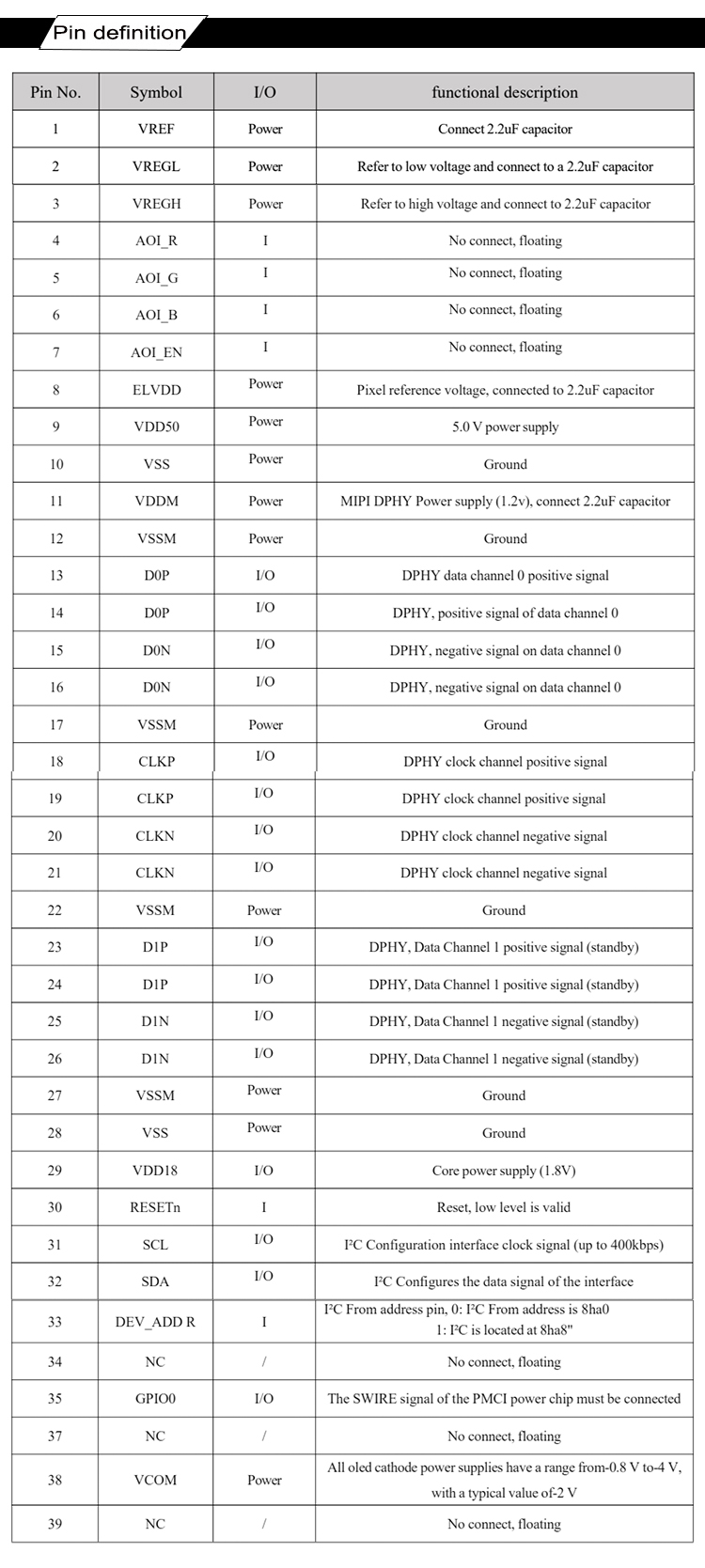

INTERFACE PIN FUNCTION
The inclusion of the MIPI (Mobile Industry Processor Interface) with a single lane (1 lane) allows for high-speed data transmission between the display and the processor. This interface is critical for real-time data delivery, ensuring that the display refreshes at optimal speeds (25Hz to 90Hz), and maintaining smooth visual performance for interactive AR experiences.
The I²C interface adds versatility to the design by enabling easy communication with other components and devices. This allows the display to be seamlessly integrated into a wide range of systems, especially in applications where minimal wiring and power consumption are key requirements.
One of the standout features of the HMRVXR023 display is its longevity. It is designed to withstand extended usage, providing up to 500 hours of operation at 3000cd/㎡, 600 hours at 6000cd/㎡, and 600 hours at 10000cd/㎡. This extended lifespan ensures that users can rely on the display over long periods of time, even under high brightness settings.
The display is built to perform well in a range of harsh environmental conditions. Its operational temperature range spans from -40℃ to +65℃, making it suitable for outdoor and industrial applications. Additionally, the storage temperature range from -55℃ to +90℃ ensures that the display can endure extreme conditions without compromising functionality.
With its small size, high pixel density, and excellent brightness levels, the HMRVXR023 Micro OLED display is perfectly suited for AR applications. Its integration into wearable AR devices allows for crisp, high-quality visuals that are essential for a seamless AR experience. The compact design also contributes to the comfort of wearable devices, reducing the weight and bulk typically associated with larger displays.
AR applications can benefit from the wide operating temperature range and durable design of this display, making it a reliable choice for both consumer and industrial use. Whether used in smart glasses, head-up displays (HUD), or other AR systems, the display ensures high performance even in challenging environments.
In summary, the 0.23-inch Micro OLED display (HMRVXR023) offers an advanced solution for AR devices, combining exceptional brightness, high resolution, and a compact form factor. Its versatility, with both MIPI and I²C interfaces, along with an impressive operational lifespan, makes it a robust choice for various applications. Whether in wearables, automotive displays, or other AR technologies, this display stands out for its performance, durability, and clarity.
This innovative micro OLED technology sets the stage for the future of immersive augmented reality, offering users a combination of high-quality visuals, reliable durability, and seamless integration into a wide range of systems.
