Microdisplay 0.23 inch 640x400 microoled 1600nits for AR

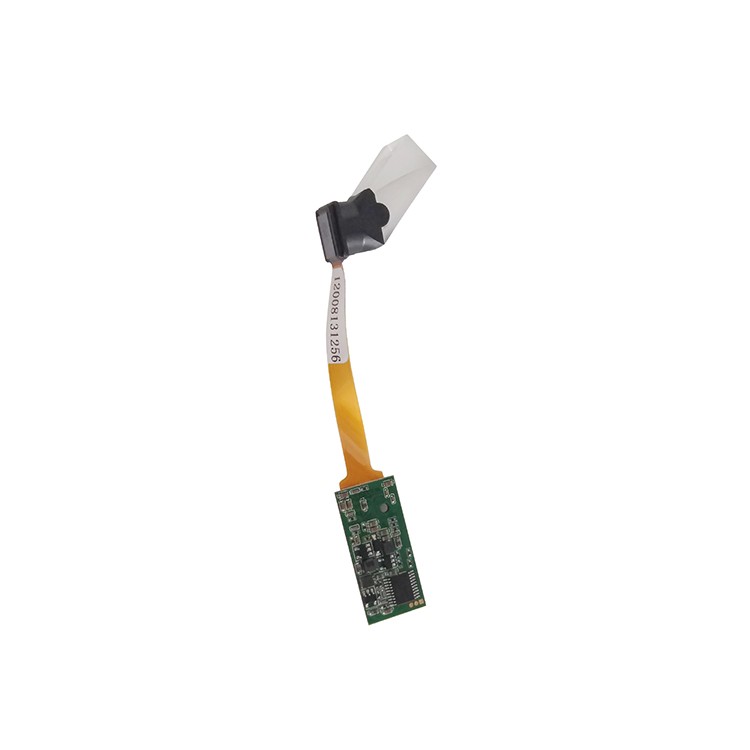

The Micro oled display is a 0.6 cm (type 0.23) diagonal, 640 (RGB) ×400 dots active matrix color OLED panel module using single-crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition.

High Resolution 0.23 inch MicroOLED Display 640x400 for AR VR



DESCRIPTION


This 0.23 inch silicon-based Micro OLED Microdisplay is a mini display technology that uses OLED technology and is built on a silicon substrate. this oled microdisplay integrates panel drivers with logic drivers for small size, light weight, and clarity. which mkaes \



Product Advantages:


This Micro Screen is No backlight - a direct emissive display with high contrast and a wide color gamut

This OLED display module has high resolution (640*400), It has rich shows details and clear viewing.

The module adopts optical waveguide technology, which has the advantages of high resolution

The microdisplay  is thin and light. The thickness of the lens is 10mm.

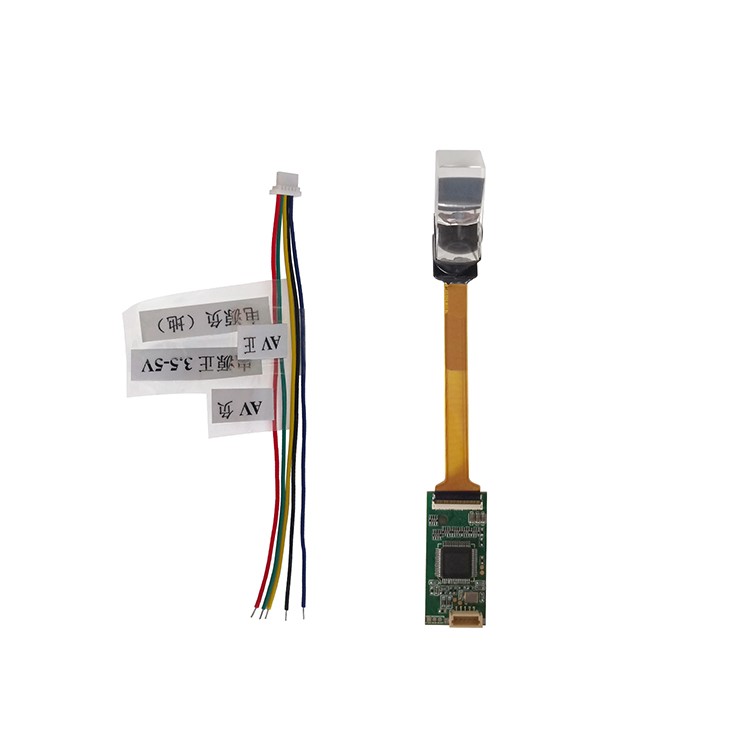

The interface on drive board for this Microoled is Micro HDMI driver and CVBS. If other interfaces are needed, we can provide customization.

Fast refresh rate up to 60Hz

Low power consumption (this depends on the image shown)

Wide operation temperature range

Good image quality





More key features of the micro oled screen makes it very popular in the marketing and applied for many files such as industrial, medical and consumer fields


(Applications: ar devices, vr headsets,View finders, head mounted displays, very small monitors, etc.)

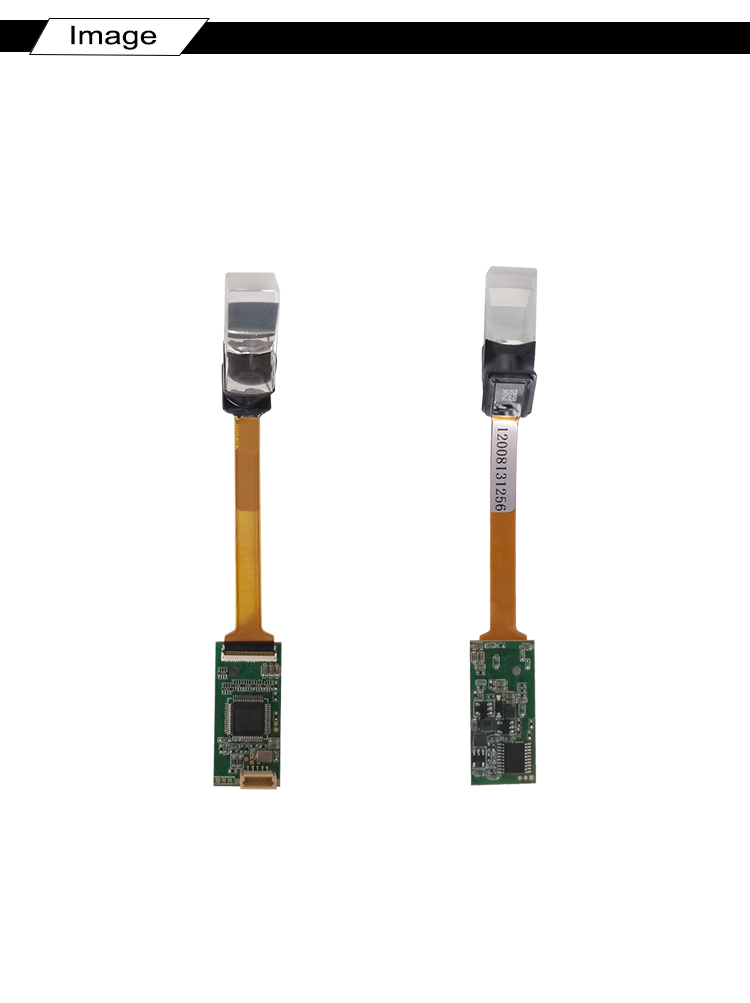

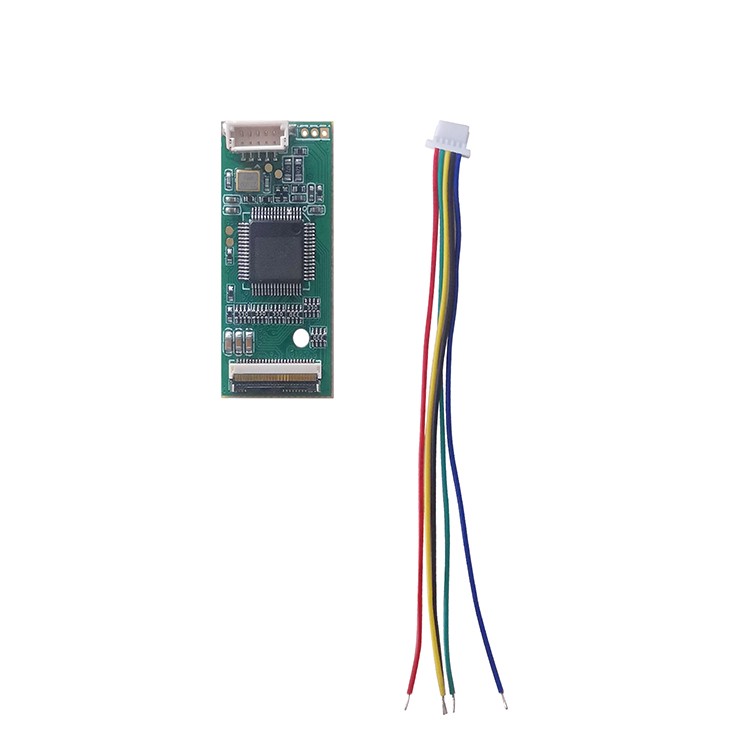

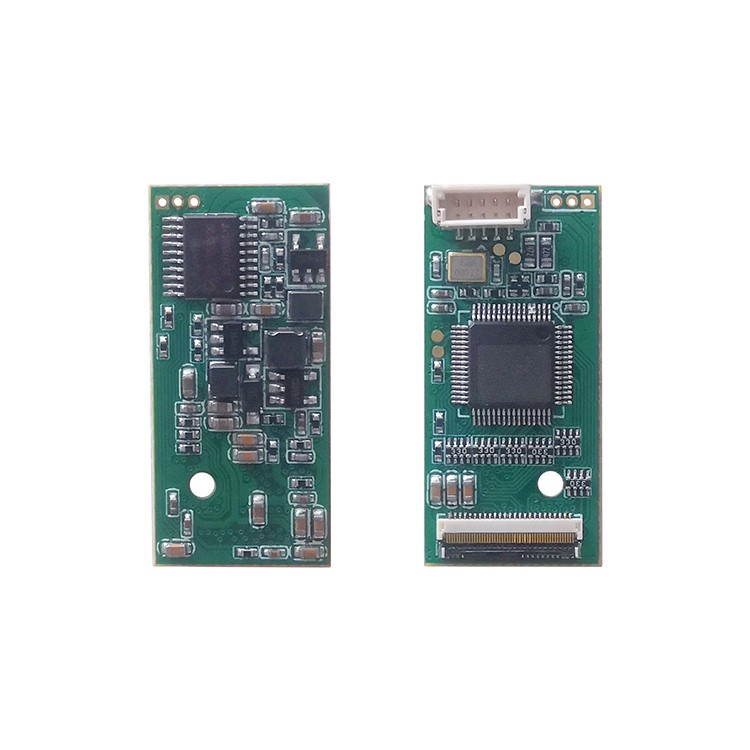

We have DRIVER board of Micro HDMI & CVBS interface for the amoled microdisplay that makes your job more efficient.




GENERAL SPECIFICATION


Display Size                                          0.23 inch
Resolution640×400
Maximum brightness1600cd/m2
Display ColorFull Color
InterfaceMIPI
Color Pixel ArrangementVertical RGB strips
Active Area5.06mm×3.29mm

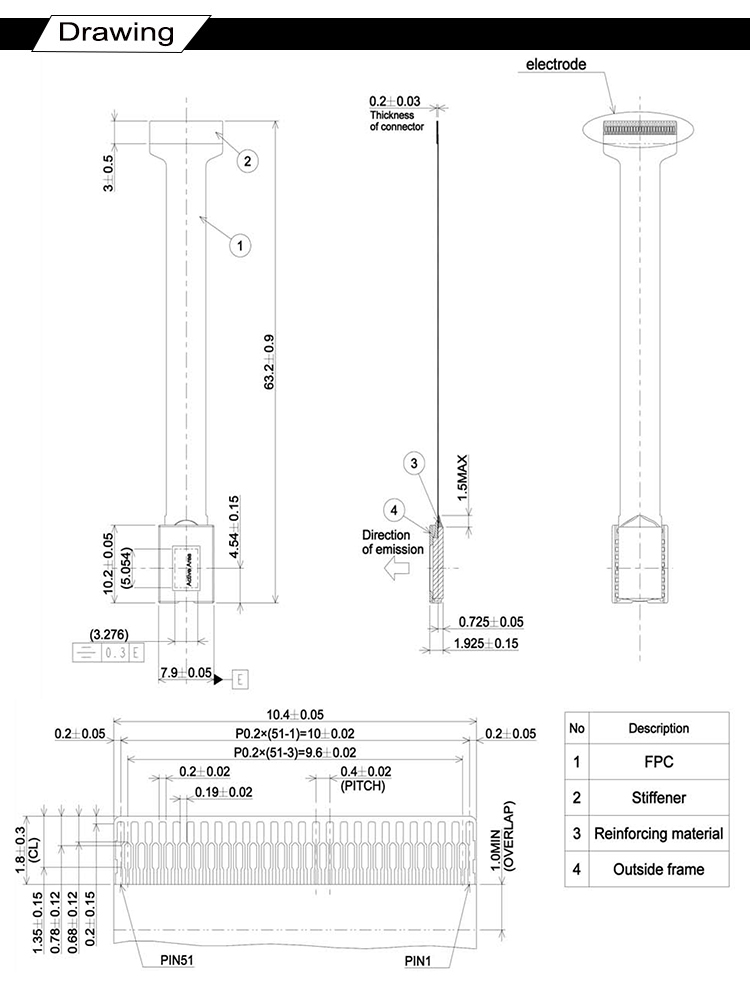

DRAWING


OLED MICRODISPLAY.jpg

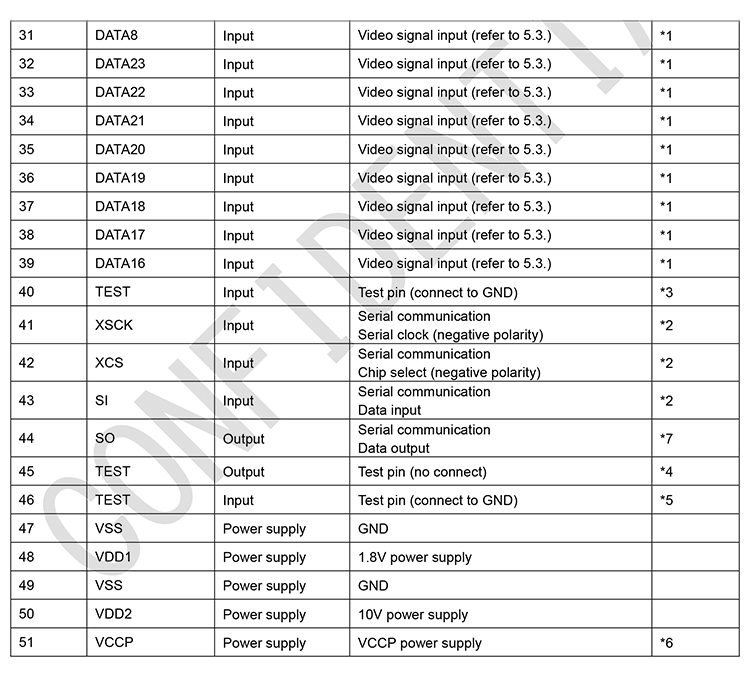

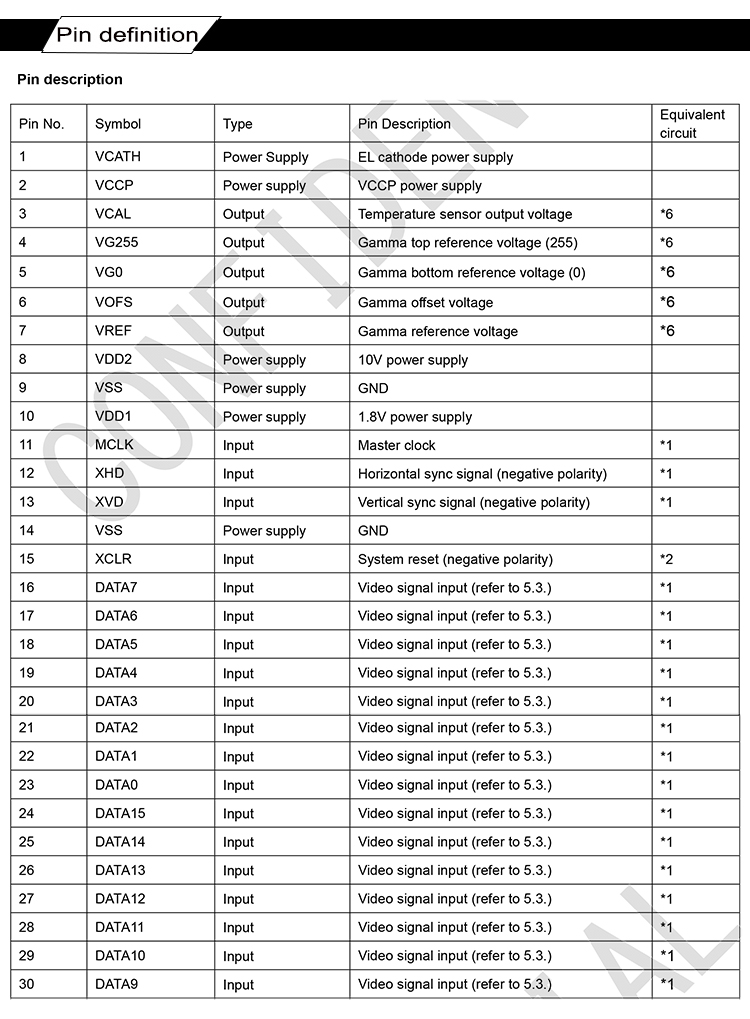

INTERFACE PIN FUNCTION



SONY OLED MICRODISPLAY.jpg

640X400 MICRO OLED DISPLAY.jpg
