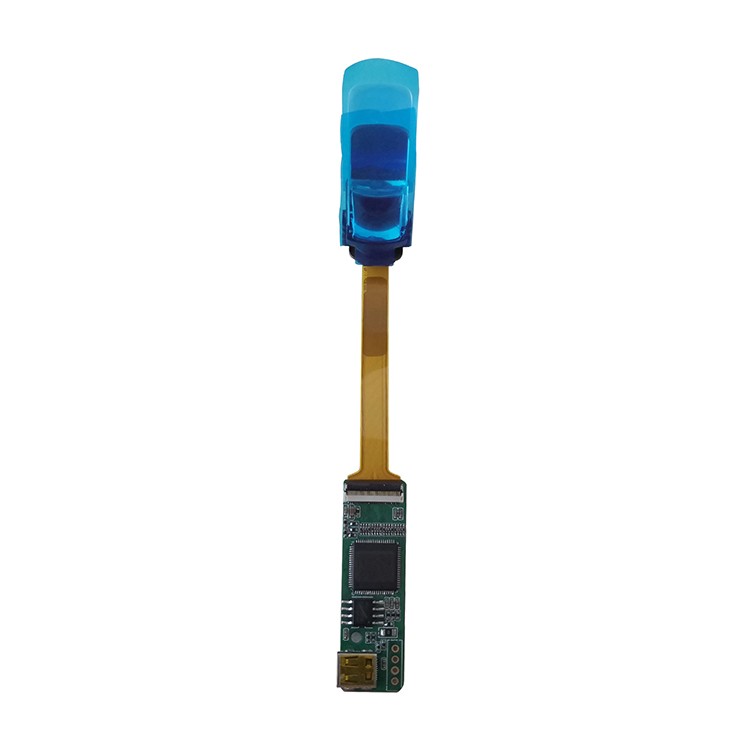

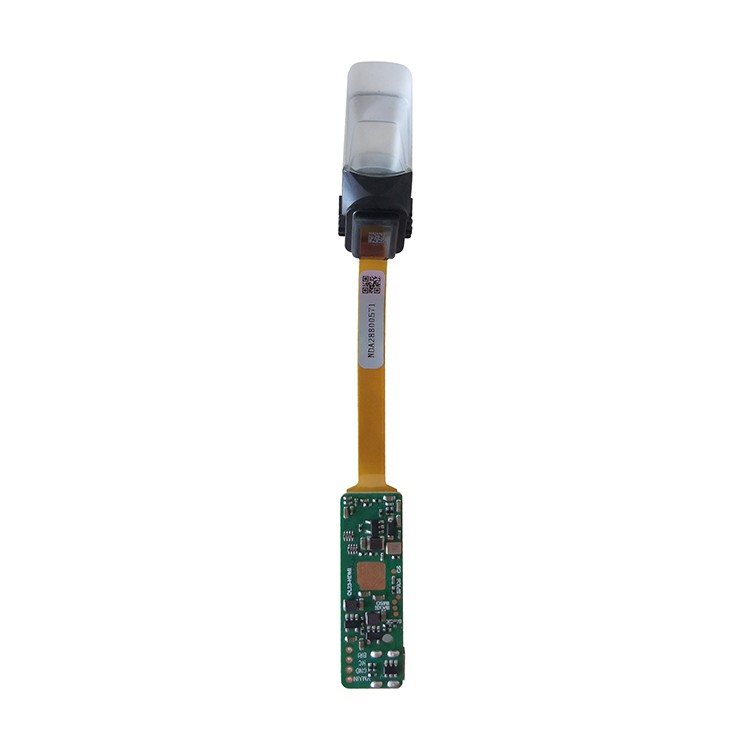

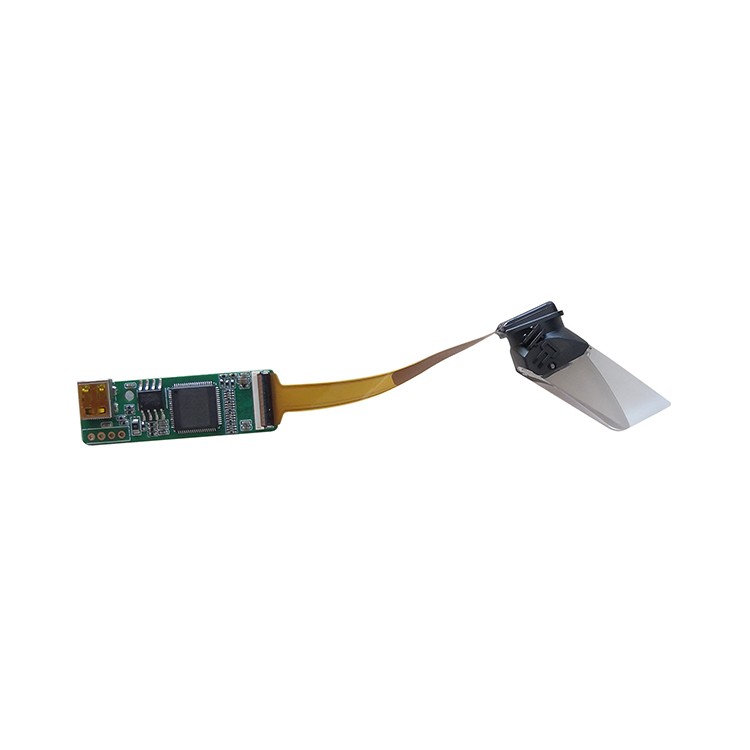

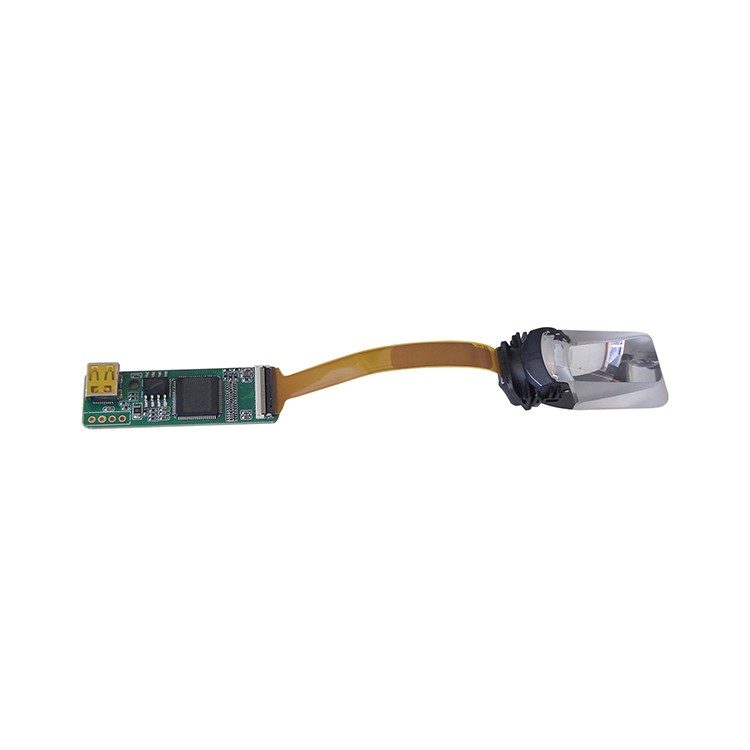

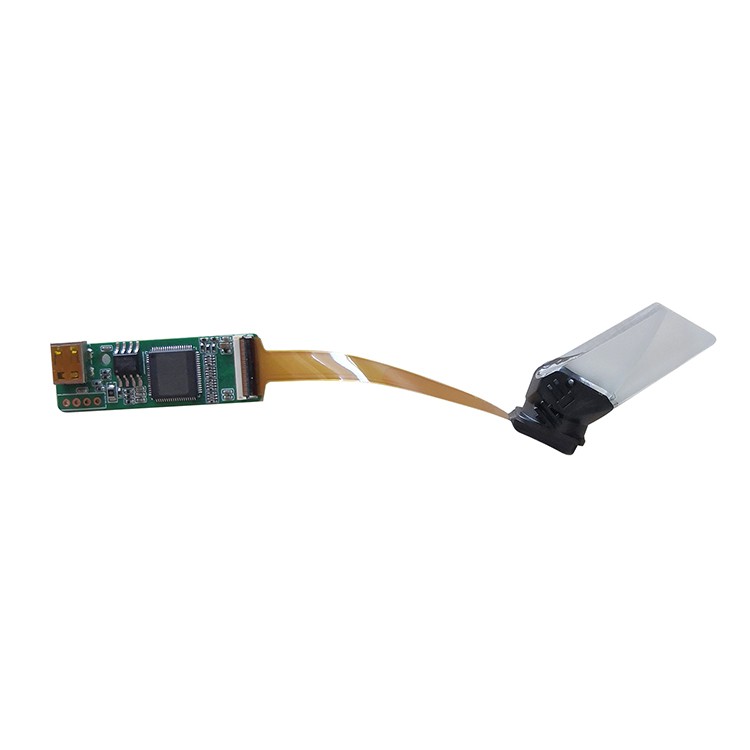

0.23" Micro OLED Display 640x400 4000nits

The Micro oled display is a 0.6 cm (type 0.23) diagonal, 640 (RGB) ×400 dots active matrix color OLED panel module using single-crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition.

High brightness 0.23 inch Micro OLED Display 640x400 for AR VR



DESCRIPTION


The microoled screen panel is a 0.6 cm (type 0.23) in diagonal, with high resolution 640 (RGB) × 400 full color micro OLED panel module using single-crystal silicon transistors and

silicon wafers. this OLED micro display is considered to be the current state-of-the-art near-eye display technology which makes many advantages over competing technologies


No backlight - a direct emissive display with high contrast and a wide color gamut

Fast refresh rate up to 60Hz

Low power consumption (this depends on the image shown)

Wide operation temperature range

Good image quality

High resolution

impact size

very thin and light in weight


more key features of the micro oled screen makes it very popular in the marketing and applied for many files such as industrial, medical and consumer fields



(Applications: ar devices, vr headsets,View finders, head mounted displays, very small monitors, etc.)

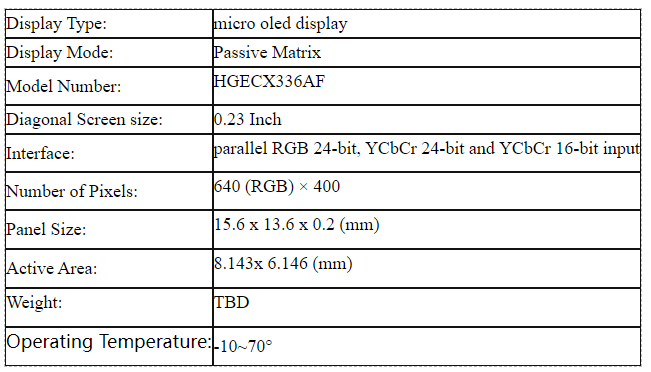

GENERAL SPECIFICATION


oled micro screen.jpg


DRAWING

micro display 0.23.jpg



INTERFACE PIN FUNCTION

oled micro screen 640x400.jpgoled micro screen for ar.jpg
