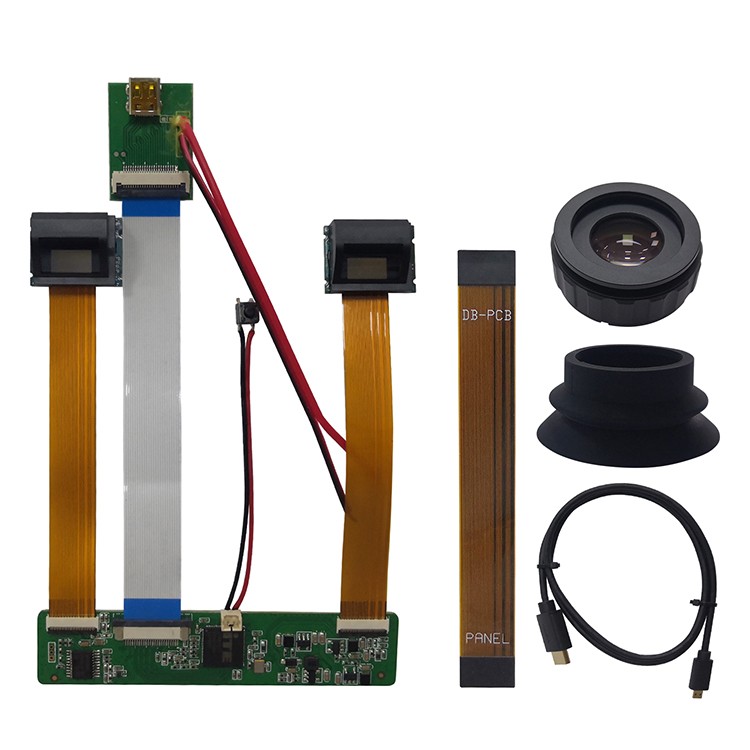

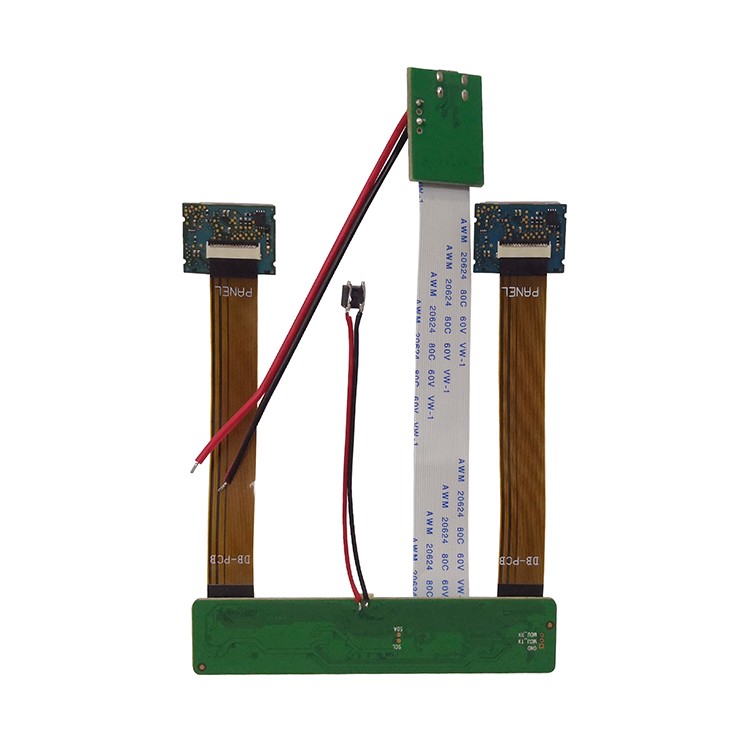

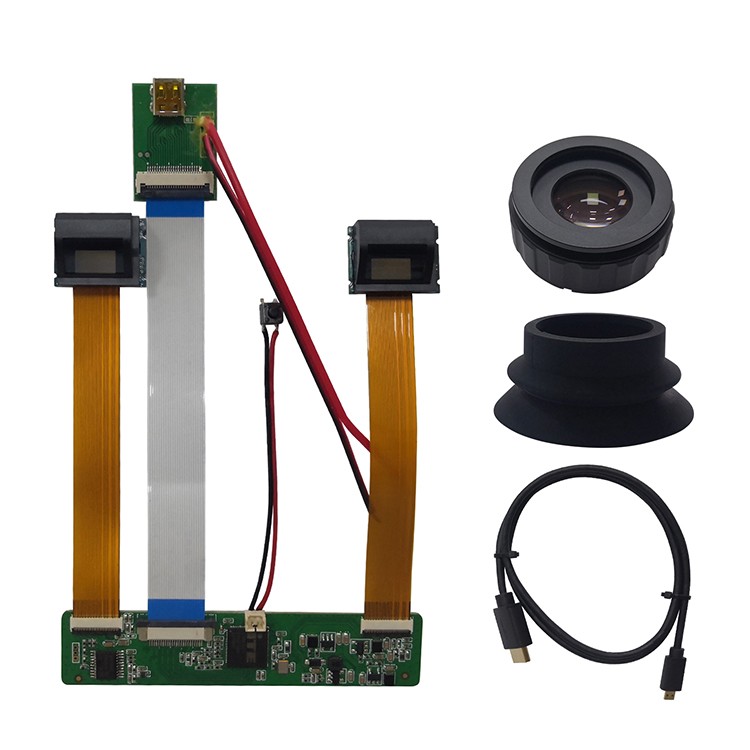

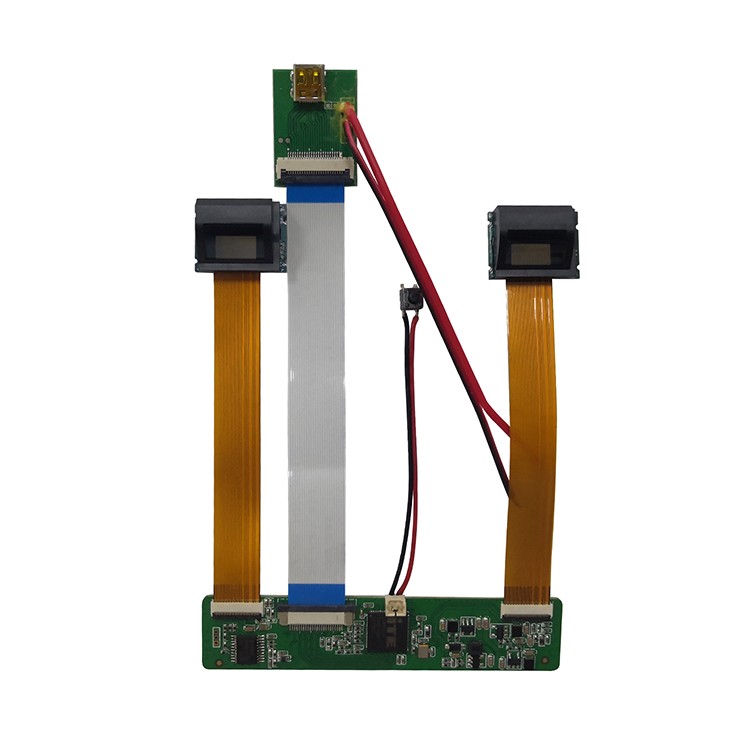

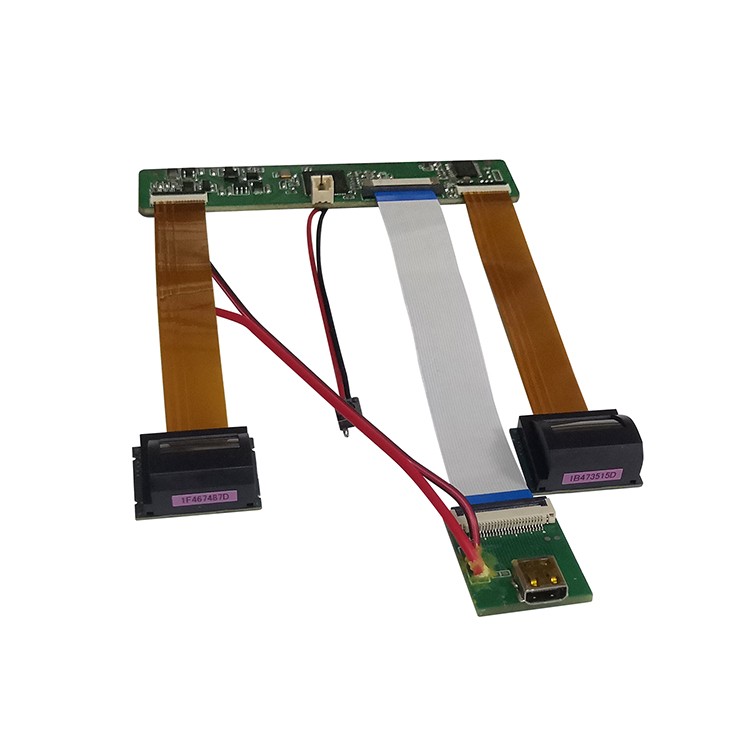

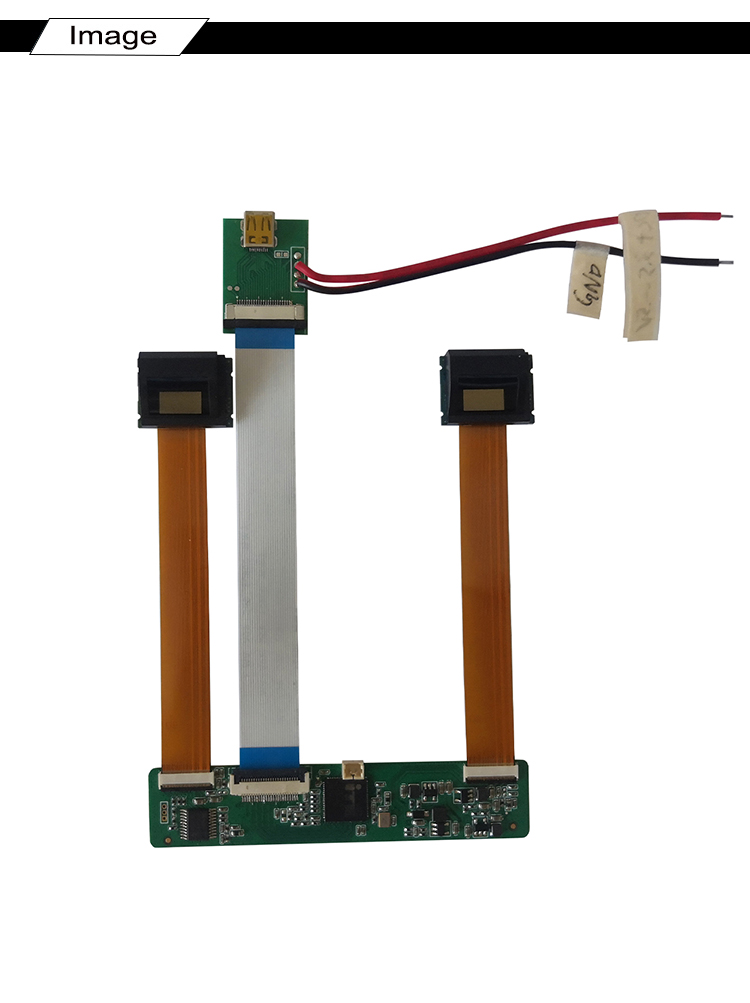

0.38 inch microdisplay lcos dual displays for ar glasses

the 0.38 inch micro display is a LCOS display and applied for AR glasses VR headsets, with high resolution is 1280x720, with 4.2Million unique colors, Display Frame Rate up to 60 Hz/360Hz

0.38 inch microdisplay lcos dual displays for ar glasses



DESCRIPTION


Liquid crystal on silicon (LCoS or LCOS) is a miniaturized reflective active-matrix liquid-crystal display or "microdisplay" using a liquid crystal layer on top of a

silicon backplane. It is also known as a spatial light modulator. LCoS initially was developed for projection televisions, but has since found additional uses in wavelength

selective switching, structured illumination, near-eye displays and optical pulse shaping.


This  lcos display is a 0.38 inch in diagonal Micro display, with high-resolution of 1280x720 pixels, wide Storage Temperature of -30℃ ~ 83℃, smalled size, low power consumption, this


micro flcos display is recommed to be applied to HMD VR AR, View finders,head mounted displays, very small monitors, etc.







GENERAL SPECIFICATION

flcos display 0.38.jpg

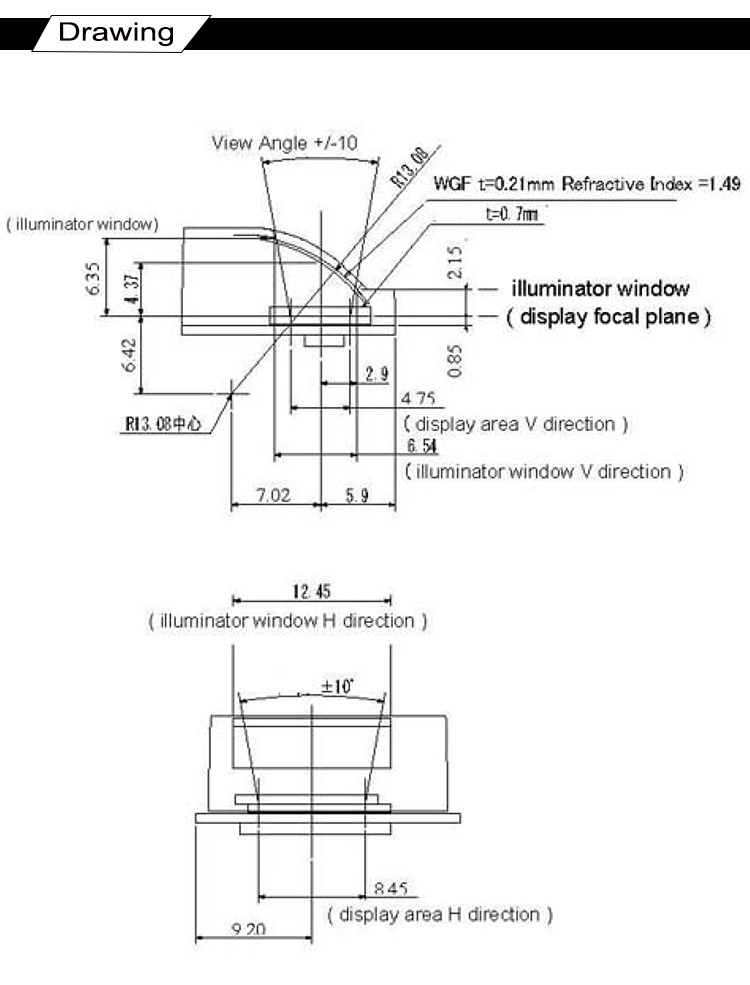

DRAWING

0.38 lcos micro display 1280x720.jpg

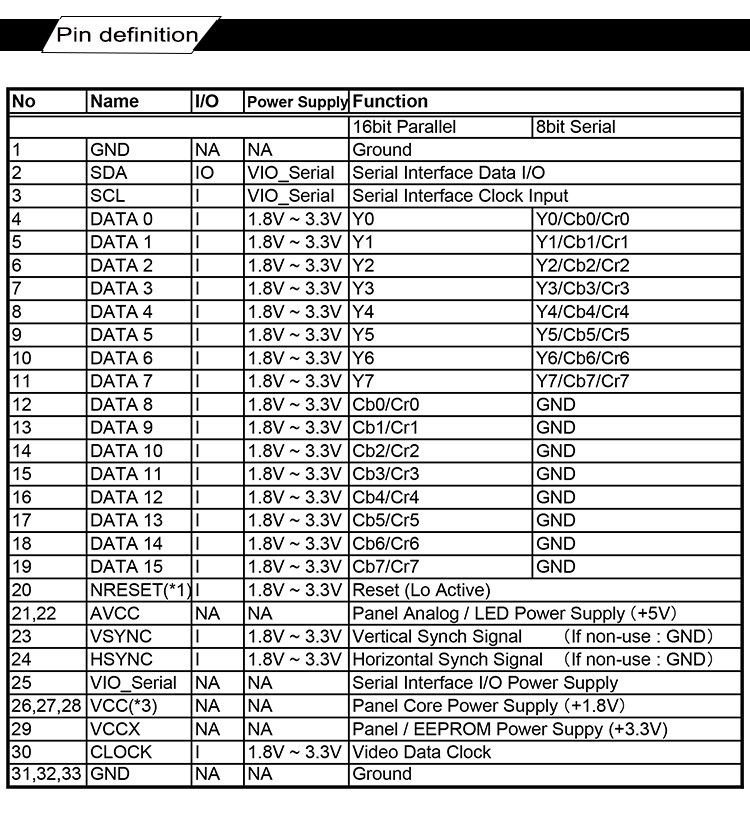

INTERFACE PIN FUNCTION

720P micro lcos display for AR.jpg

720P flcos display.jpg
