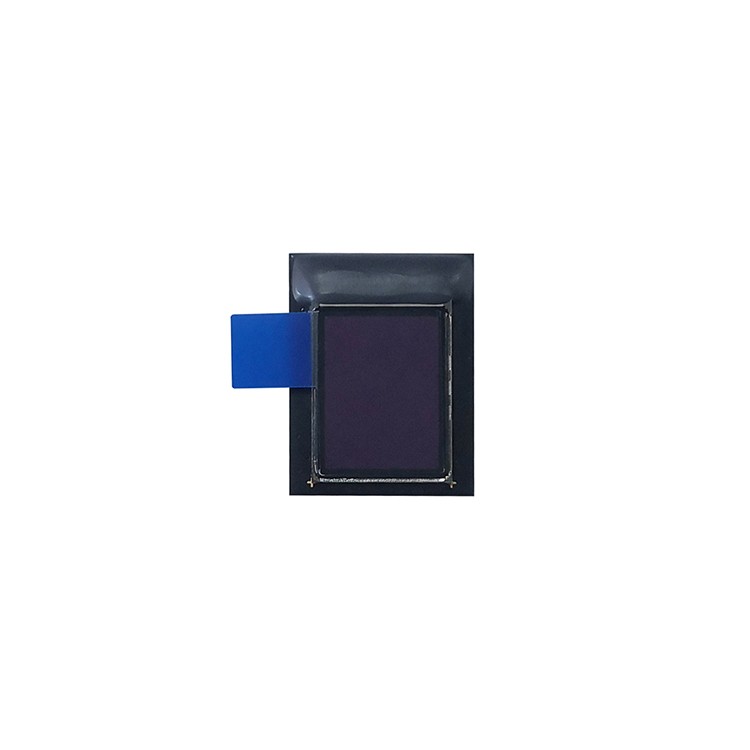

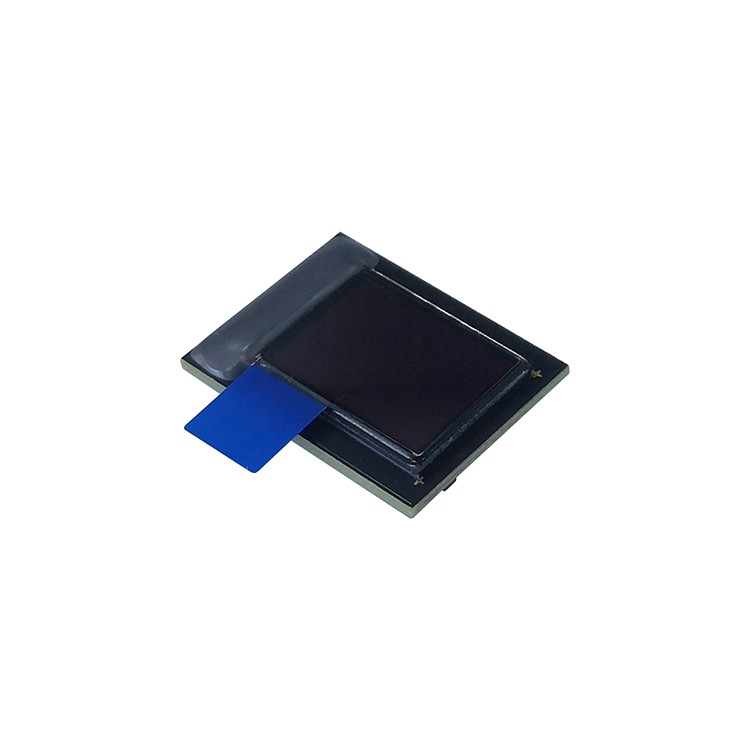

0.6 inch Micro OLED screen 800x600 for Military

800x600 Micro oled 0.6 inch Micro oled screen for Military

DESCRIPTION

This Micro oled display is a 0.6 inch,  High resolution of 800 (RGB)x600, active matrix color OLED panel module based on single crystal silicon backplane. The pixel circuits and driving IC

are combinated on the silicon backplane to reach the micro size and extreme low power consumption. Its potential applications is AR, VR, Head mounted display, near-eye display etc.

HSM060SVGA series AMOLED microdisplay fabricated by Hicenda’s proprietary top emitting and high luminance efficiency Si-Base AMOLED technology. HSM060SVGA series microdisplay includes full colors, Monochrome white, Monochrome green and other specifications. With the same interface and pin definition, HSM060SVGAseries products have 12.06mm×9.06mm (0.6 inch) display area, and supported less than or equal to SVGA resolutions format. With proper optic enhancement devices, the microdisplay can provide high quality, large virtual image.

HSM060SVGA series microdisplay’s silicon substrate is fabricated by 0.18μm CMOS technology, integrated full digital video signal processing, 804×604×3 active driving units, digital logic control, scan distribution, D/A converting, temperature sensor, gamma correction, DC-DC for cathode’s negative voltage, two-wire serial communication interface and so on. The input video signal is compatible with ITU-R BT. 656 and support 8/16/24 bit digital video. The function of microdisplay such as display mode, scanning direction, display position, brightness, contrast and gamma correction can be programmed through the two-wire serial communication interface. The digital interface voltage level is compatible with 1.8V CMOS standard. The microdisplay can be applied in various near-to-eye display systems that demand compact size, high resolution, low power consumption and wide working temperature range.

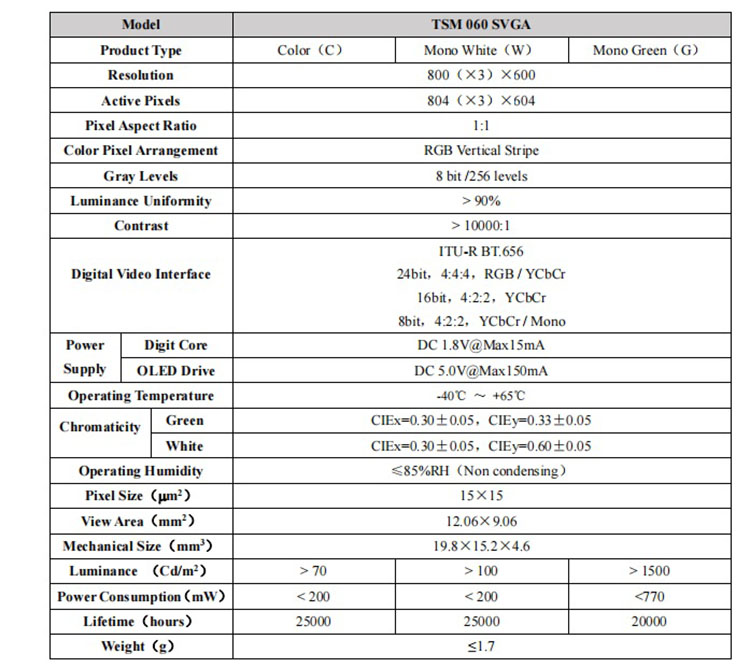

GENERAL SPECIFICATION

DRAWING

INTERFACE PIN FUNCTION
