0.23 inch AMOLED Micro display, 640(RGB)X400, 1600cd/m2

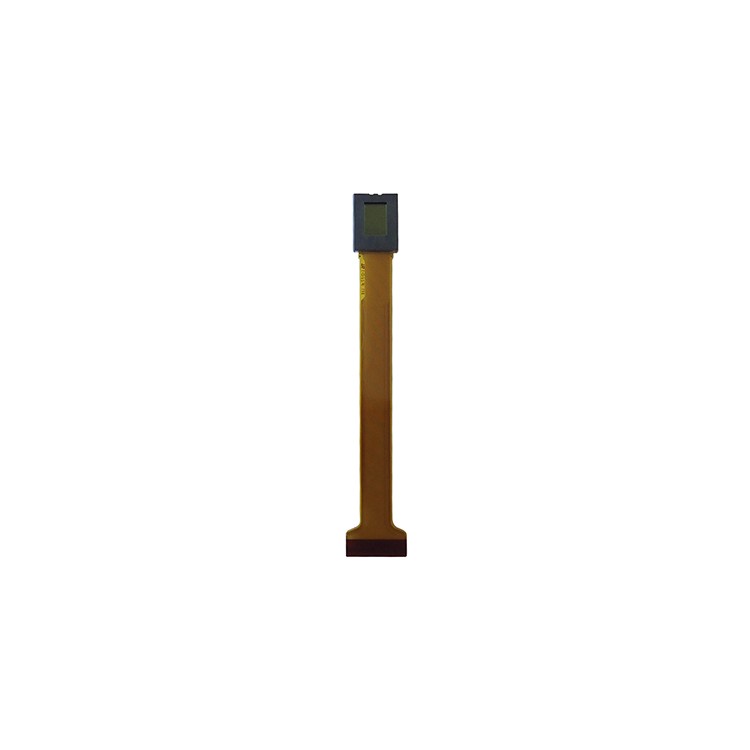

The Micro oled display is a 0.6 cm (type 0.23) diagonal, 640 (RGB) ×400 dots active matrix color OLED panel module using single-crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition.

High brightness 1600cd/m2 0.23 inch Micro OLED Display Screen 640(RGB)x400 for AR VR



DESCRIPTION


The micro-oled screen panel is 0.23" diagonal Si-OLED display panel product, it is a full color micro oled display  with a high resolution of 640 (RGB) × 400 , and the brightness can be reached 1600cd/m2, this micro display screen using single-crystal silicon transistors and

silicon wafers.


it self emiting, without touch screen. It's general features are summarized in the following:


Ultra High Brightness , RGB 24bit, YCbCr24/16bit I/F.

No backlight - a direct emissive display with high contrast and a wide color gamut

Fast refresh rate up to 60Hz

Low power consumption (this depends on the image shown)

Wide operation temperature range

Good image quality

High resolution

impact size

very thin and light in weight


Based on its features,we recommend that this model be applied to HMD VR AR, View finders,head mounted displays, very small monitors, etc.

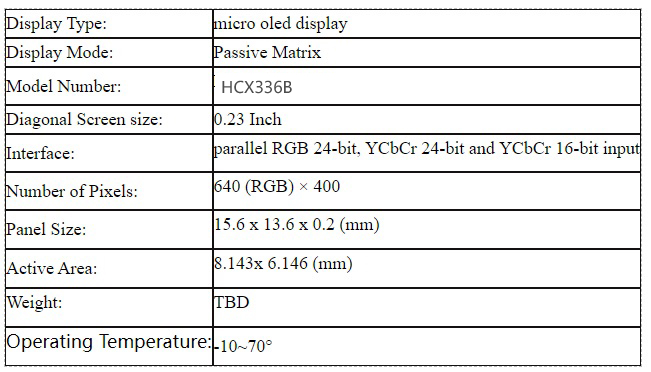

GENERAL SPECIFICATION

0.23 INCH MICRO OLED 640X400.jpg

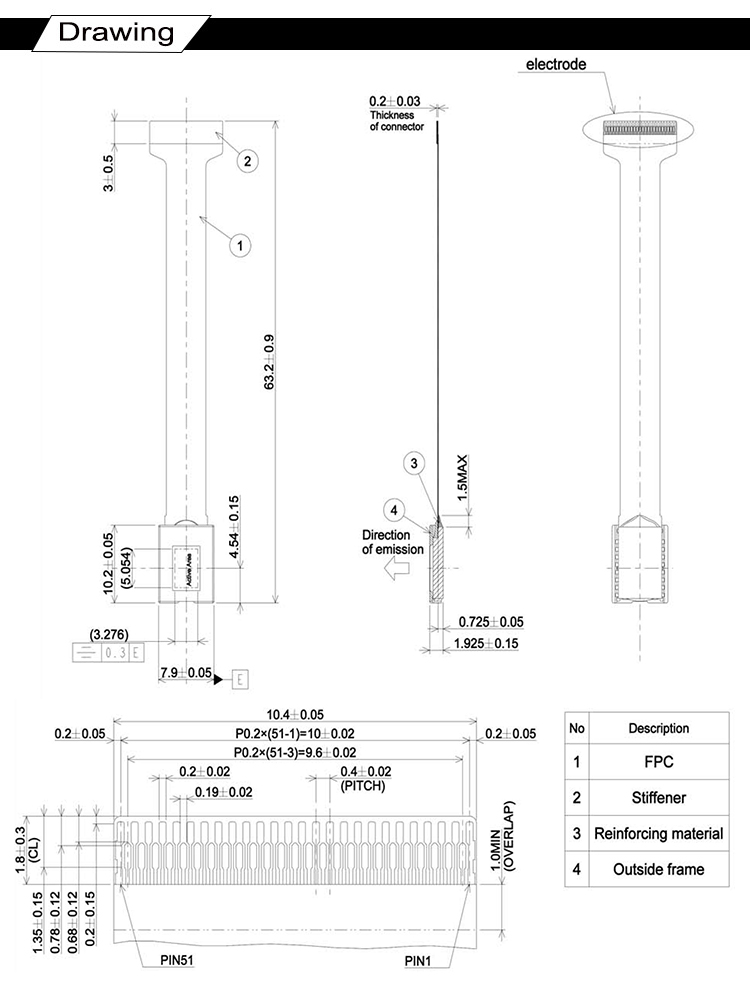

DRAWING

micro display 0.23.jpg

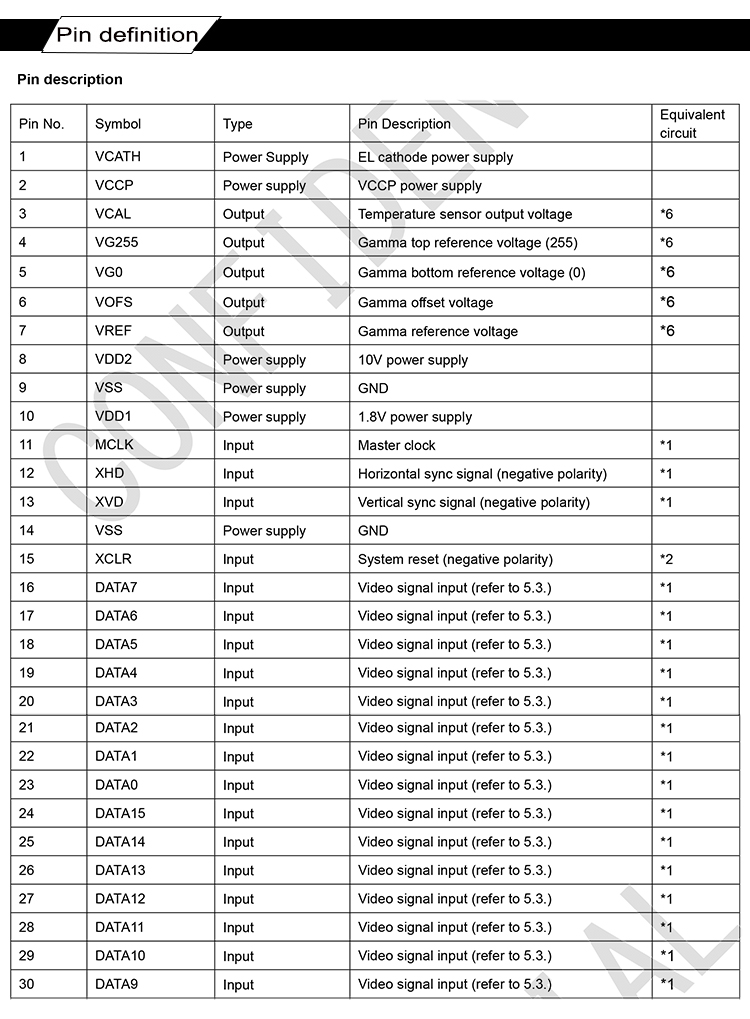

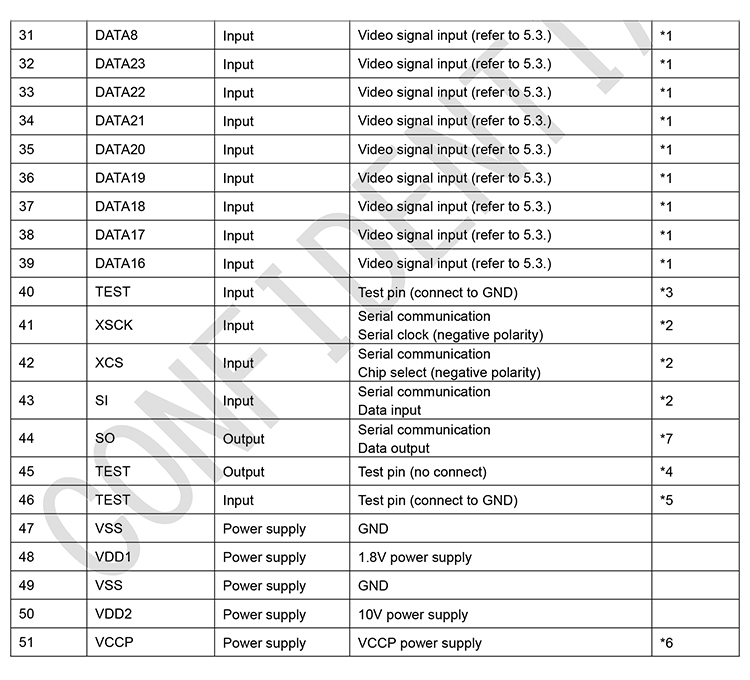

INTERFACE PIN FUNCTION

oled micro screen 640x400.jpgoled micro screen for ar.jpg
