AR Glasses Binocular Birdbath 1280X720 Optical Module

  AR Glasses Binocular Birdbath 1280X720 Optical Module

DESCRIPTION

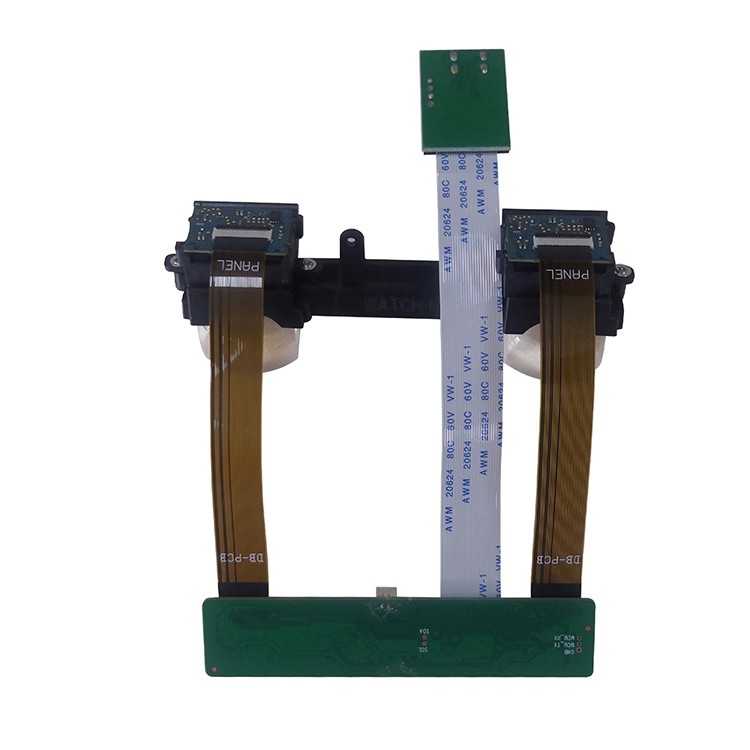

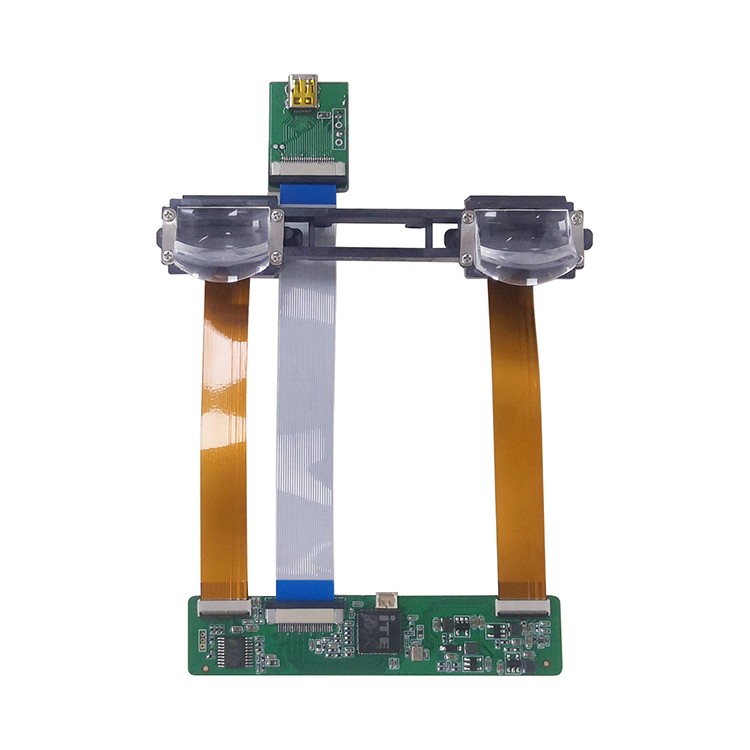

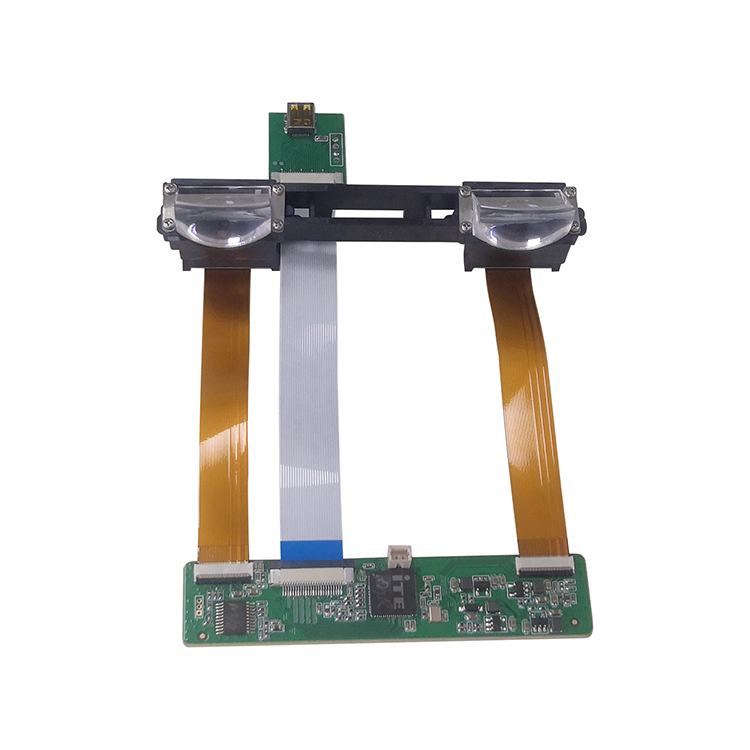

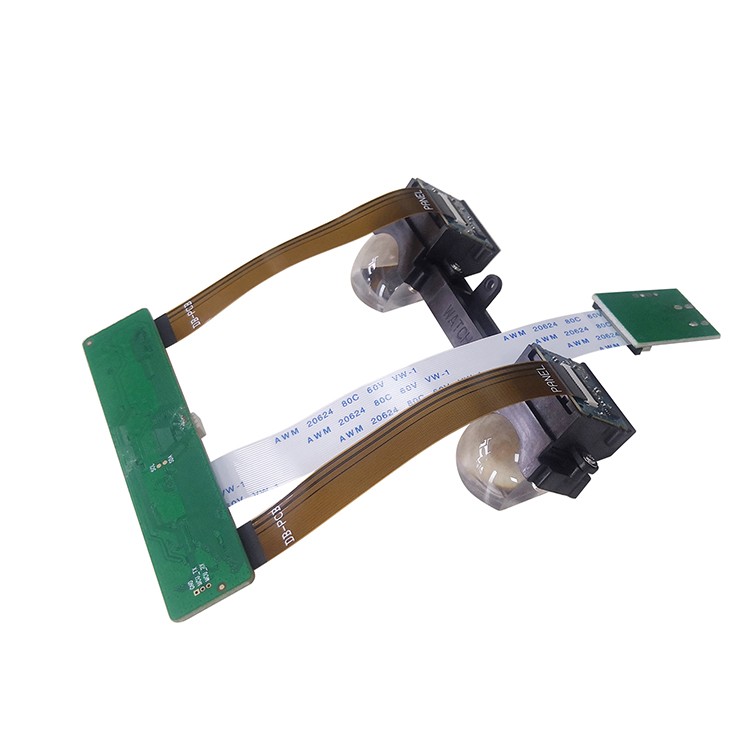

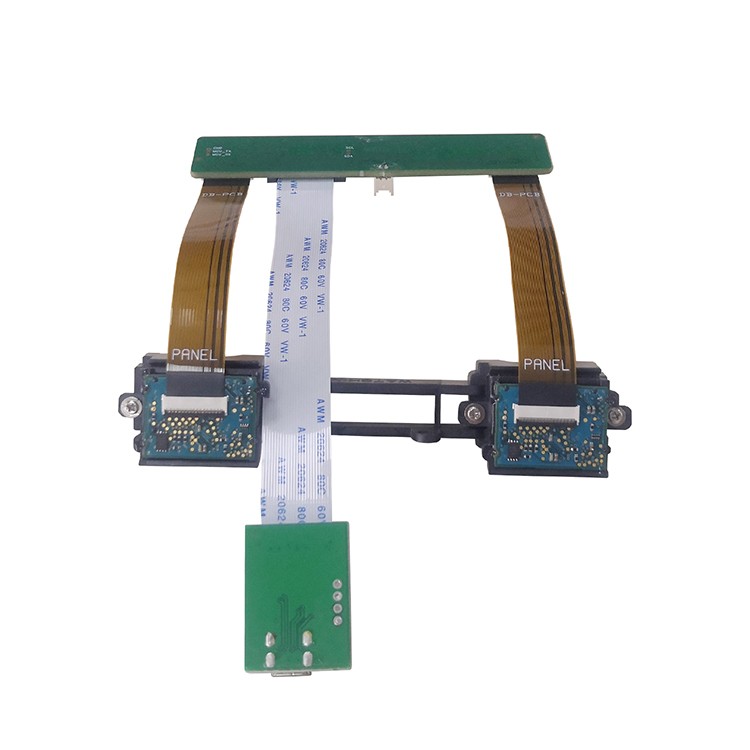

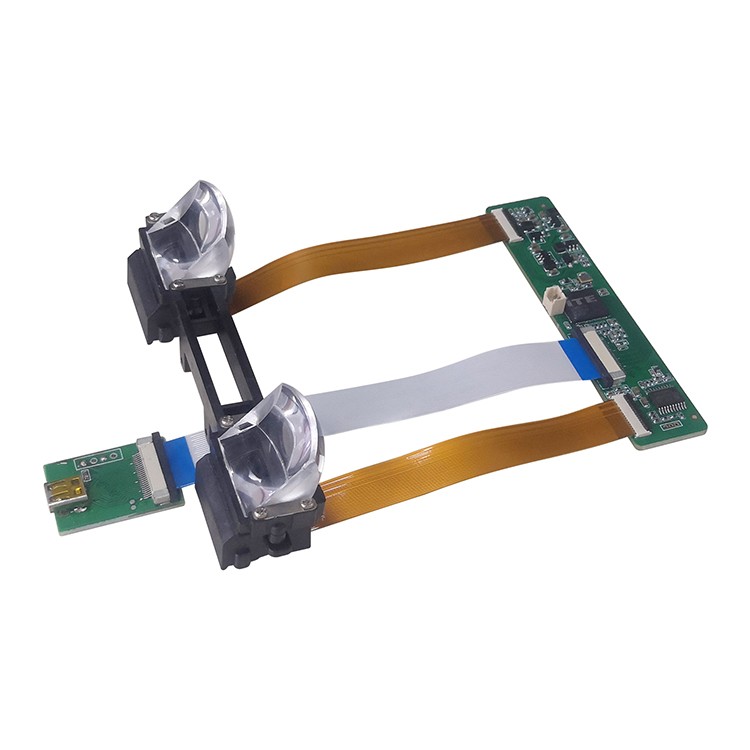

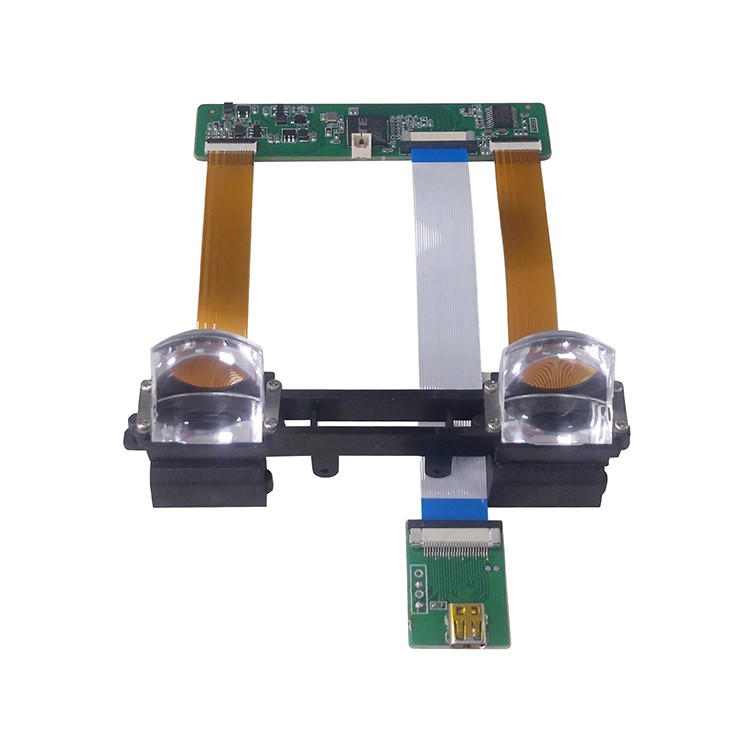

This Birdbath optics Modue is a binocular optical module called “BB”（Birdbath）for AR/VR, which is mainly composed of Micro LCOS display , optical lens and HDMI driver board. The Micro display panel is 0.38 inch micro-OLED 1280X720

This Bird bath opitcs module supports 720P1280X720 high resolution and up 250nits high brightness, FOV 50°,applicable in AR/VR devices.

SPECIFICATION

FOV:50°

Display panel:0.38 inch LCOS DISPLAY

Technology:Birdbath

Resolution:1280X720

Interface:LVDS

Luminance: Max 200 cd/m2

Uniformity:100000:1

Power consumption:820mW@1500nits/1280mW@3000nits

Frame rate:60Hz

Micro Display | Sony Micro LCOS Display

Eye box @ Eye relief:8*8mm@14mm

TV distortion:≤0.7%

MTF:MTF≥0.23@2PPL

Monocular Weight:23.2g

Light efficiency:~20% (Adjustable value)

Transmissivity:~20% (Adjustable value)

IPD: (63mm) (Recommended value)

DRAWING

INTERFACE PIN FUNCTION
