Micor OLED 0.5" 1280x960 Microdisplay 1000nits for AR

This Micro display is a 1.3 cm (0.5inch) diagonal, 1280× 960 high resolution micro si-oled display, the brightness is up to 1000cd/m2, mini sized, low power consumption.

OLED Microdisplay 0.5 inch 1280x960 high resolution Microoled display 1000 nits for AR VR

DESCRIPTION

This HGOL337RF is a 0.5 inch high-resolution of 1280x960 OLED MicroDisplay Panel, This Microoled display panel is an silicon-based OLED display based on single crystal silicon backplane. and its pixel circuits and driving IC are integrated on the silicon backplane to get the compact size and very low power consumption. moreover, this microoled screen with high brightness of up into 1000 cd/m2,high PPI(pixel density), a high degree of integration, and small size. and it is potential to be used in some applications as below:

Virtual Reality application (VR), Augmented Reality(AR), Head-mounted displays, Near-Eye displays, Military gunsight, and thermal imager.

It has many advantages, including:

Small size high resolution type 0.5 inch displaymodule

◆ Effective Dots: 1280 x RGB × 960 = 3.69 M dots

◆ Actual Dots including Orbit function: Total dots 1300 x RGB x 980 = 3.82 M dots

◆ Ultra high contrast

◆ Wide color gamut

◆ Fast responsespeed

◆ Thin and light in weight

◆ Power consumption Saving (PS) mode

◆ Scan direction selection, up or down and right or left.

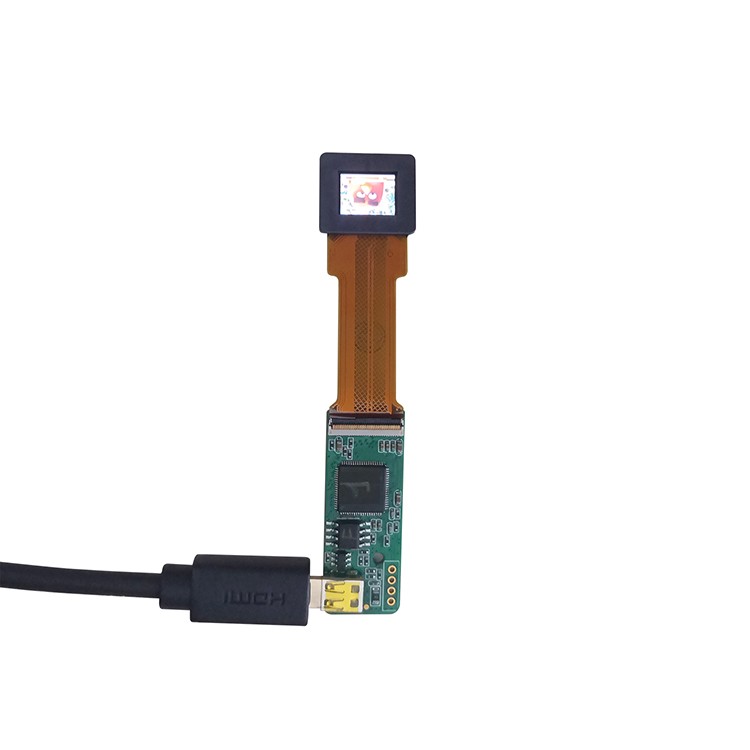

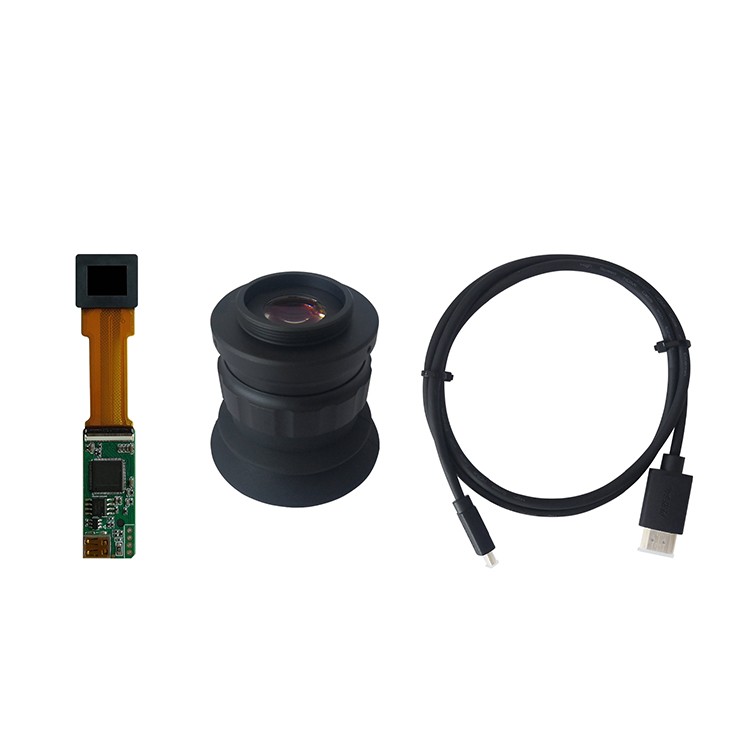

Hicenda Display could provide HDMI controller board and CVBS controller board, It can connect to laptop, PC with 1280x960 resolution at 60 Hz

GENERAL SPECIFICATION

Product model:	HGOL337RF

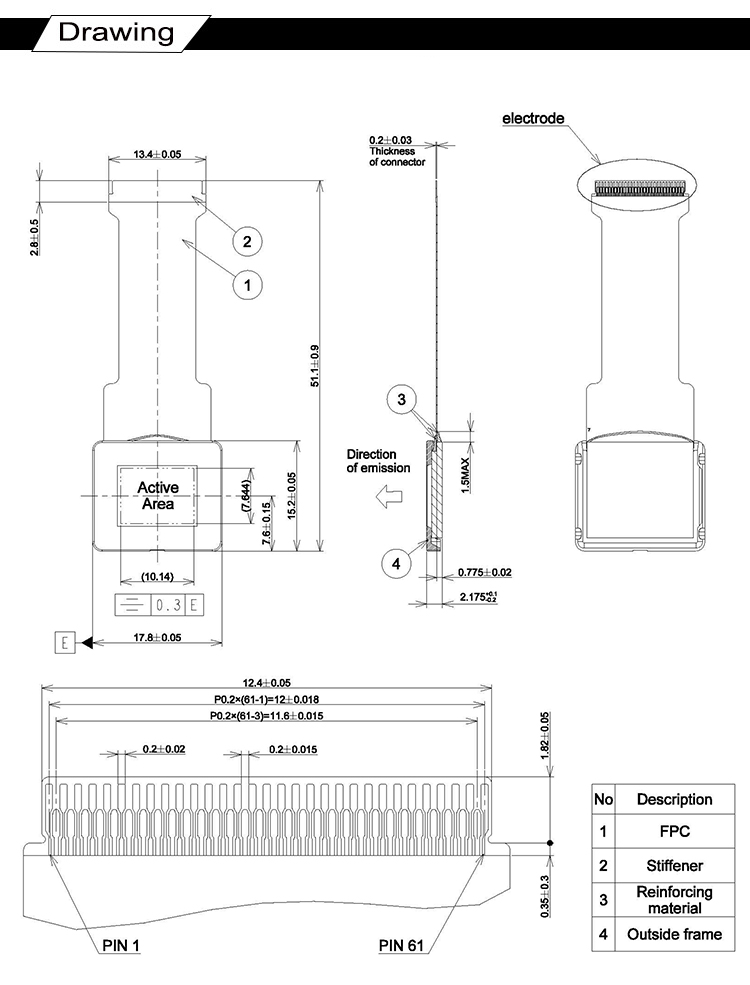

Size:	0.5 inches/10.14(H) × 7.644(V)
Appearance size (mm)	17.8(H) × 15.2(V)

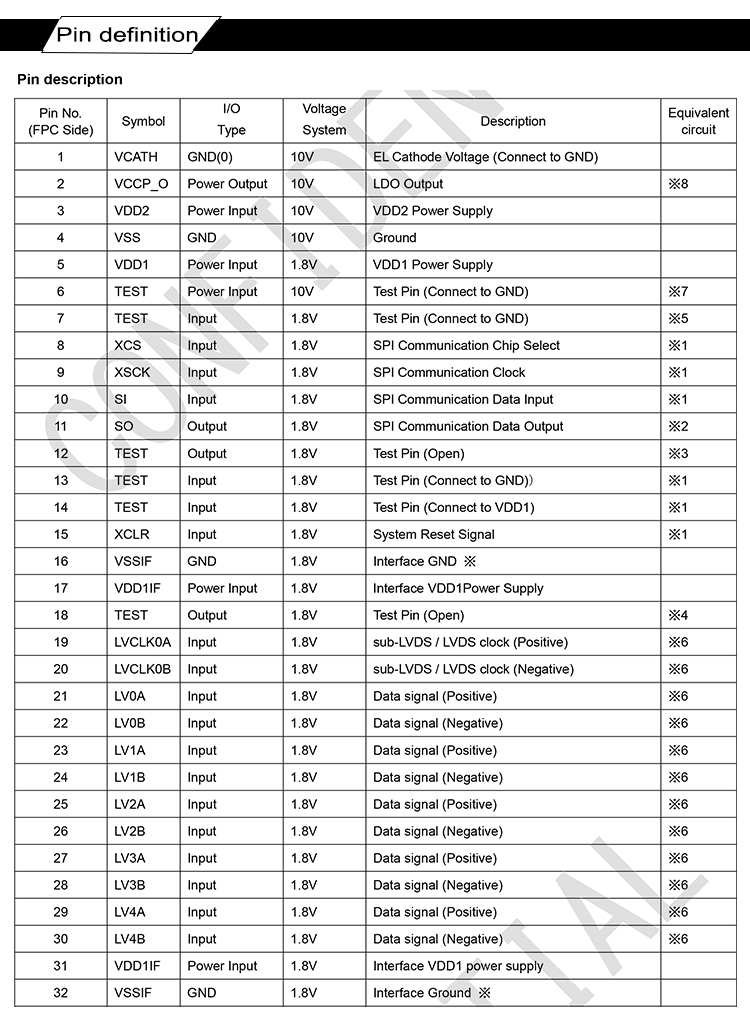

Interface	MIPI
Resolution:	1280X960
Brightness:	1000cd/m² (Max)
Working temperature:	-10 ~ 70 ° C
Storage temperature:	-30 ~ 80 ° C
