Microoled 0.6 inch 800x600 micro display for Military
Microoled 0.6 inch 800x600 micro display for Military
DESCRIPTION
The 0.6-inch Micro OLED display, model HG060SVGA, offers a compact yet highly efficient solution for various applications requiring small form-factor, high-performance displays. Featuring a 640x400 resolution, this display is equipped with MIPI (1 lane) and I²C interfaces for easy integration into embedded systems. The display is available in three different configurations: Color (C), Mono White (W), and Mono Green (G), offering a broad range of applications across different lighting conditions. With luminance levels ranging from 200cd/m² to 10,000cd/m², the HG060SVGA excels in environments requiring both low and high brightness.
The display has a pixel size of 15µm x 15µm, offering a 3255 PPI pixel density for sharp, detailed visuals. The contrast ratio exceeds 10,000:1, ensuring deep blacks and vibrant colors. Additionally, the lifetime of the OLED array is rated at 20,000 hours for all configurations, ensuring long-term reliability for demanding industrial and commercial applications.
The HG060SVGA OLED display is designed to deliver high-quality visuals despite its small size. With a resolution of 800×600 pixels (RGB vertical stripe configuration), it offers a sharp and clear display for compact devices. The active area of the display measures 12.06 mm x 9.06 mm, which ensures a high pixel density while maintaining a manageable physical size for use in wearable devices, small screens, or portable instruments.
One of the defining features of the HG060SVGA display is its brightness range. The display is available in three variants:
Color (C): Typically 200 cd/m²
Mono White (W): Typically 500 cd/m²
Mono Green (G): Extremely high brightness of up to 10,000 cd/m²
These brightness levels make it suitable for use in both low-light environments (such as wearable technology) and high-ambient light environments (such as outdoor industrial applications).
GENERAL SPECIFICATION
| Specification | Value |
|---|---|
| Model No | HG060SVGA |
| Display Size | 0.6 inches |
| Resolution | 800 × 600 (RGB vertical stripe) |
| Active Pixels | 800 × 604 |
| Luminance | 200cd/m² (Color), 500cd/m² (Mono White), 10,000cd/m² (Mono Green) |
| Pixel Size | 15µm × 15µm |
| Pixel Array | RGB Vertical Stripe |
| Active Area | 12.06 mm × 9.06 mm (Diagonal: 0.60") |
| Gray Level | 256 |
| Interface | MIPI (1 lane) + I²C |
| Contrast Ratio | >10,000:1 |
| Life (T90) | 500 hours @ 3000 cd/㎡; 600H@ 6000 cd/㎡; 600H@ 10000 cd/㎡ |
| Operating Temperature | -40℃ to +65℃ |
| Storage Temperature | -55℃ to +90℃ |
| Operating Humidity | ≤85% RH (without condensation) |
| Lifetime | 20,000 hours at specified luminance |
| Net Weight | 1.7 g |

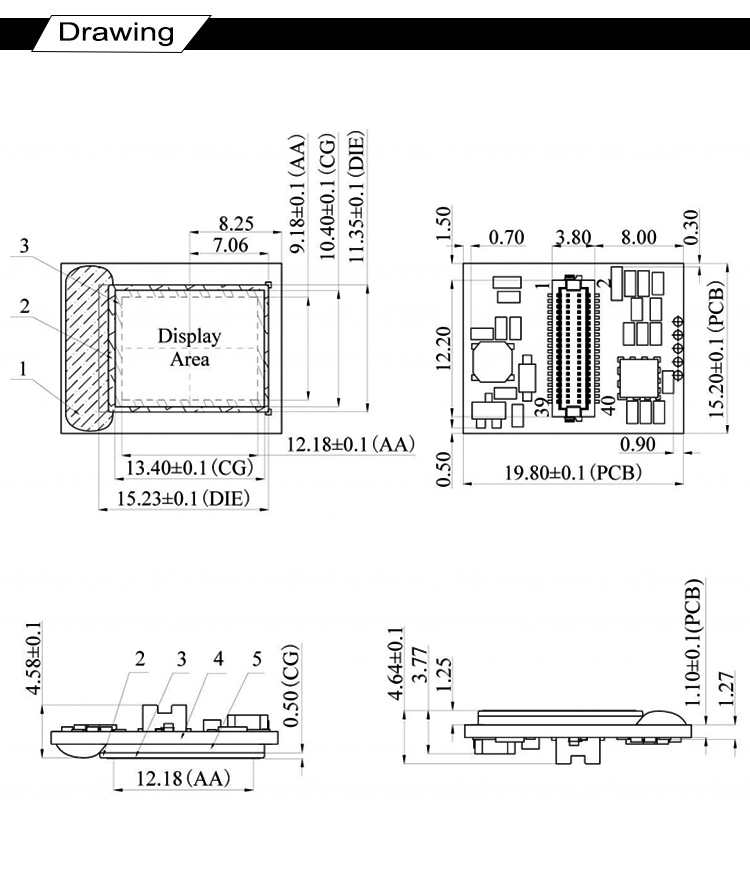

DRAWING

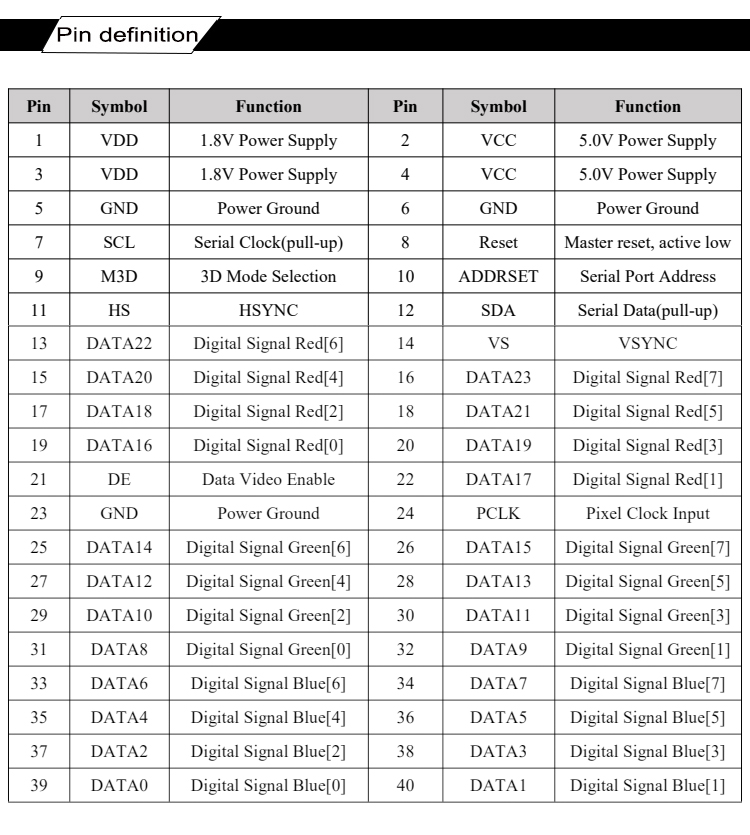

INTERFACE PIN FUNCTION
The HG060SVGA OLED display is built for durability, with a lifetime of up to 20,000 hours at various brightness settings. This ensures a long operational lifespan, whether you are using the Color, Mono White, or Mono Green variants. Its lifespan is critical for applications where continuous performance is required over extended periods, such as wearable devices, industrial equipment, and automotive displays.
The display is engineered to perform under a wide range of conditions, offering operating temperatures from -40℃ to +65℃ and storage temperatures from -55℃ to +90℃. With a humidity tolerance of ≤85% RH (without condensation), the HG060SVGA is designed to maintain its integrity even in harsh environmental conditions, making it suitable for industrial and outdoor applications.
The MIPI interface (1 lane) facilitates high-speed data transfer, allowing the display to achieve smooth refresh rates from 25Hz to 85Hz. This makes it ideal for applications requiring high-speed updates, such as real-time monitoring systems or interactive devices.
In addition to MIPI, the display also supports the I²C interface, enabling efficient and flexible integration into low-power applications. The I²C interface allows for straightforward communication between the display and other devices or processors, making it particularly useful in compact and portable systems.
The compact size and high pixel density make the HG060SVGA display an ideal choice for wearable technologies such as smart glasses and augmented reality (AR) headsets. The high contrast ratio and varied brightness levels ensure excellent performance, whether in indoor, outdoor, or mixed lighting conditions.
For industrial applications, the Mono Green variant, with its ability to reach up to 10,000cd/m², is particularly suitable for environments with high ambient light. The Mono White version, with a brightness of 500cd/m², is perfect for moderate lighting environments. The RGB Color variant can be used for applications that require vivid color displays, such as dashboards, control panels, and other equipment in industries like automotive and healthcare.
The 0.6-inch HG060SVGA Micro OLED display offers a unique combination of compact size, high-resolution output, and excellent durability. With its wide range of luminance options, efficient interfaces, and reliable performance, it is an ideal solution for a variety of demanding applications, including wearables, industrial systems, and automotive displays. Whether used in consumer electronics, AR devices, or outdoor equipment, this display provides an exceptional balance of visual clarity and longevity, making it an indispensable choice for developers and engineers.
