2000nits Micro oled 0.71 inch 1920x1080 Microdisplay

2000nits Microoled 1080P 0.71 inch FHD 1920x1080 OLED Micro display for AR VR Headsets

DESCRIPTION

HICENDA'S B071FH8P01A0 is a 0.71 inch, FHD high resolution of (1920x1080) pixels, this micro amoled screen is a active matrix color OLED panel module based on single crystal silicon backplane.

The pixel circuits and driving IC of this microscreen are integrated on the silicon backplane to get the small size and very low power consumption.

It features high resolution, fast response and high refresh rates, and can be applied in a variety of micro display scenarios. Its applications possible is AR, VR, EVF,FPV,Kinetoscopes,Head mounted display, near-eye display etc.

This 0.71 inch OLED is Micro-OLED. Micro-OLED displays are silicon-based OLED display that use a monocrystalline silicon wafer as the actively driven backplane, so it is easier to achievve high PPI(pixel density),

a high degree of integration, and small size.

Fast response

LCD display products are designed with fast response LCDs, with a delay less than 5ms, reducing the image ghosting and feelings of dizziness.

High resolution

The resolution of LCD products can reach in excess of 1000, and the resolution of PPI of Micro OLED products can reach in excess of 5000, with exquisite picture quality and improved screen window.

High refresh rate

The display refresh rate can reach 90Hz/120Hz, reducing lag and ensuring a smooth viewing and gaming experience.

GENERAL SPECIFICATION

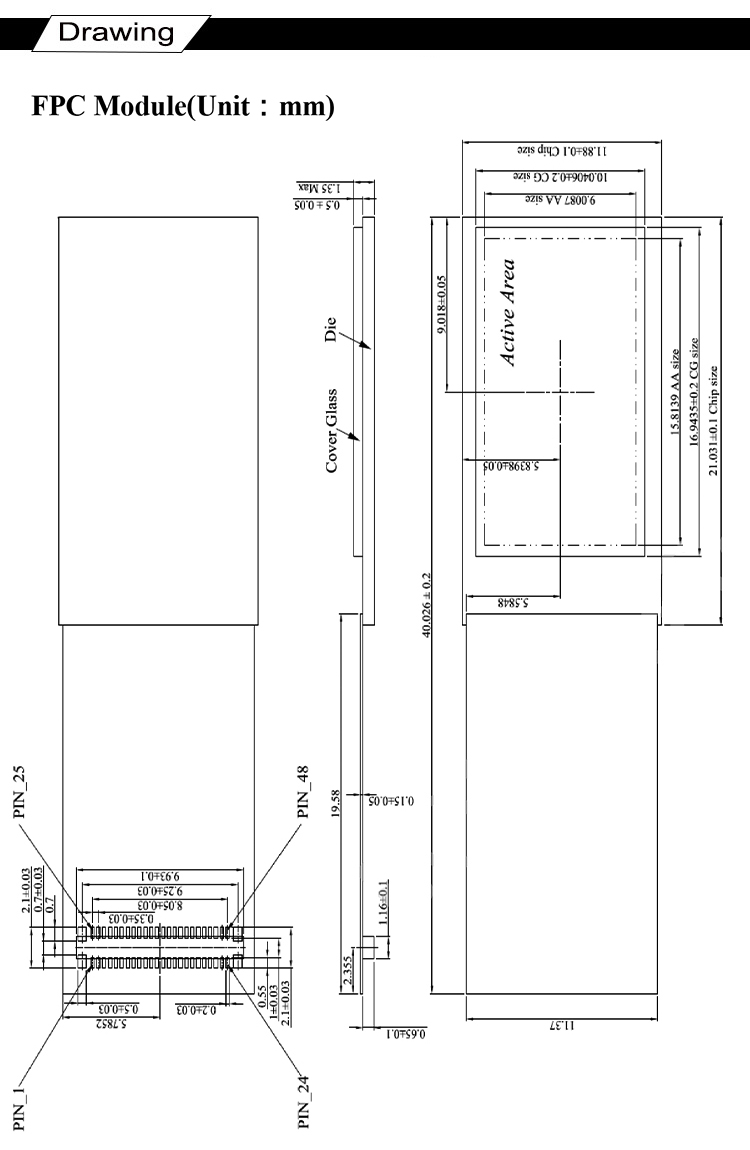

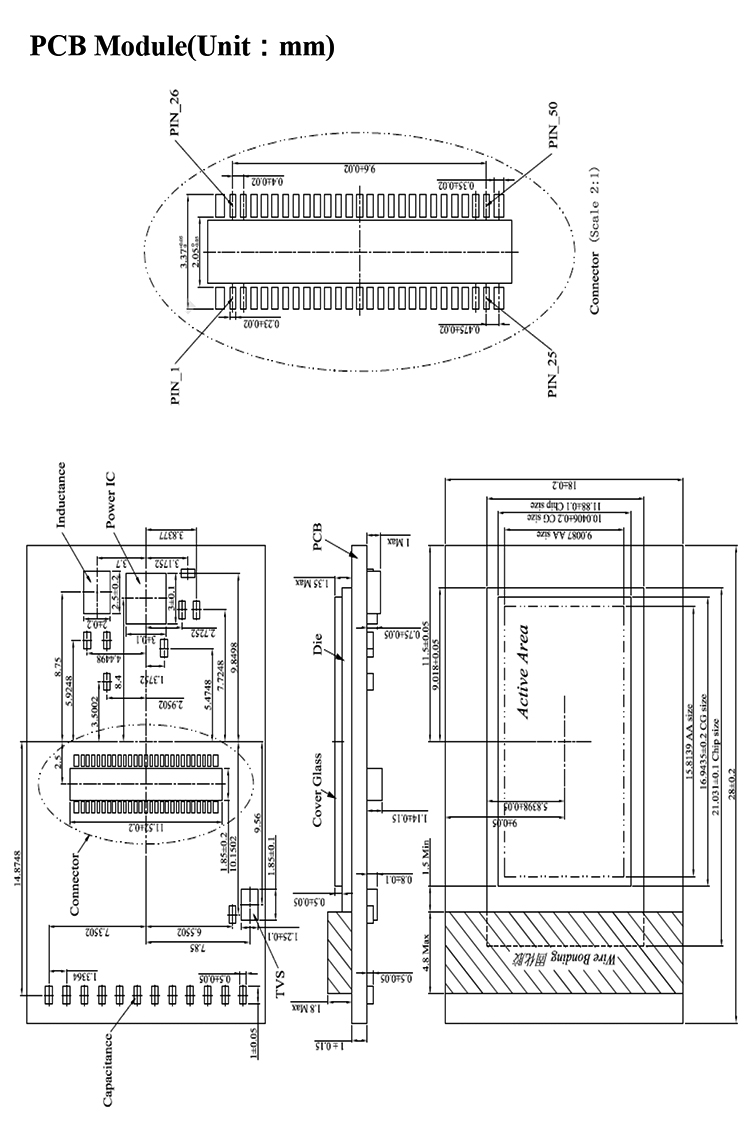

DRAWING

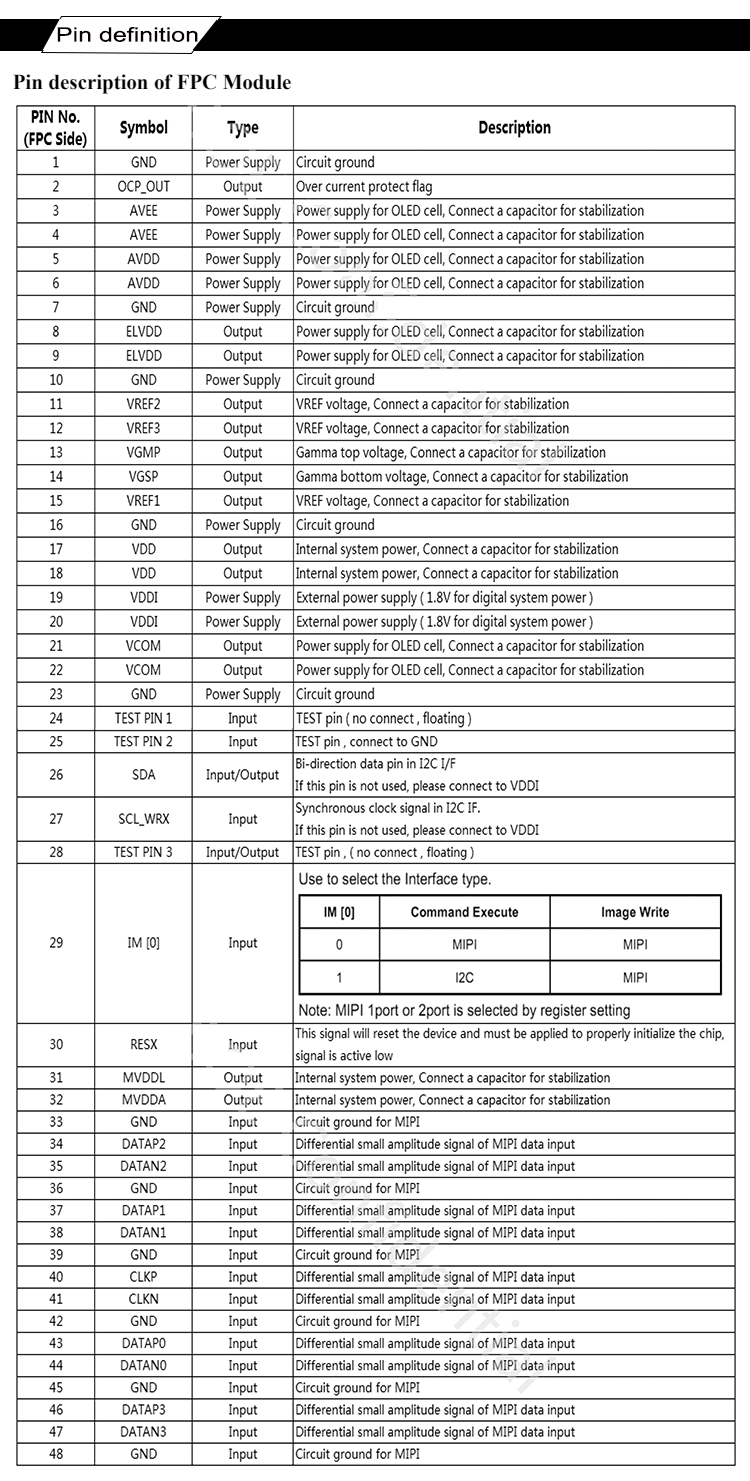

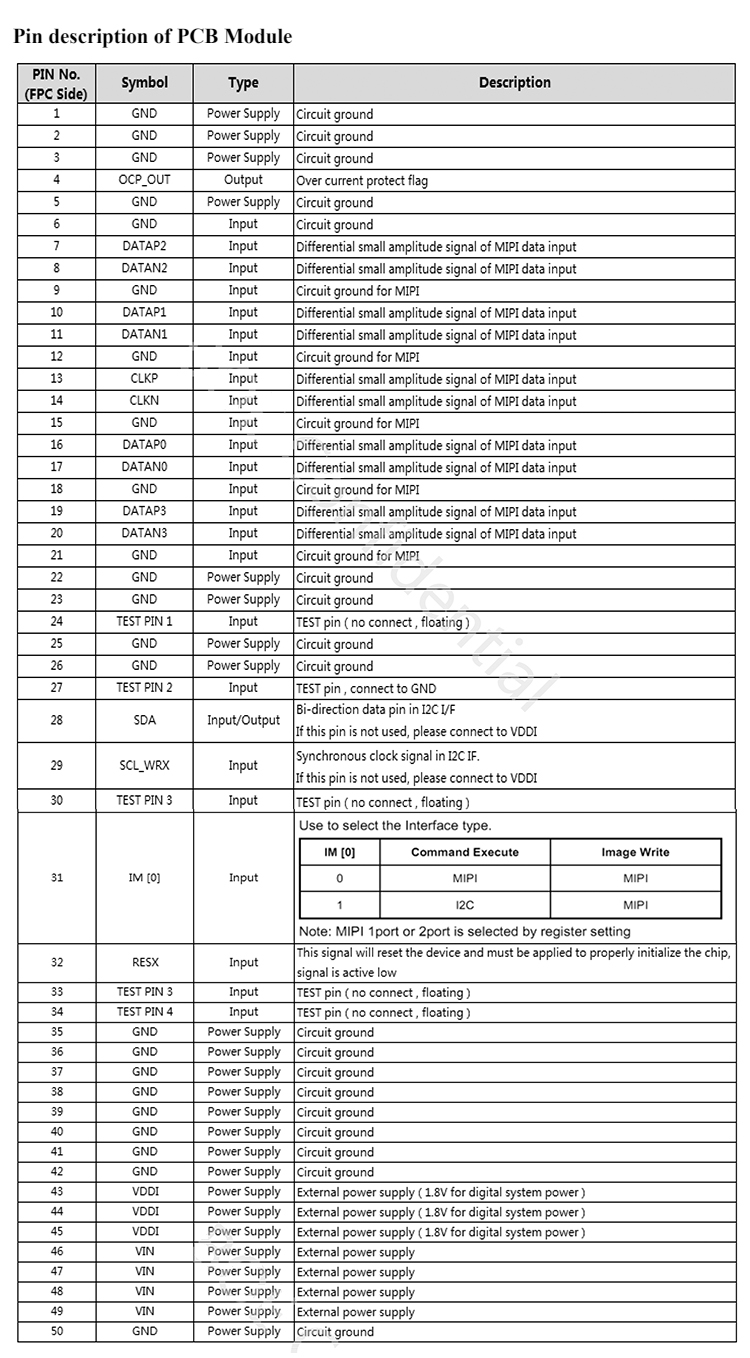

INTERFACE PIN FUNCTION
