0.71" OLED Microdisplay 1080P 1920x1080 for AR headsets

0.71" OLED Microdisplay 1080P 1920x1080 for AR headsets

DESCRIPTION

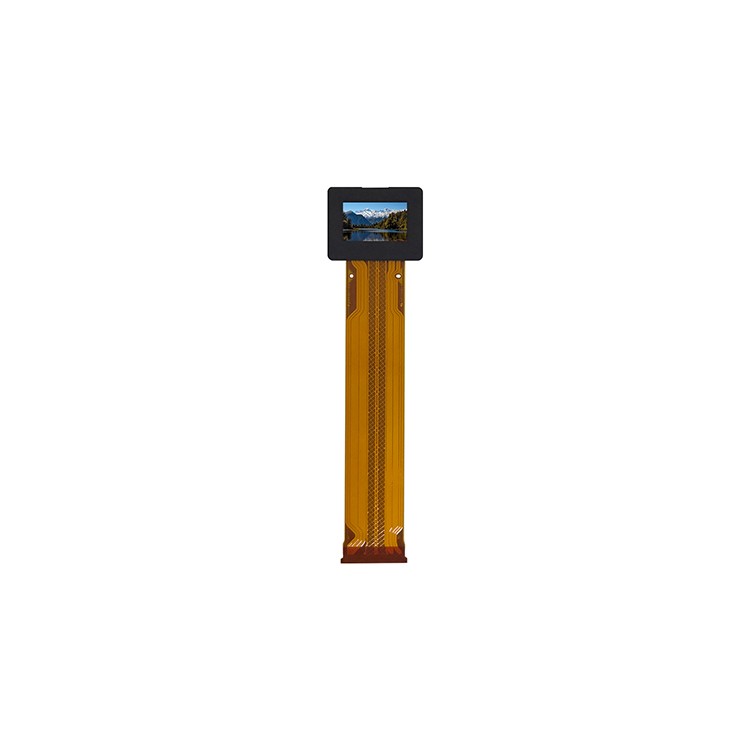

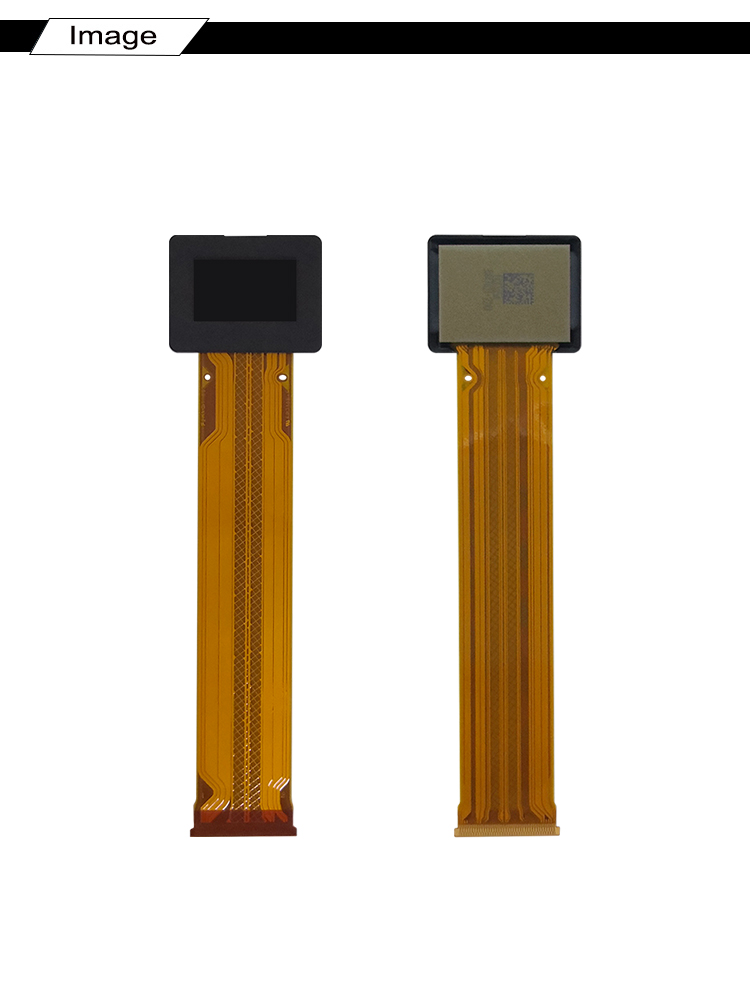

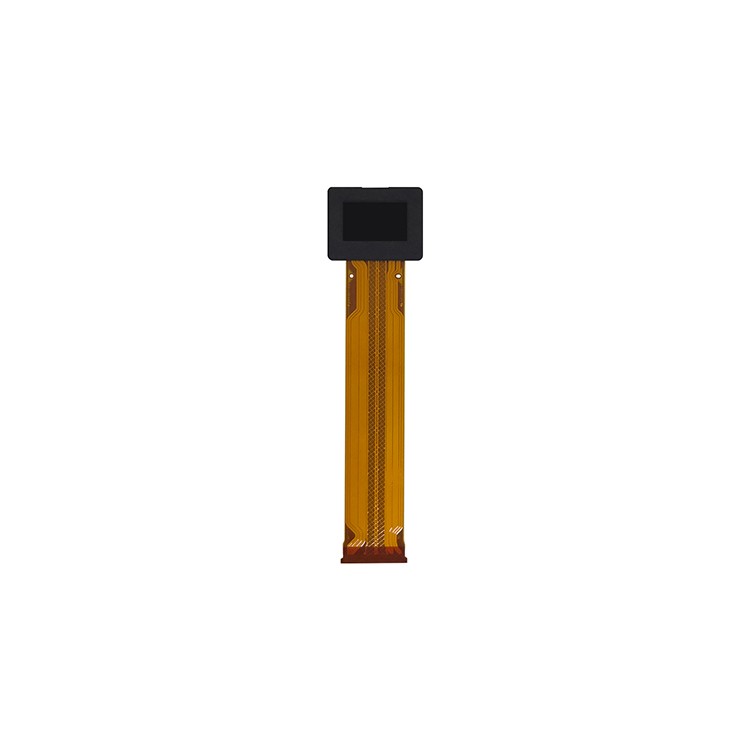

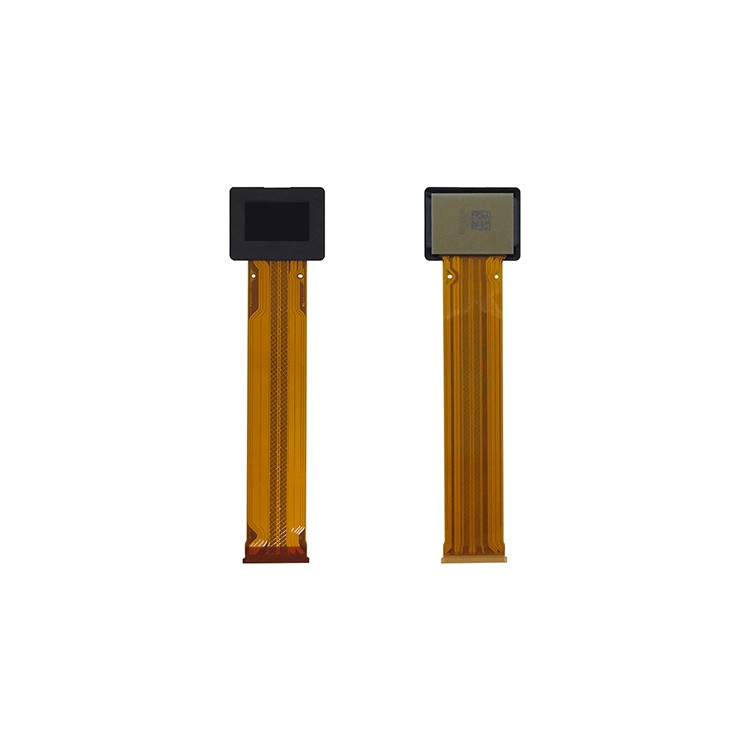

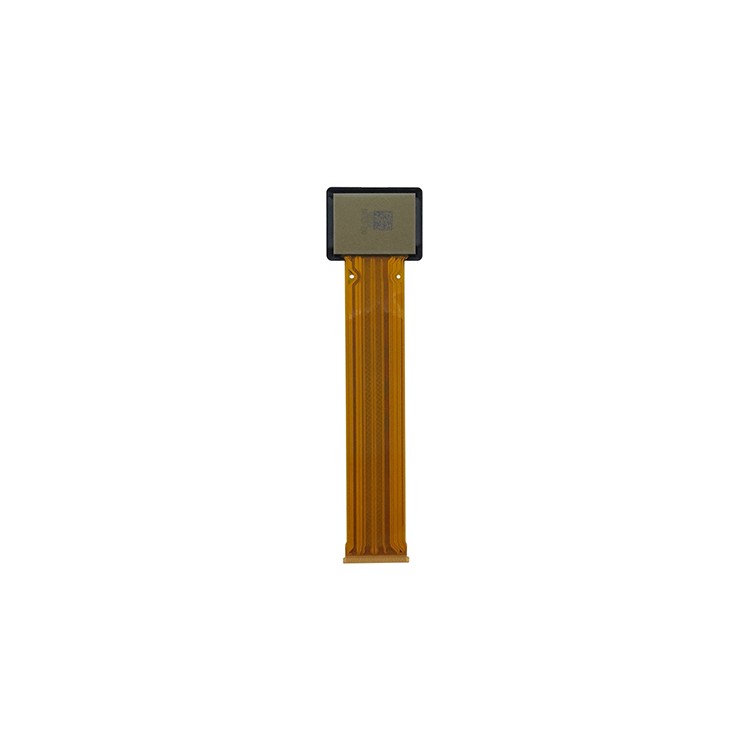

This Microoled display is a 0.71 inch, FHD 1080P High-resolution of 1920 (RGB)x1080 PIXELS, active matrix color OLED panel module based on single crystal silicon backplane. The pixel circuits and driving IC

are combinated on the silicon backplane to reach the micro size and extreme low power consumption.

This 0.71 inch OLED panel is Micro-OLED. MicroOLED displays are silicon-based OLED display that use a monocrystalline silicon wafer as the actively driven backplane, so it is easier to

acquire a high PPI (pixel density), a high degree of integration, and small size.

Hicenda MicroDisplay could be provided HDMI controller board, It can connect to laptop, PC with 1920X1080 resolution at 60 Hz

Product Application:

Virtual Reality Application(AR/VR)

Head-mounted displays(HMD)

Near-Eye Displays etc.

Viewfinders

Very small monitors

Near-Eye Displays etc.

GENERAL SPECIFICATION

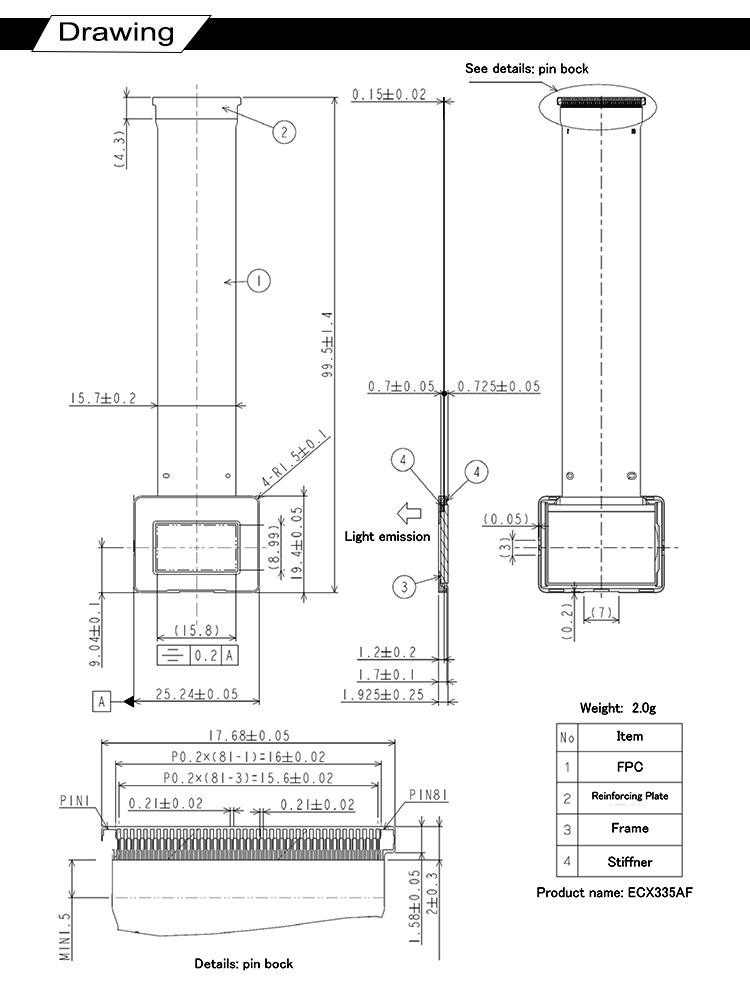

DRAWING

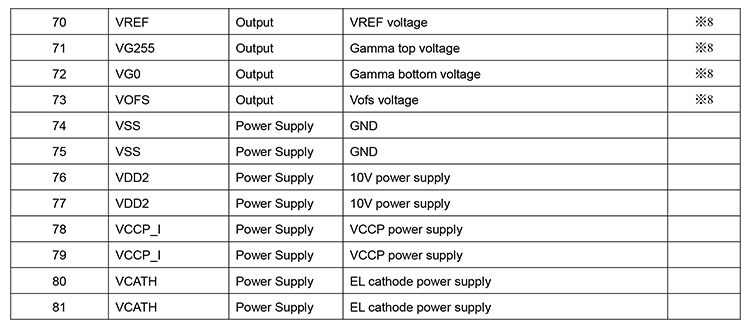

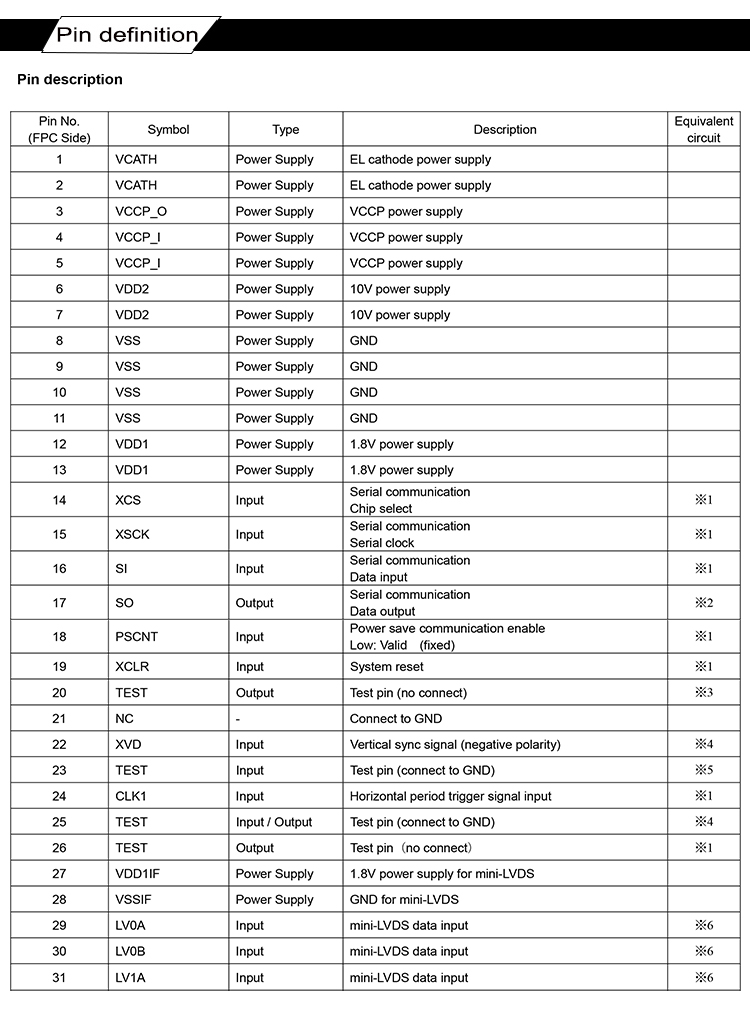

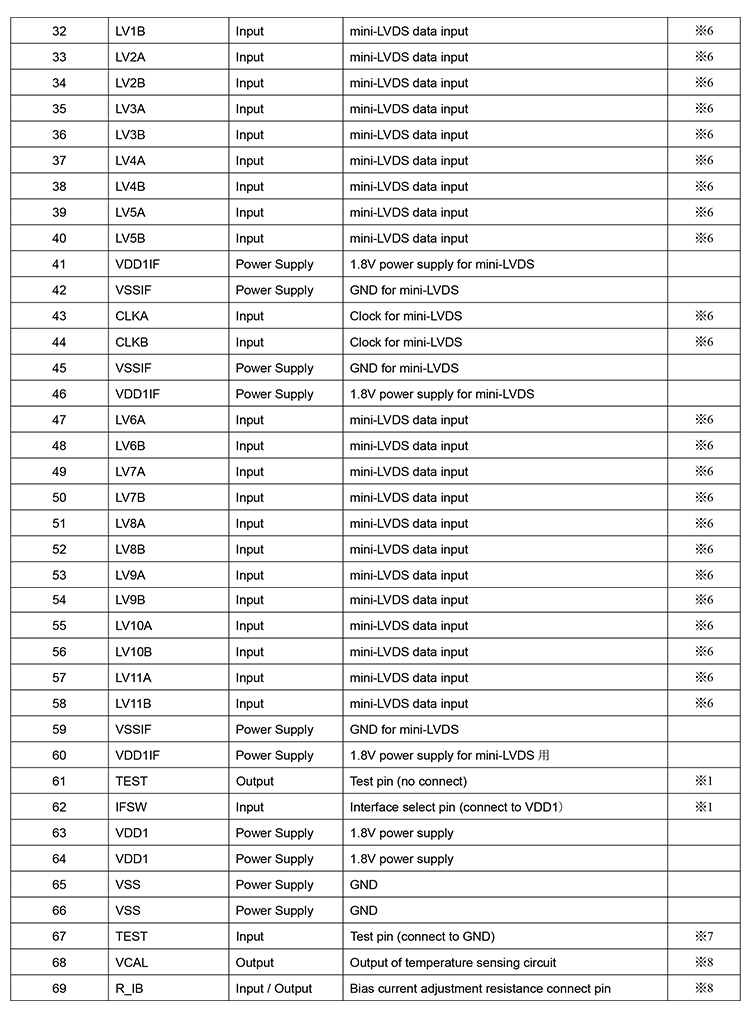

INTERFACE PIN FUNCTION
