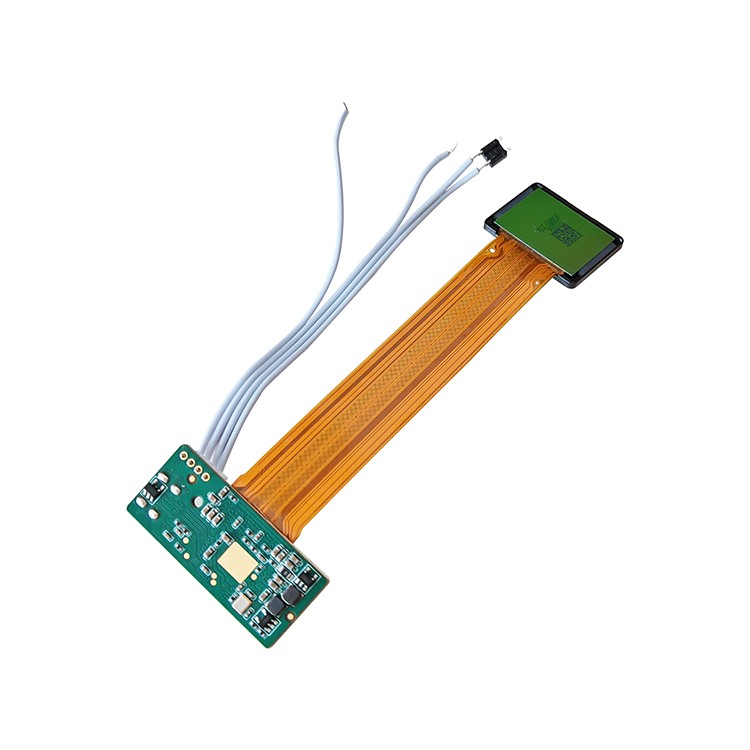

Micro AR Display 0.71 inch 1080P 1920X1080 Micro OLED Screen

The Micro AR Display OL71AF offers an advanced 0.71-inch 1080P resolution Micro OLED screen designed for applications requiring high-definition visual output in compact form factors. With a resolution of 1920 x 1080 pixels, this display ensures exceptional image quality and color accuracy. The OLED screen features a robust contrast ratio of 100,000:1 and a peak brightness of 500 nits, making it ideal for augmented reality (AR) and other demanding applications

1080P Micro oled screen 0.71 inch 1920x1080 high resolution microdisplay


The Micro AR Display OL71AF offers an advanced 0.71-inch 1080P resolution Micro OLED screen designed for applications requiring high-definition visual output in compact form factors. With a resolution of 1920 x 1080 pixels, this display ensures exceptional image quality and color accuracy. The OLED screen features a robust contrast ratio of 100,000:1 and a peak brightness of 500 nits, making it ideal for augmented reality (AR) and other demanding applications. The display operates with a sub-LVDS interface and supports a 60Hz driving frequency. Optimized for low power consumption ranging from 0.4 to 550mW, the device is capable of functioning in various environmental conditions, with an operating temperature range between 0°C and 70°C. This article explores the specifications, advantages, and potential applications of the OL71AF.


Key Features of the OL71AF Micro AR Display

The OL71AF Micro AR Display boasts a combination of cutting-edge specifications that position it as a top-tier solution for a range of innovative applications, from AR headsets to miniaturized display systems.

Compact Size with High-Resolution Output

One of the most striking features of the OL71AF is its compact size of 0.71 inches coupled with a high resolution of 1920 x 1080 pixels. This enables users to experience full HD visual quality in a miniature form factor, essential for portable AR and other wearable technology applications. The active area of the display measures 15.8mm x 8.99mm, offering an optimal viewing experience within the tight constraints of small form-factor devices.

AMOLED Display Technology

Utilizing AMOLED (Active Matrix Organic Light Emitting Diode) technology, the OL71AF delivers superior color vibrancy and sharpness, making it suitable for both consumer and industrial-grade AR devices. AMOLED's self-emissive nature contributes to exceptional contrast levels and deep blacks, which enhances the overall visual experience, particularly for high-performance AR applications.

Outstanding Brightness and Contrast

With a maximum brightness of 500 nits, the OL71AF ensures clear visibility even under relatively bright ambient lighting conditions. Its 100,000:1 contrast ratio enables the display to produce deep blacks and vivid colors, enhancing the clarity of images, even in highly demanding scenarios where visual detail is crucial.



Technical Specifications Overview

specifications for the Micro AR Display OL71AF:


Specification                                                              Value
Model No.OL71AF
Display Size0.71 inches
Resolution1920 x 1080 RGB
Outline Dimension25.24 x 19.40 x 1.925 mm (before bending)
Active Area15.8 x 8.99 mm (0.7" diagonal)
Driving Frequency60Hz
InterfaceSub-LVDS
Display ModeAMOLED
Max Brightness500 nits
Contrast Ratio100,000:1

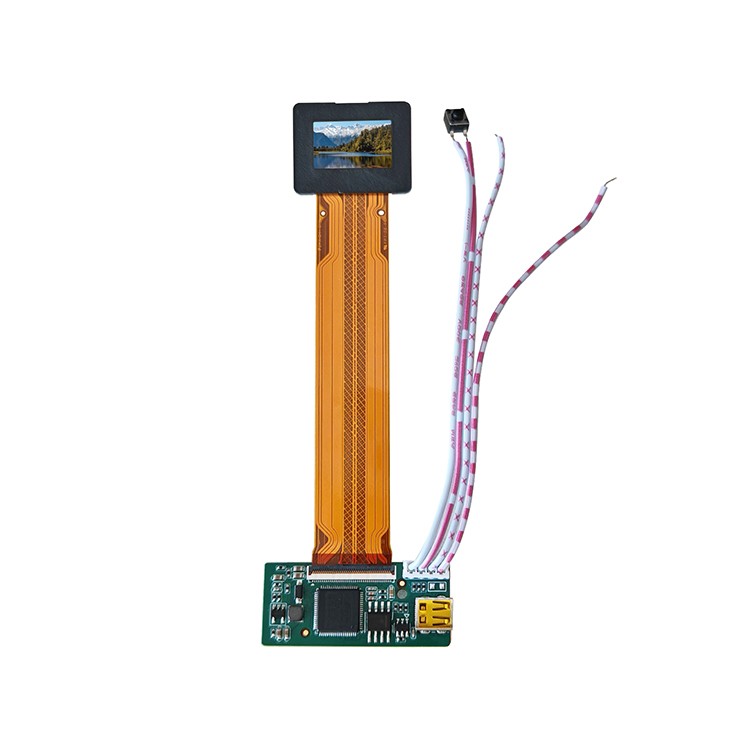

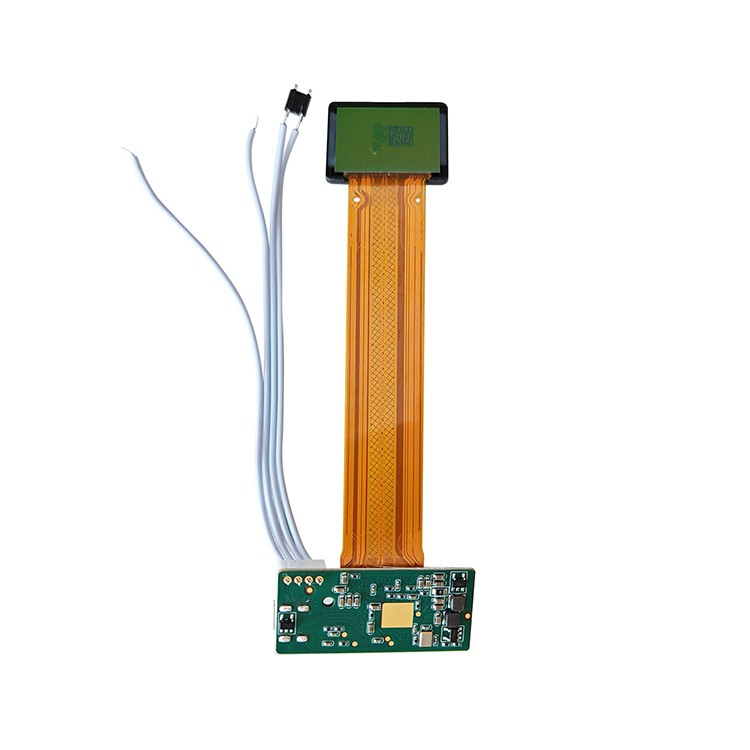

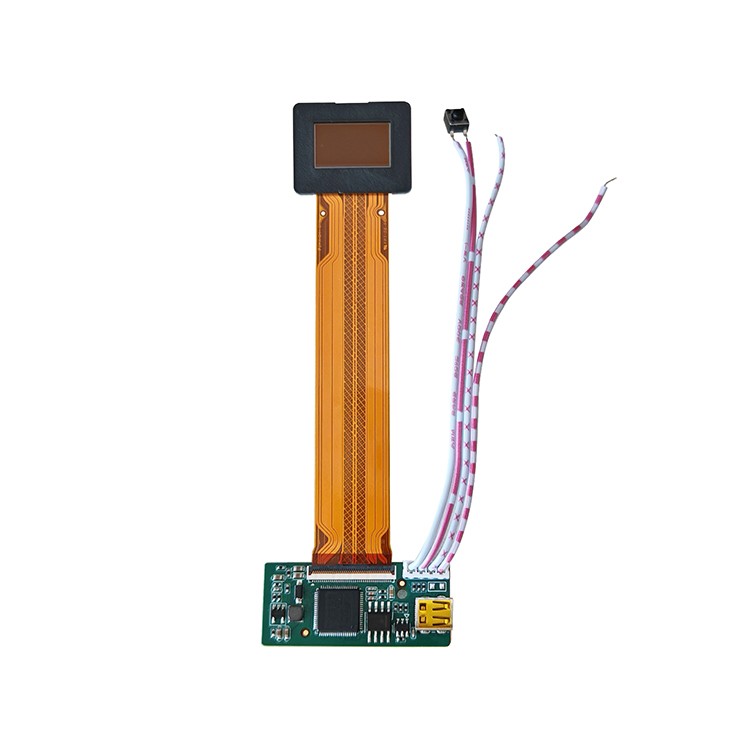

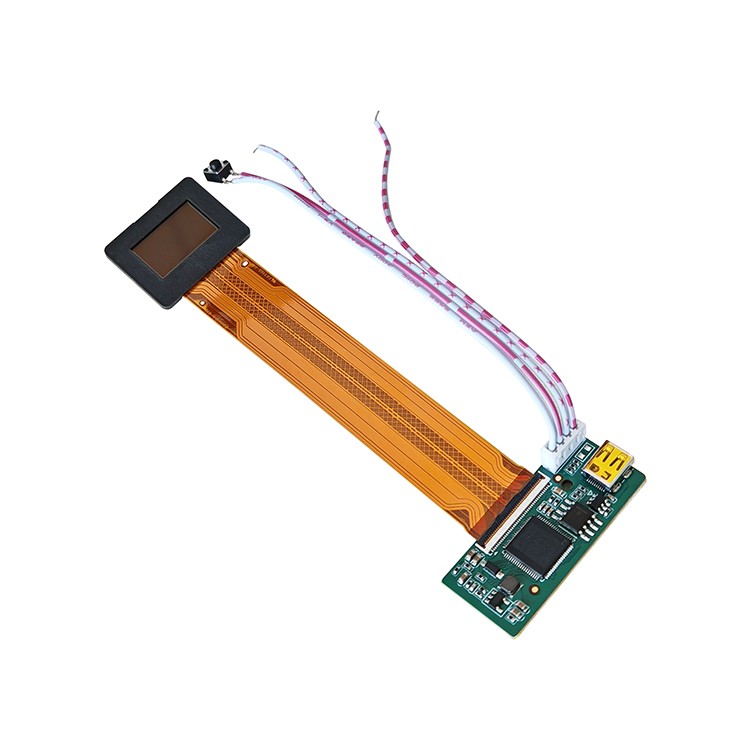

Driver BoardWith HDMI Board
Power Consumption0.4 to 550 mW
Operating Temperature0°C to 70°C
Storage Temperature-30°C to 80°C



Power Efficiency and Operating Conditions

In addition to its impressive performance, the OL71AF display operates with minimal power consumption, ranging from 0.4 to 550mW, making it ideal for battery-powered applications. This low energy demand is particularly advantageous in wearable devices, where power efficiency is crucial to extending battery life. The display also operates reliably across a wide temperature range, from 0°C to 70°C in active conditions, and can be safely stored between -30°C and 80°C.



Practical Applications

The OL71AF Micro AR Display is designed with versatility in mind. Its high resolution, compact size, and energy efficiency make it a compelling choice for a variety of fields, including but not limited to:

Augmented Reality Devices

The OL71AF excels in applications where augmented reality is required, such as AR glasses and headsets. Its compact size and superior resolution make it perfect for projects that need to integrate displays into small, lightweight form factors while maintaining image clarity.

Wearable Technology

Beyond AR, the OL71AF is also suitable for integration into a range of wearable technology, such as smartwatches, fitness trackers, and even medical devices. The vibrant display combined with low power consumption is ideal for use in products that require frequent operation without sacrificing battery life.

Industrial Applications

With its robust contrast and high resolution, the OL71AF is also well-suited for industrial applications such as machine interfaces, heads-up displays, and portable diagnostic tools, where reliability and image quality are paramount.



 A Leap Forward in Micro AR Display Technology

The Micro AR Display OL71AF offers an exciting blend of compact design, high performance, and energy efficiency. Whether used for augmented reality, wearable technology, or industrial applications, this display pushes the boundaries of what is possible in miniature display technology. With its impressive specifications, including AMOLED display technology, 500 nits brightness, and 100,000:1 contrast ratio, the OL71AF is set to play a pivotal role in the evolution of high-quality, power-efficient display systems.

This display represents a significant milestone in micro-display innovation, opening up new possibilities for next-generation devices. As applications continue to evolve, the OL71AF will undoubtedly remain at the forefront, powering a wide array of advanced technologies.

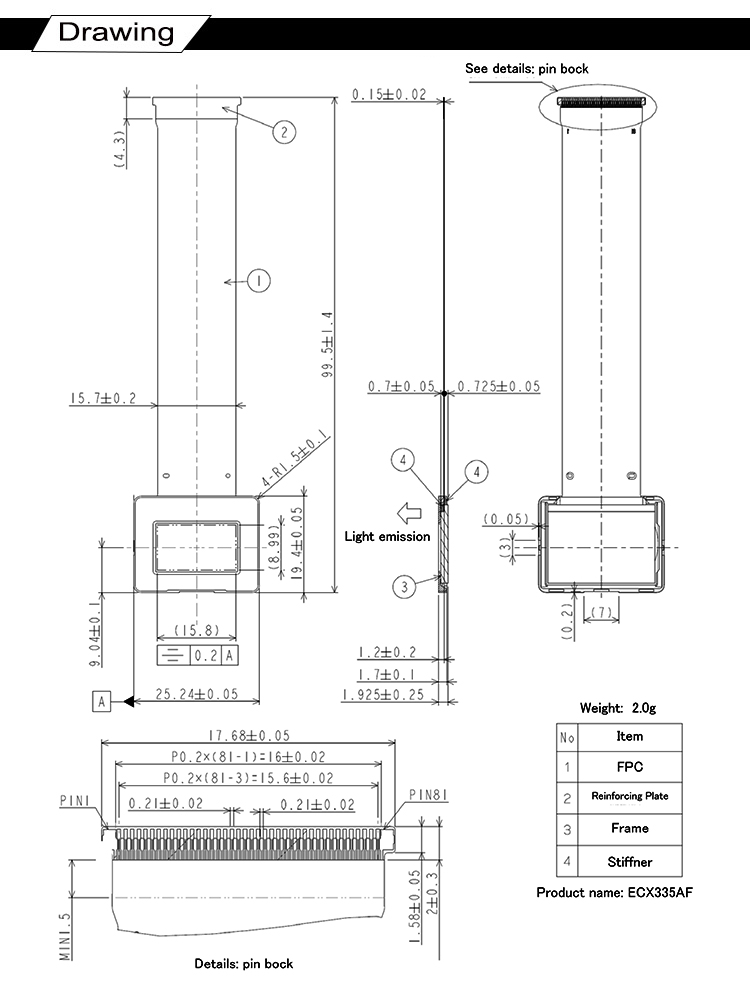

DRAWING

sony micro oled display 1920x1080.jpg

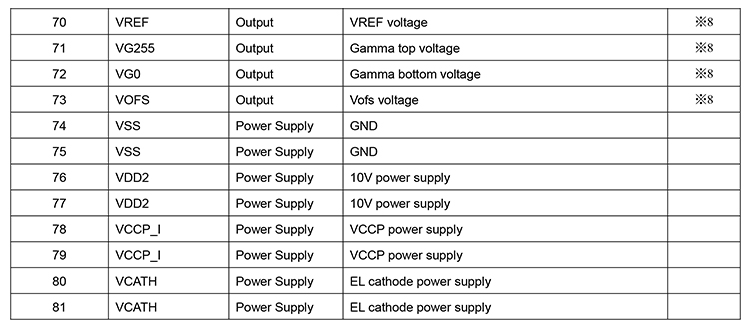

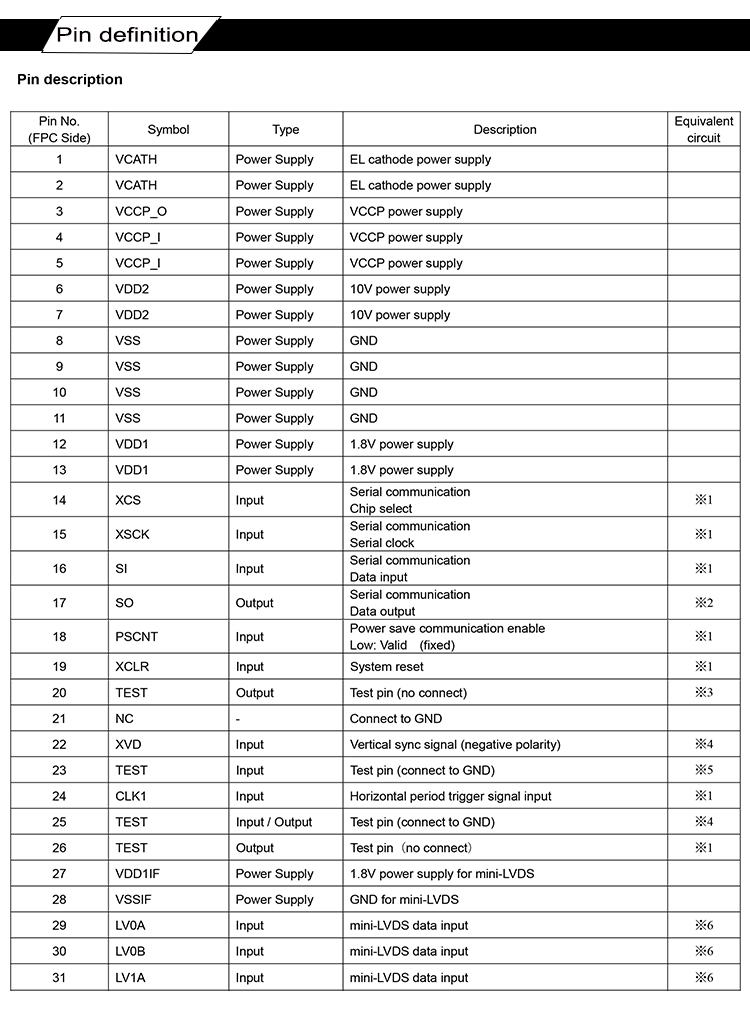

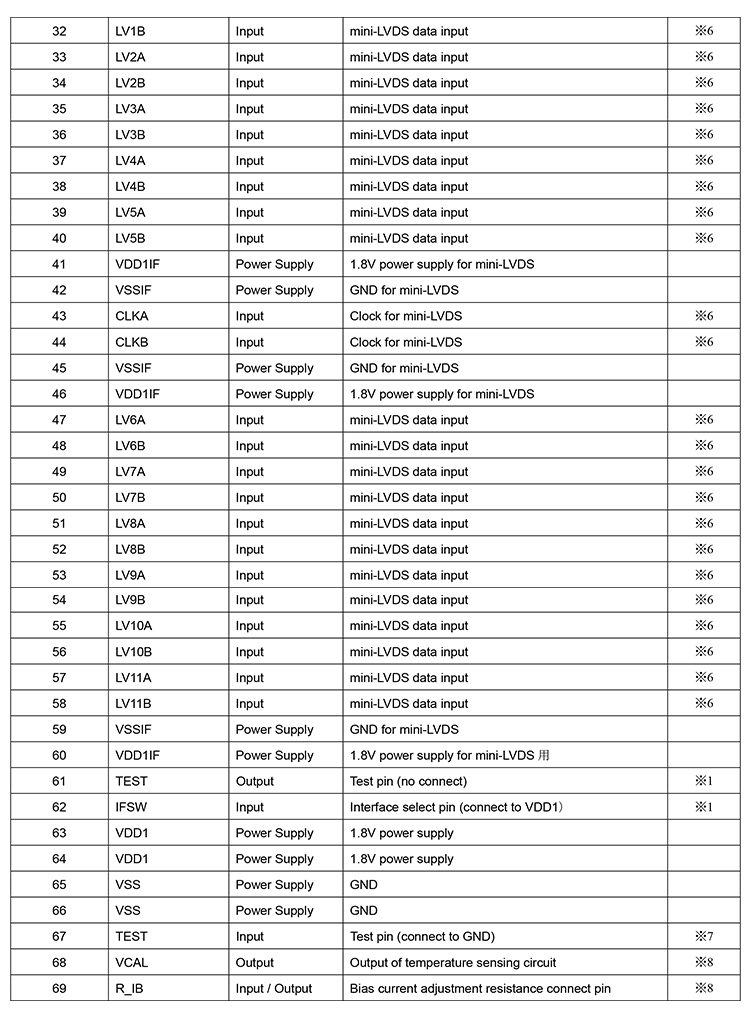

INTERFACE PIN FUNCTION

0.71 inch micro oled screen.jpgmicrodisplay 1920x1080.jpgoled microdisplay 1920x1080.jpgOLED Micro Screen 1920x1080.jpg
