This Micro oled display is a 1.8 cm (type 0.71) diagonal, 1920(RGB) × 1080 dots active matrix color OLED panel module, with diverse features of high-resolution, high brightness up 500 cd/m2, mini sized, low power cunsumption, which is applied for filds in AR VR devices.

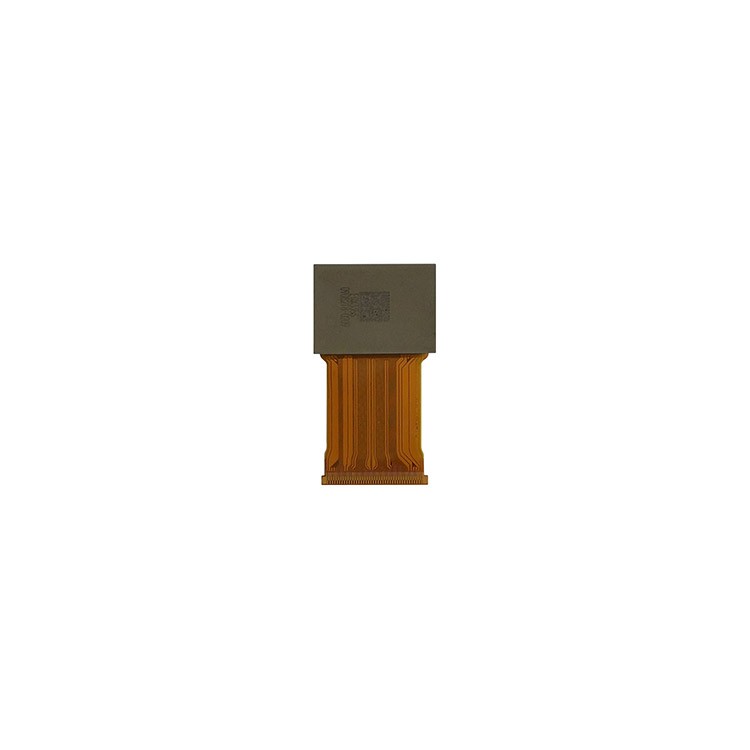

3000nits Microdisplay 1080P 0.71 inch FHD 1920x1080 OLED Micro display for HMD AR VR Headsets
DESCRIPTION
The 0.71 inch micro si-OLED 3000 nits 1080P FHD 1920×1080 is a high-quality, with technologically advanced display solution that caters to a myriad of applications. this MicroOLED is an advanced screen technology with key features that offer an unparalleled virtual reality experience to its users.
With a FHD resolution of 1920×1080 and max up 3000 nits of luminance, this Micro Silicon-based OLED is set to revolutionize the landscape of VR(Augmented reality), AR(virtual reality), and other next-generation smart wearable displays.

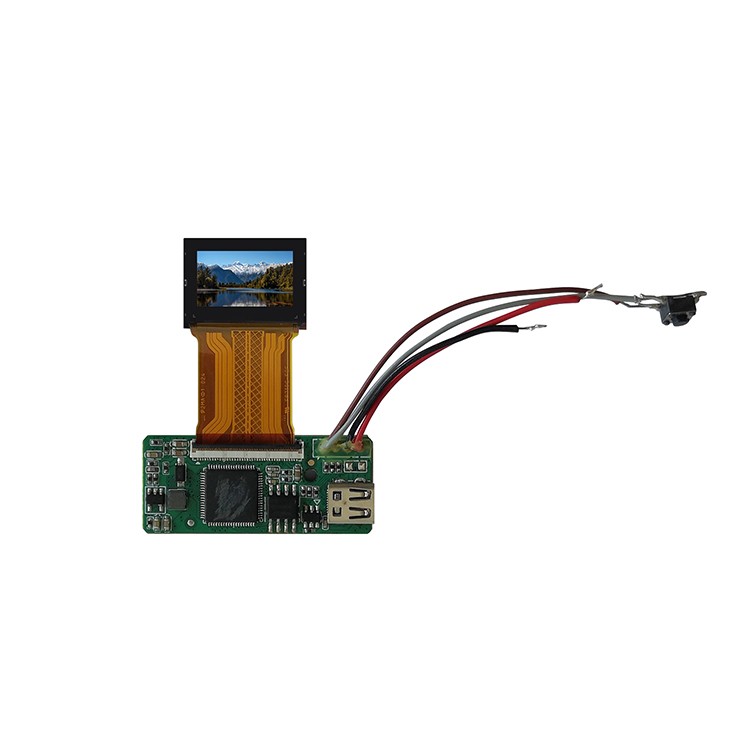

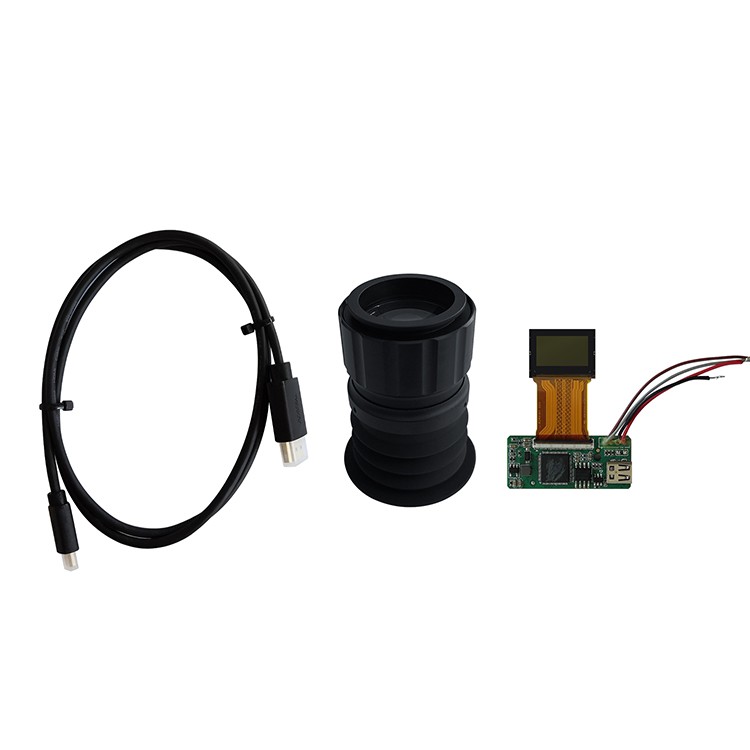

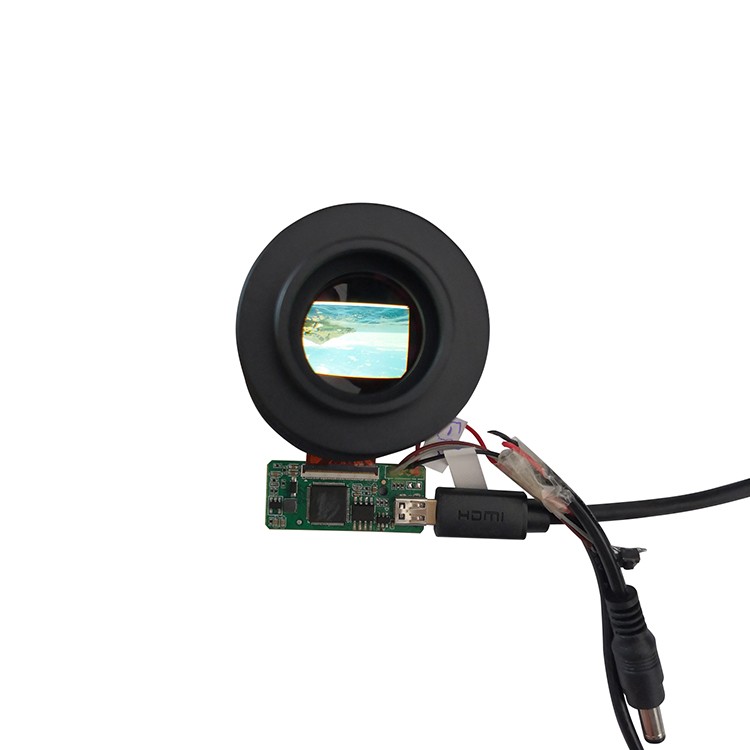

Hicenda Display could provide HDMI controller board, It can connect to laptop, PC with 1920X1080 resolution at 60 Hz
0.71 inch Micro OLED display Features:
Exceptional Visual Performance
With a pixel density of 3135 PPI, this 0.71 inches Micro OLED screen 1920×1080 FHD display ensures that images and text appear sharp and vibrant, captivating the viewer’s attention.
The high contrast ratio of 100000:1 (Typ.) further enhances the visual experience, delivering deep blacks and vibrant colors for a truly immersive display.
GENERAL SPECIFICATION
| Product model: | HGECX335SN |
| Size: | 0.71 inches |
Appearance size (mm) | 10.783mm x 6.065mm / 0.71'' diagonal |
| Interface | LVDS |
| Resolution: | 1920 * 1080 |
| Brightness: | 3000cd/m² Max |
| Working temperature: | -20 ~ 70 ° C |
| Storage temperature: | -40 ~ 80 ° C |

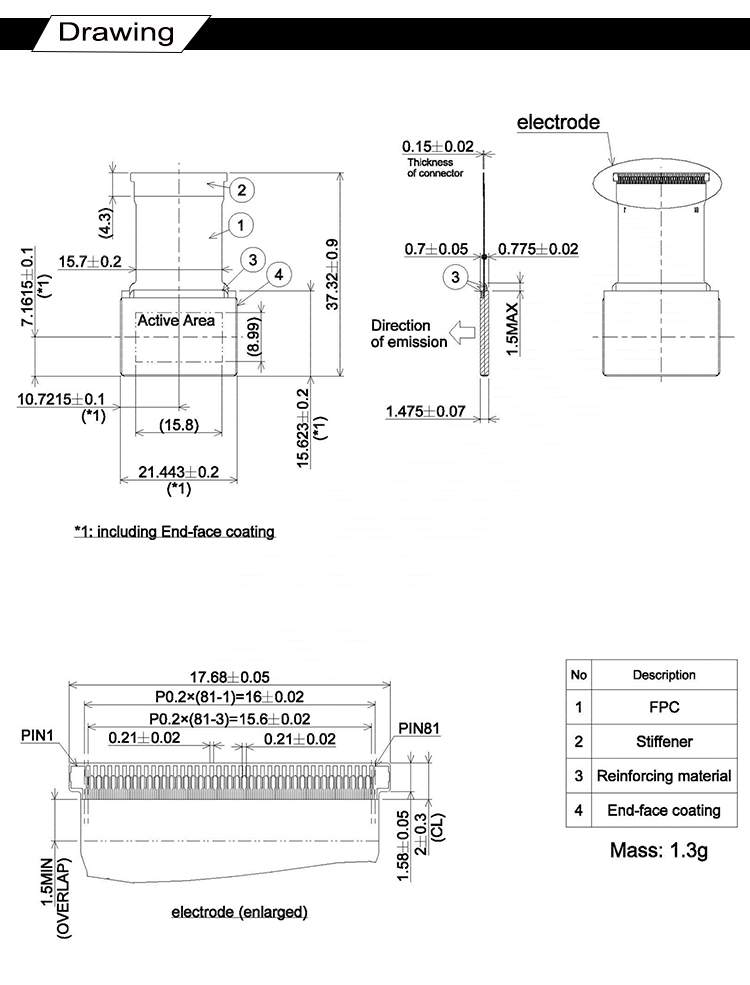

DRAWING

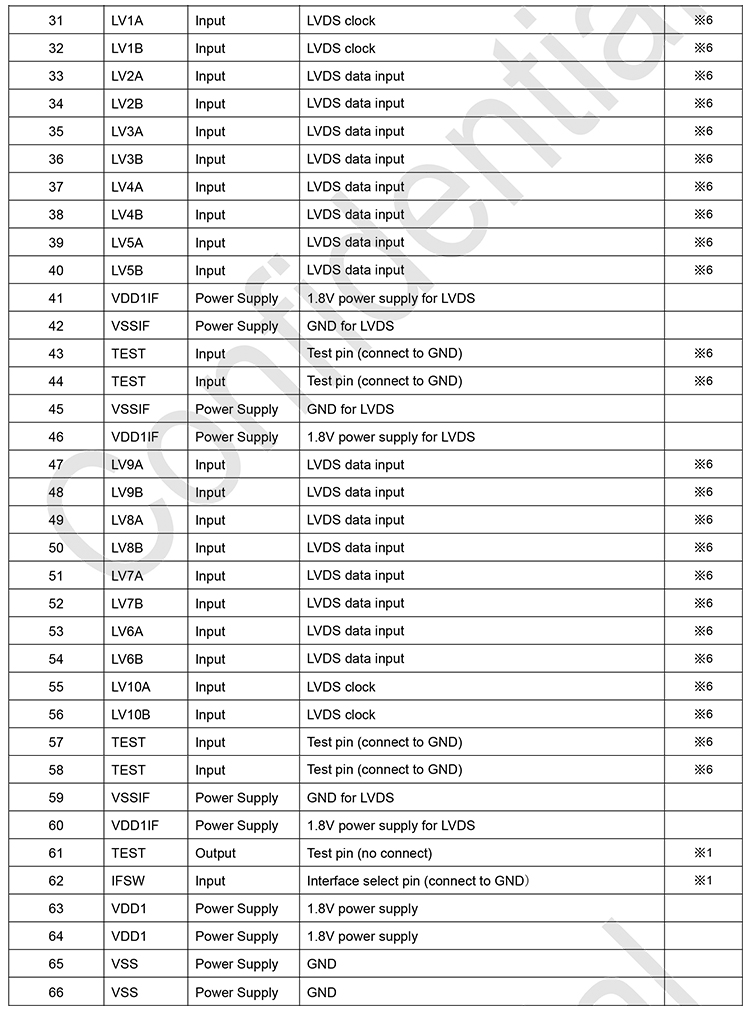

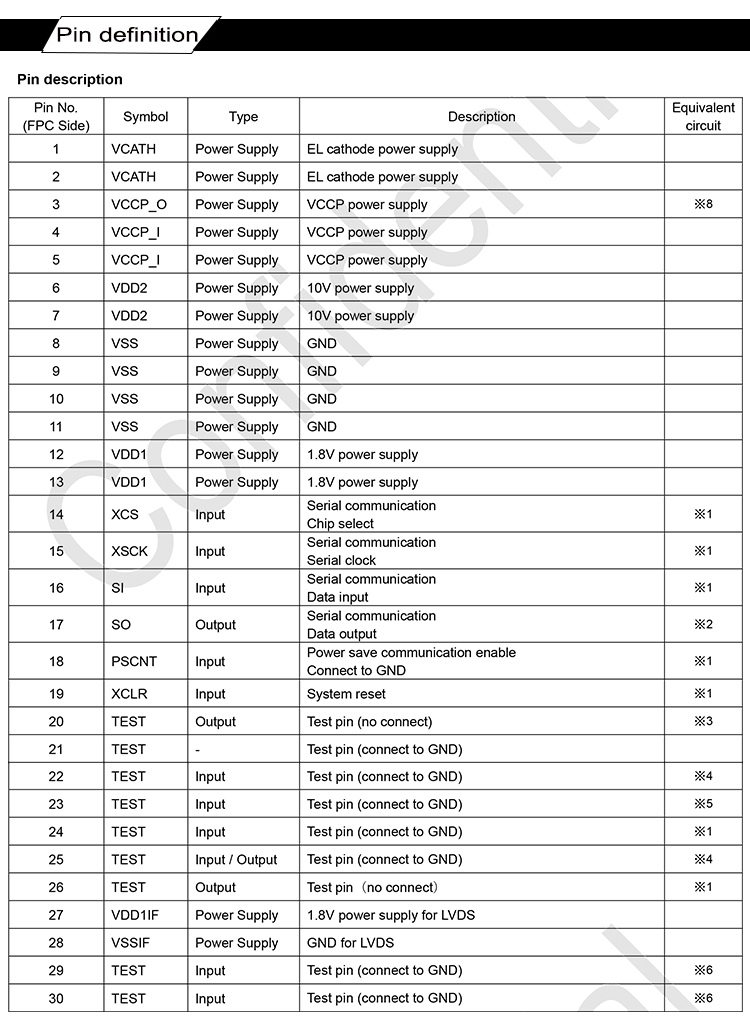

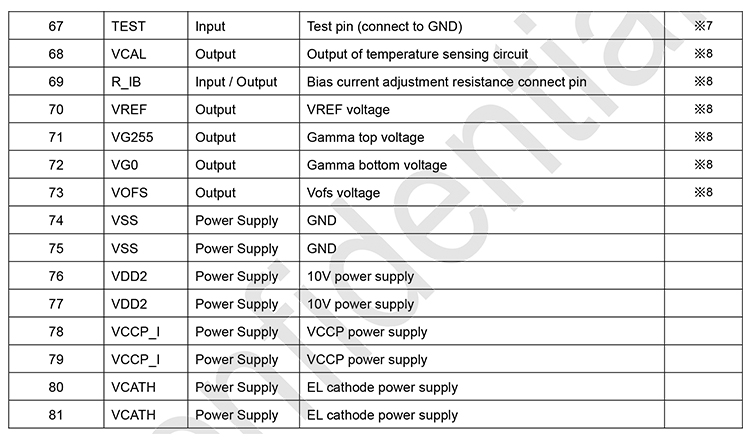

INTERFACE PIN FUNCTION
