This Micro oled display is a 1.8 cm (type 0.71) diagonal, 1920(RGB) × 1080 dots active matrix color OLED panel module, with diverse features of high-resolution, high brightness up 500 cd/m2, mini sized, low power cunsumption, which is applied for filds in AR VR devices.
3000nits high-brightness Microdisplay 1080P 0.71 inch 1920x1080 OLED Micro display for AR VR Headsets
DESCRIPTION
This Microoled display is a 0.71 inch, 1080P High-resolution of 1920 (RGB)x1080 PIXELS, active matrix color OLED panel module based on single crystal silicon backplane. The pixel circuits and driving IC
are combinated on the silicon backplane to reach the micro size and extreme low power consumption. Its potential applications is AR, VR, Head mounted display, near-eye display etc.
This 0.71 inch OLED panel is Micro-OLED. MicroOLED displays are silicon-based OLED display that use a monocrystalline silicon wafer as the actively driven backplane, so it is easier to
acquire a high PPI (pixel density), a high degree of integration, and small size.

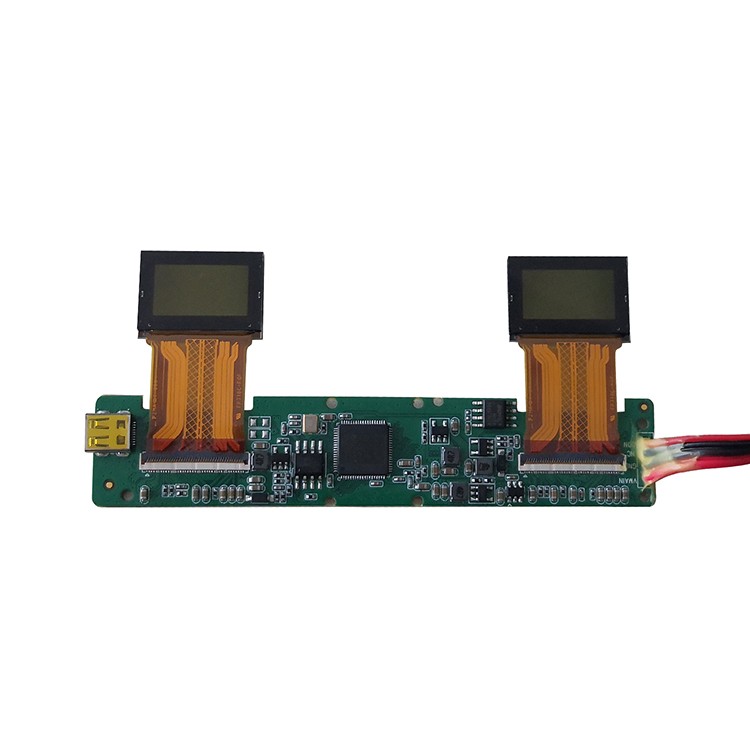

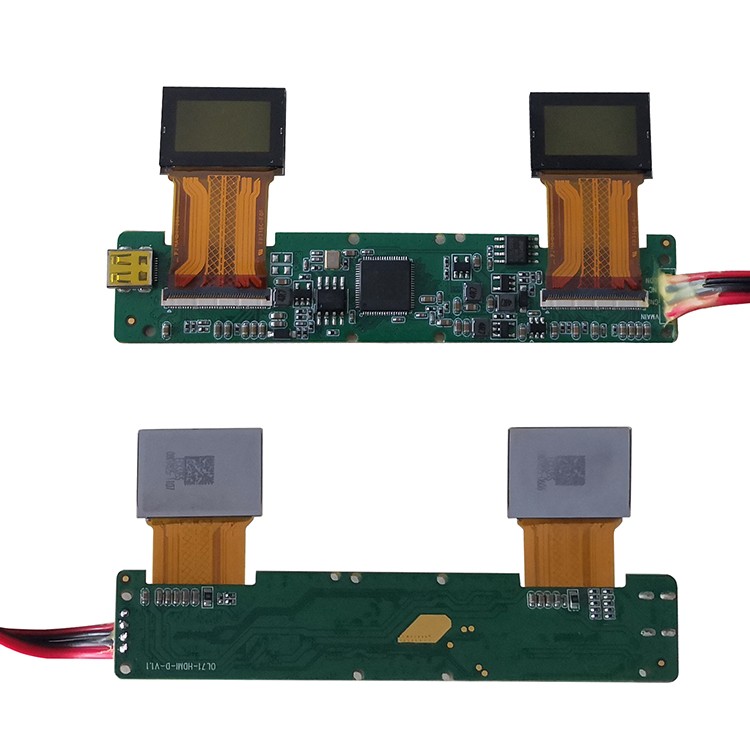

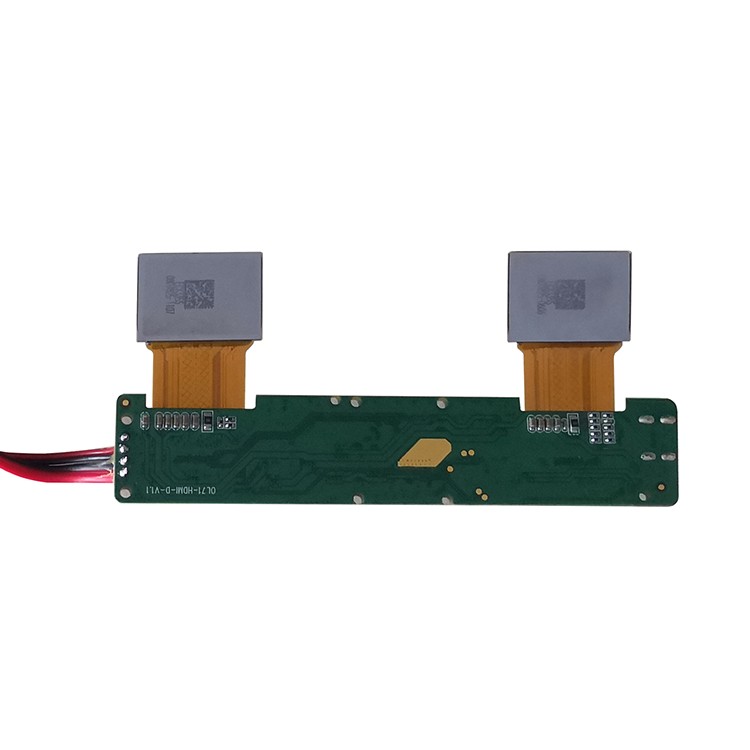

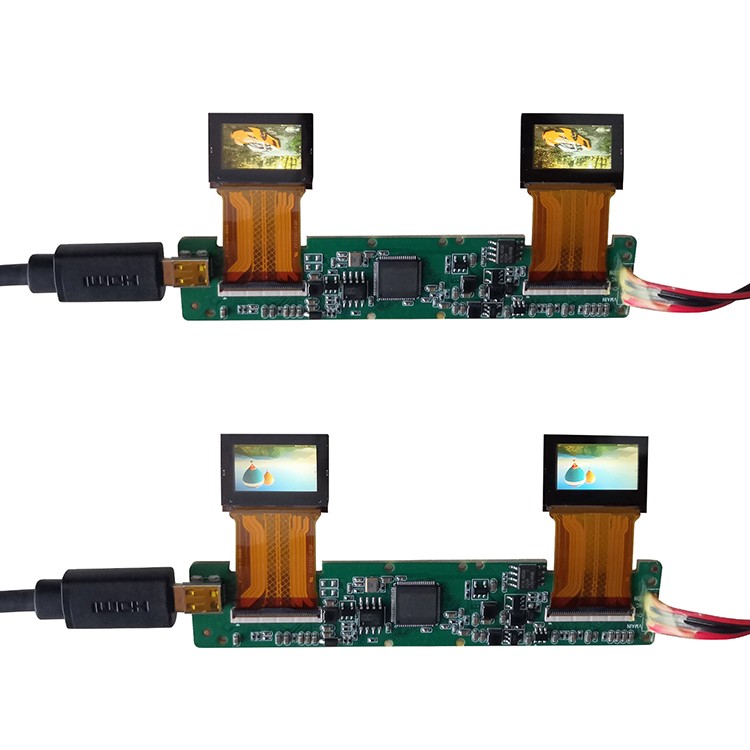

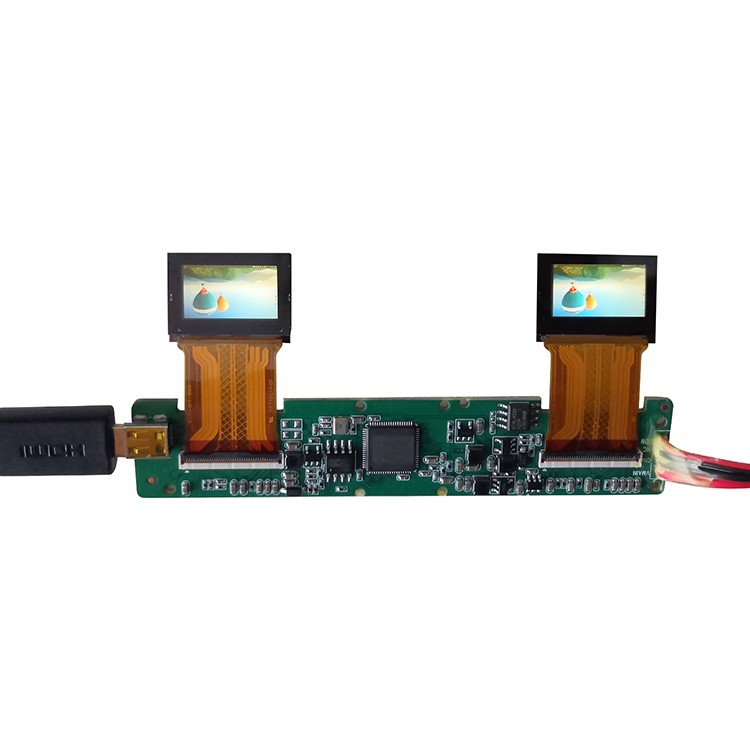

Hicenda Display could provide HDMI controller board, It can connect to laptop, PC with 1920X1080 resolution at 60 Hz
GENERAL SPECIFICATION
| Product model: | HGECX335SN |
| Size: | 0.71 inches |
Appearance size (mm) | 10.783mm x 6.065mm / 0.71'' diagonal |
| Interface | LVDS |
| Resolution: | 1920 * 1080 |
| Brightness: | 3000cd/m² Max |
| Working temperature: | -20 ~ 70 ° C |
| Storage temperature: | -40 ~ 80 ° C |

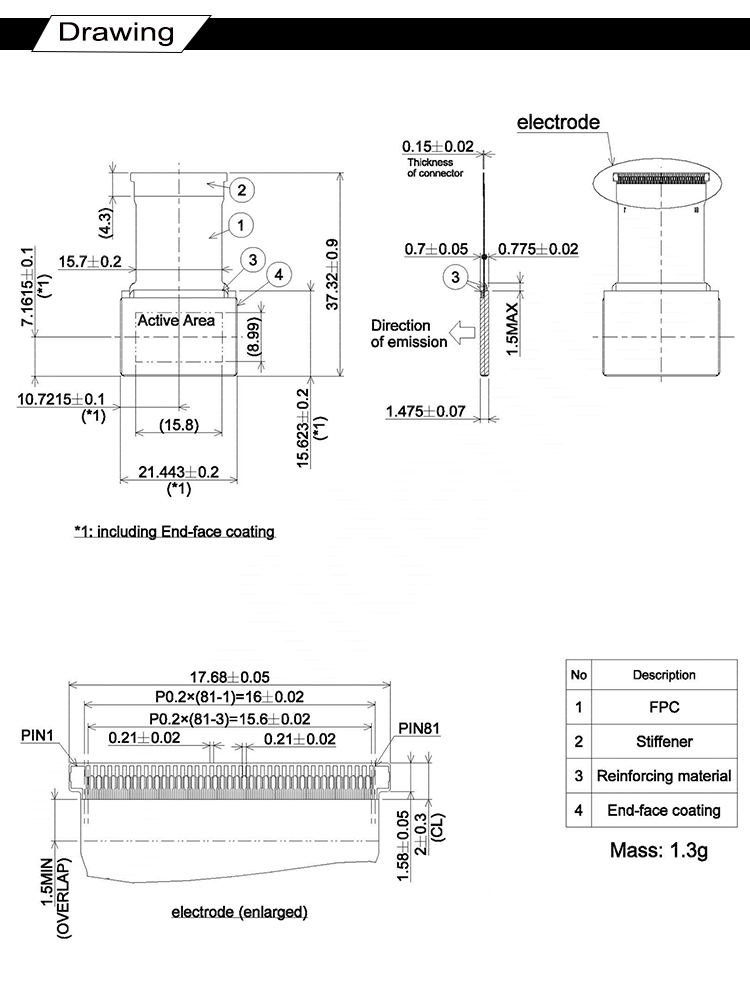

DRAWING

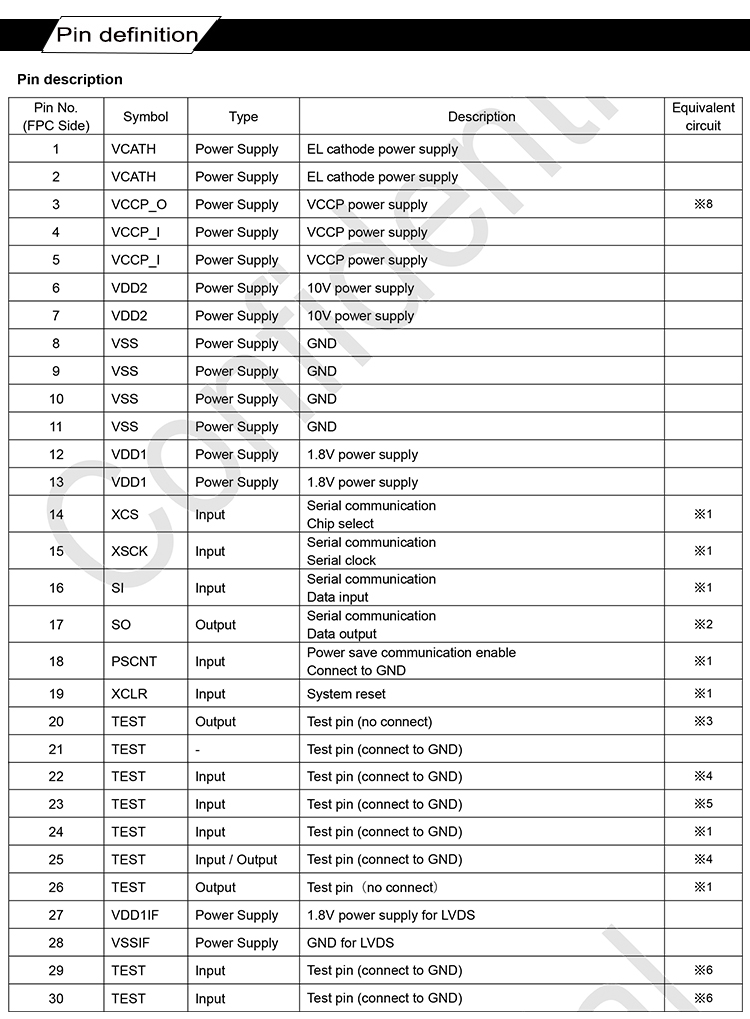

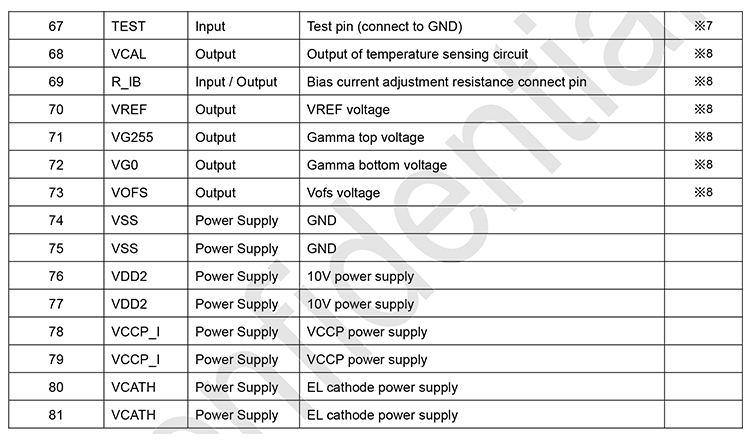

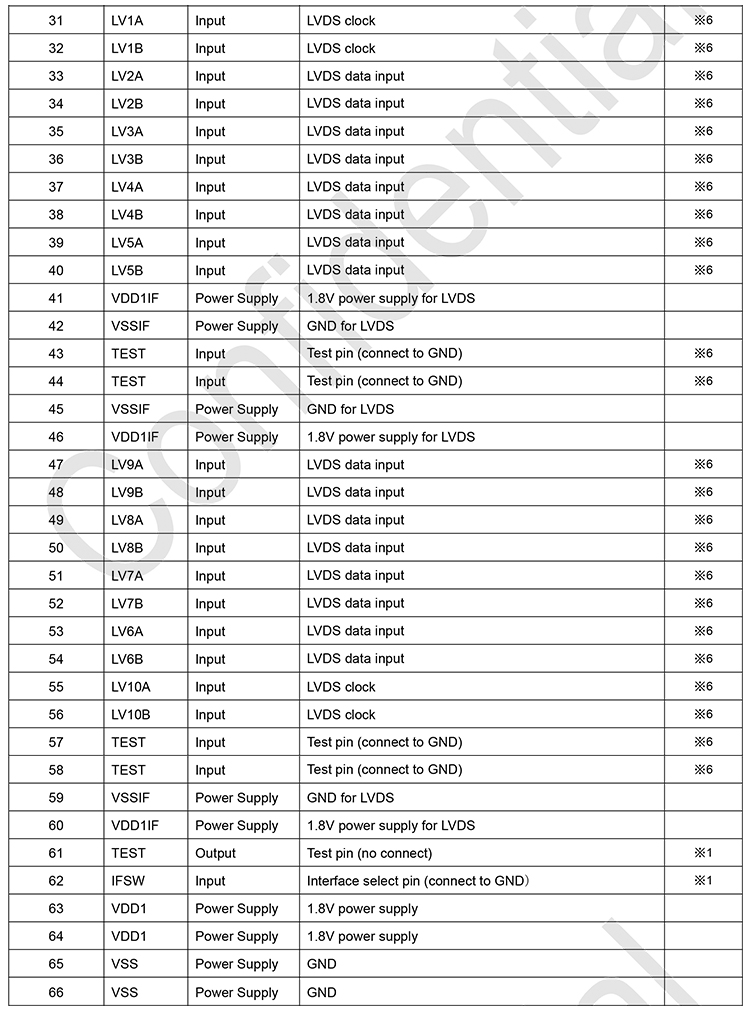

INTERFACE PIN FUNCTION
