This is 0.71" Micro oled display with Birdbath optical module for AR glasses, this AR glasses birdbath optical module support high resolution of 1920x1080 fov 51°.
AR Glasses Binocular Birdbath 1920x1080 51° FOV Optical Module
DESCRIPTION

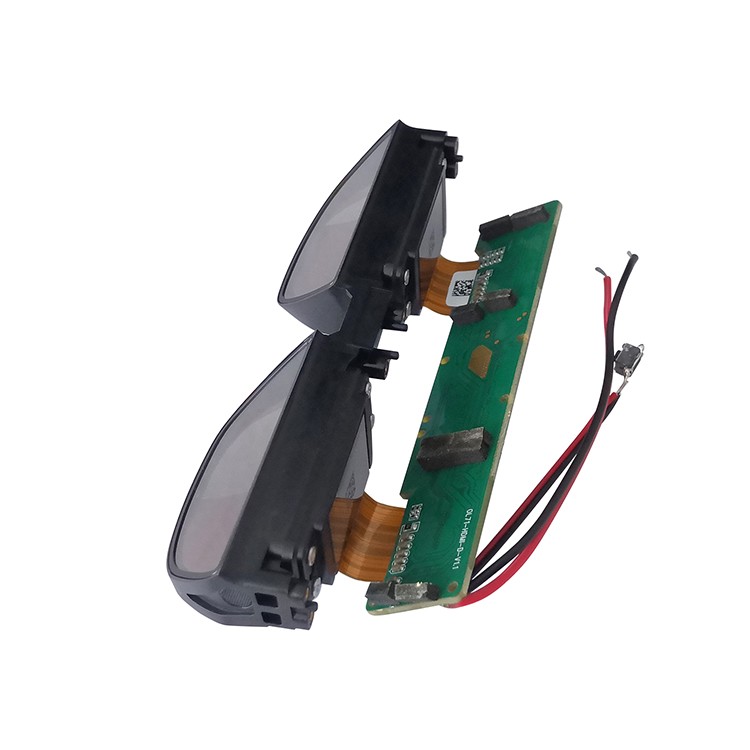

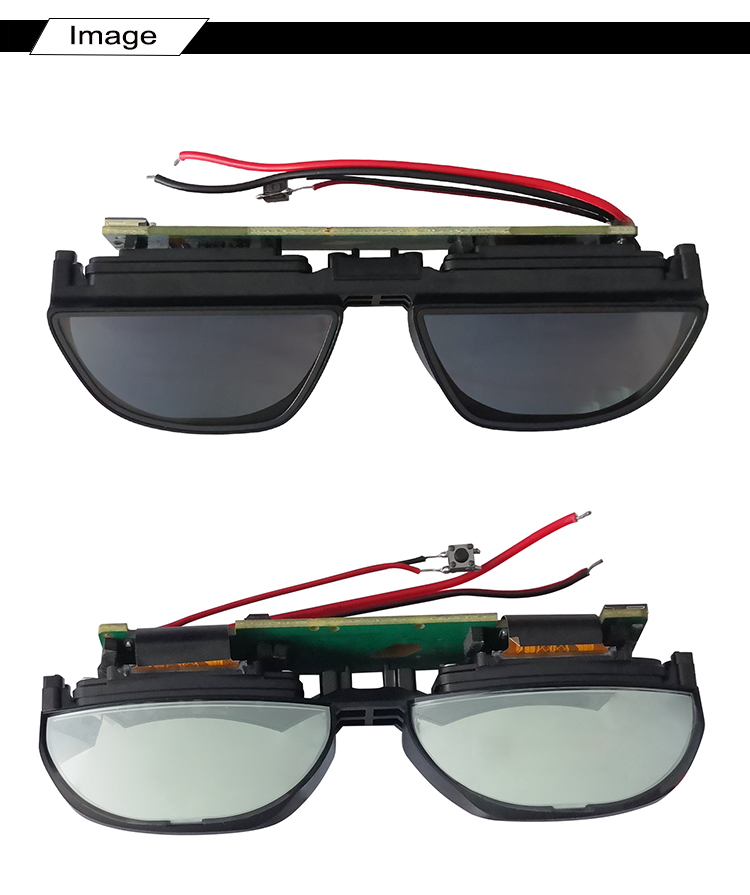

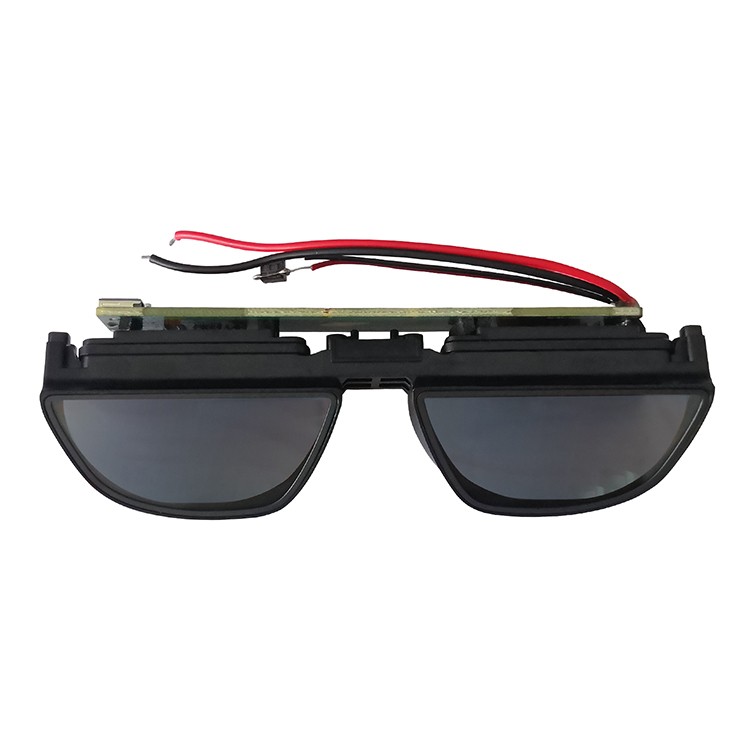

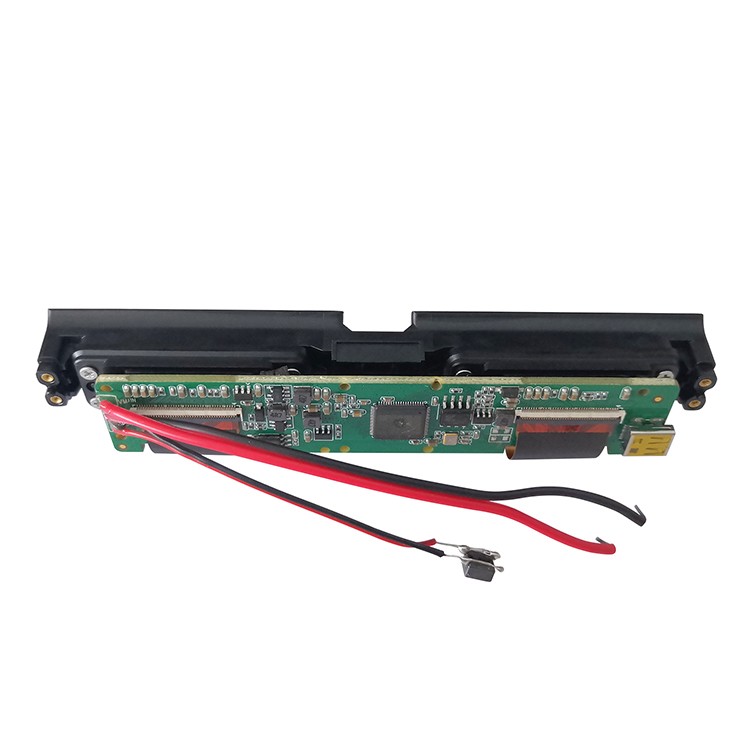

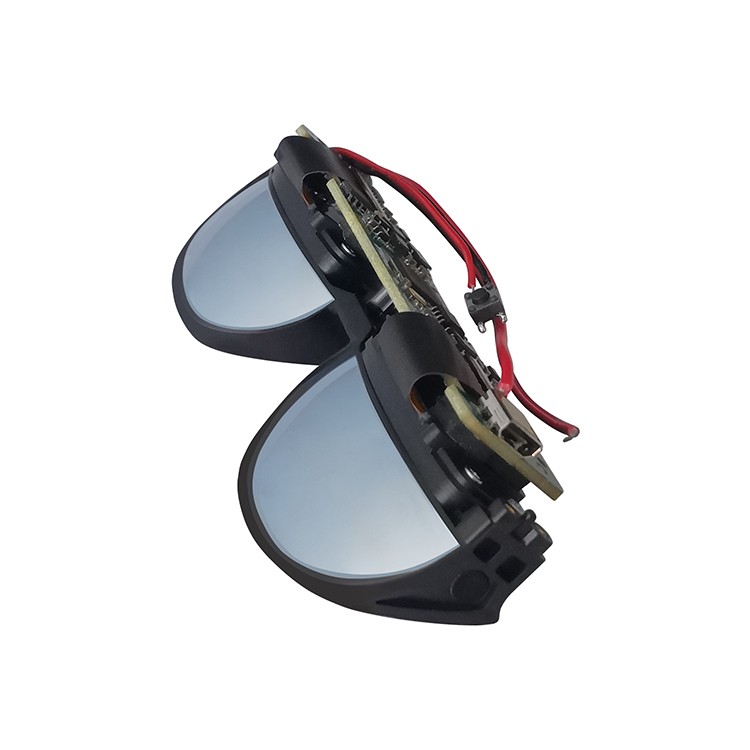

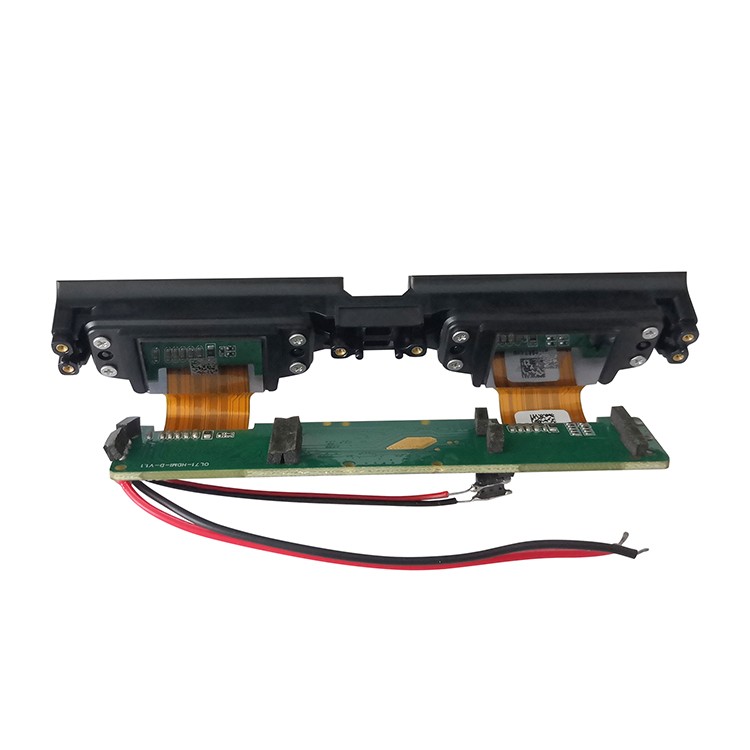

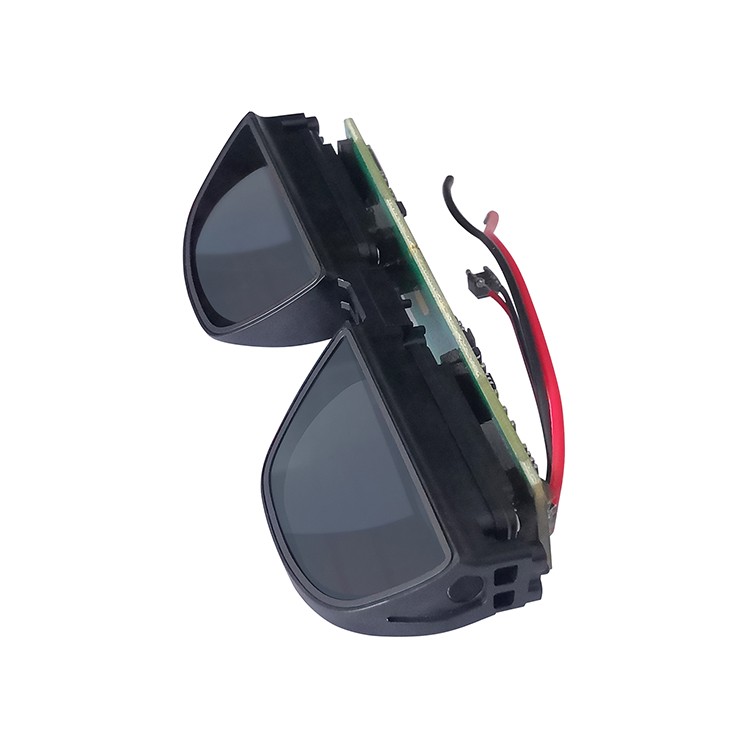

This Birdbath optics Modue is a binocular optical module called “BB”（Birdbath）for AR/VR, which is mainly composed of Micro oled display , optical lens and HDMI driver board. The Micro display panel is 0.71 inch micro-OLED 1920x1080 (sony ECX335SN)
This Bird bath opitcs module supports 1920x1080 high resolution and up 3000nits high brightness, FOV 50°,applicable in AR/VR devices.
SPECIFICATION
FOV:50°
Display panel:0.71 inch Micro-OLED
Technology:Birdbath
Resolution:1920x1080
Interface:LVDS
Luminance: Max 3000 cd/m2
Uniformity:100000:1
Power consumption:820mW@1500nits/1280mW@3000nits
Frame rate:60Hz
Micro Display | Sony Micro OLED, 335SN
Eye box @ Eye relief:8*8mm@14mm
TV distortion:≤0.7%
MTF:MTF≥0.23@2PPL
Monocular Weight:23.2g
Light efficiency:~20% (Adjustable value)
Transmissivity:~20% (Adjustable value)
IPD: (63mm) (Recommended value)

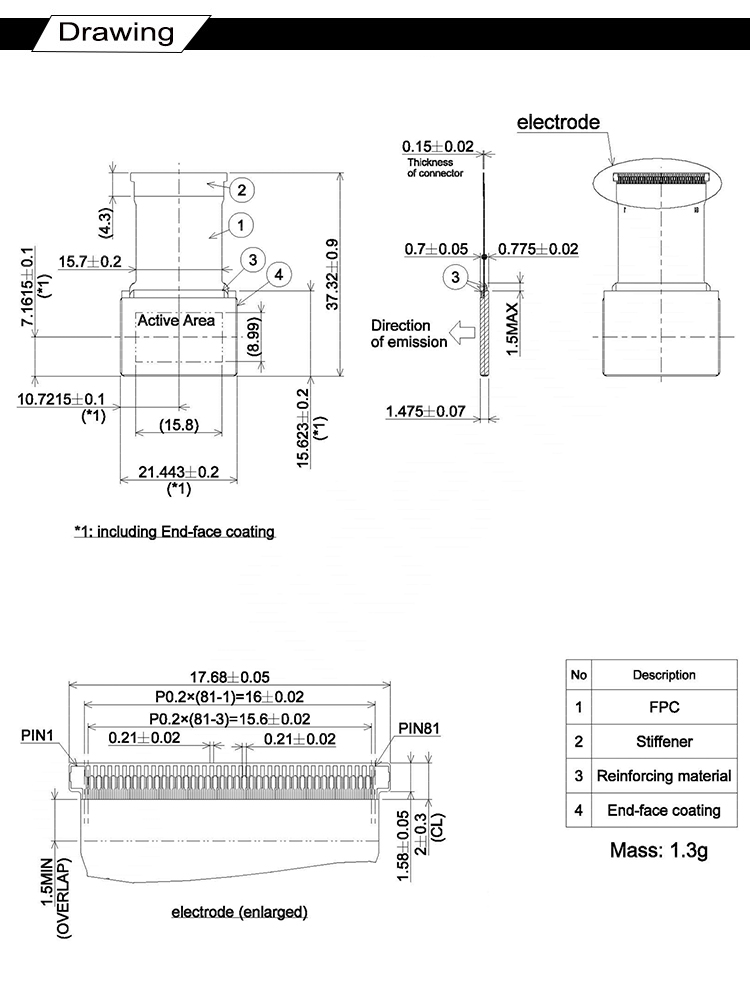

DRAWING

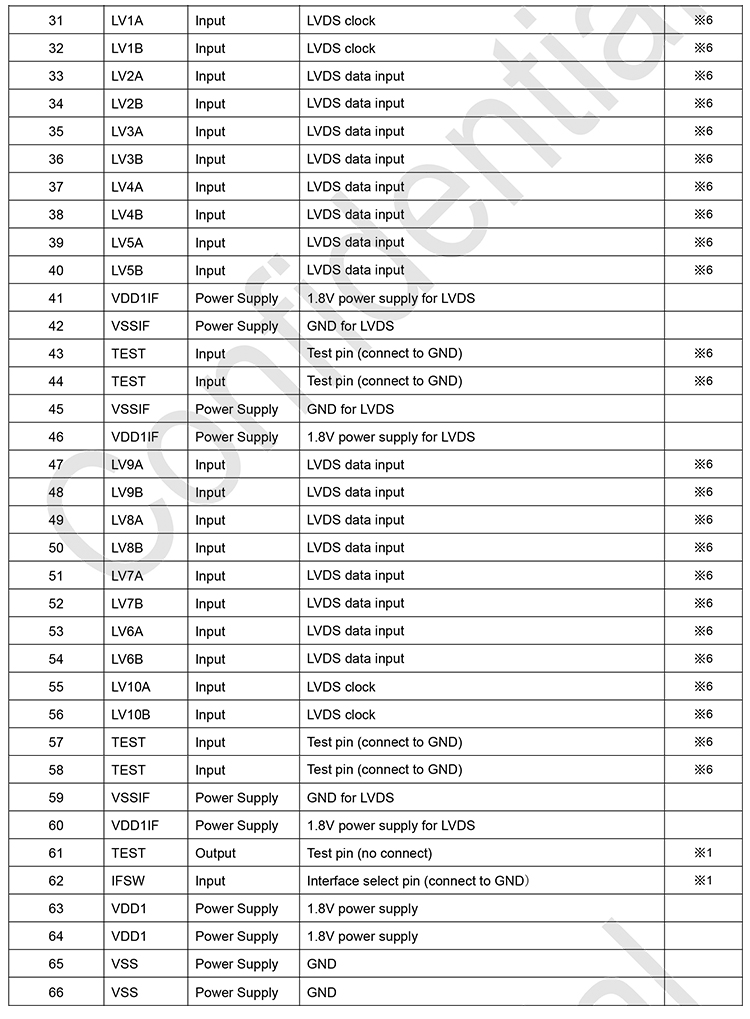

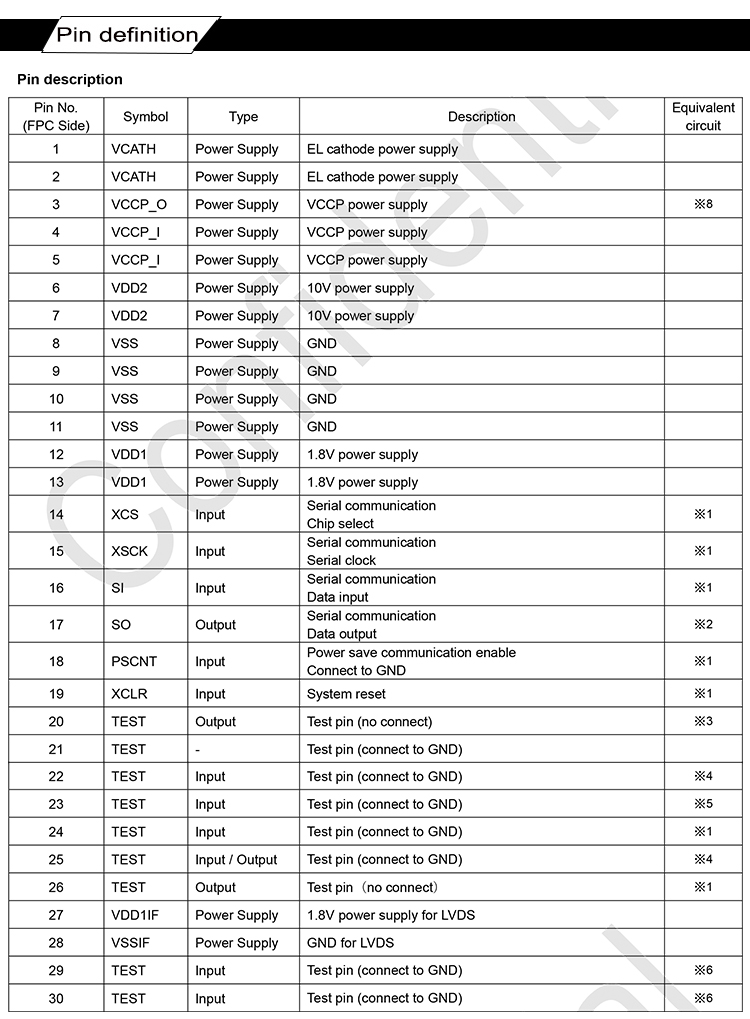

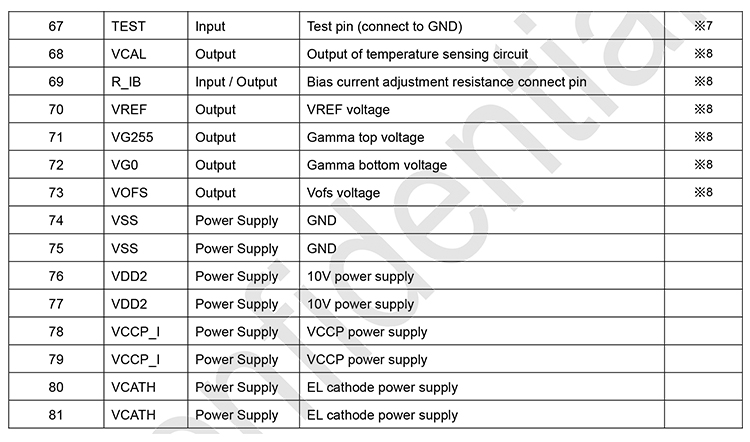

INTERFACE PIN FUNCTION
