1.03 inch Micro OLED Display 2560x2560 3000nits

This display is a 1.03 inch diagonal, 2560(RGB) × 2560 dots active matrix color OLED panel module based on single crystal silicon transistors.

High brightness of 3000nits Micro oled 1.03 inch 2560x2560 high resolution micro display for AR/VR,EVF,head-mounted displays



DESCRIPTION


This Micro oled display is a 1.03 inch Micro si-oled display,  High resolution of 2560x2560 pixels, active matrix color OLED panel module based on single crystal silicon backplane. The pixel circuits and driving IC

are combinated on the silicon backplane to reach the micro size and extreme low power consumption. Its potential applications is AR, VR, Head mounted display, near-eye display etc.


This 1.03 inch OLED panel is Micro si-OLED display that uses a monocrystalline silicon wafer as the actively driven backplane, so it is easier to

get a high PPI (pixel density), a high degree of integration, and small size.

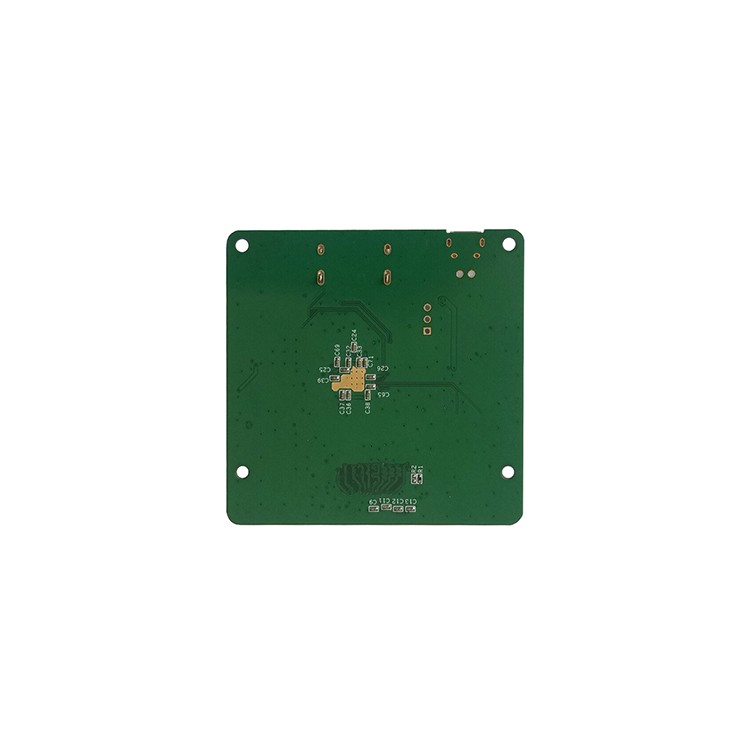

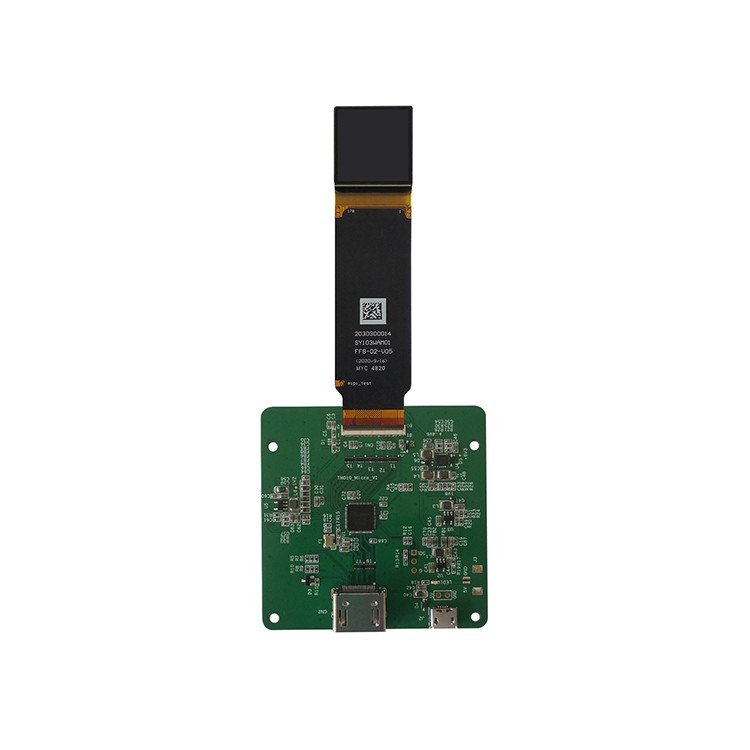

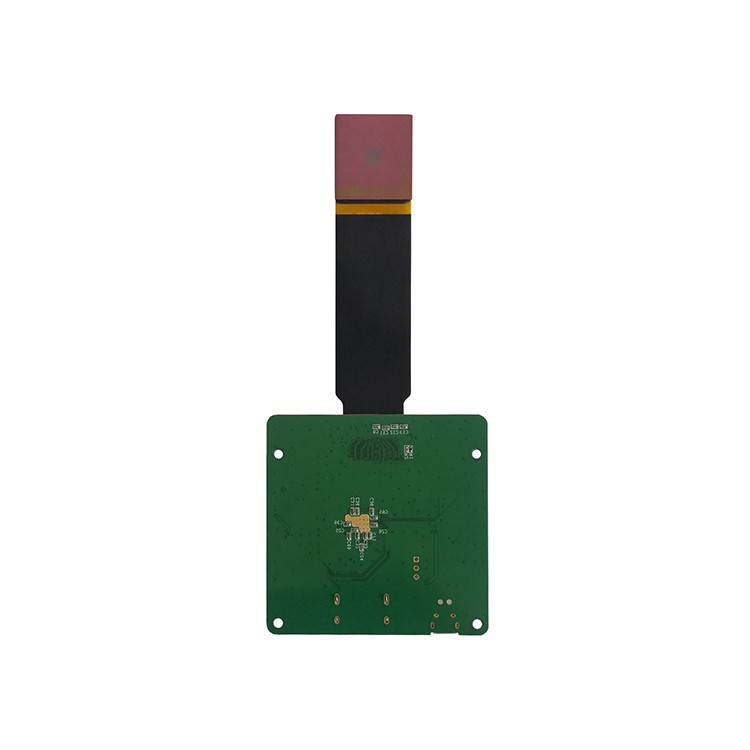

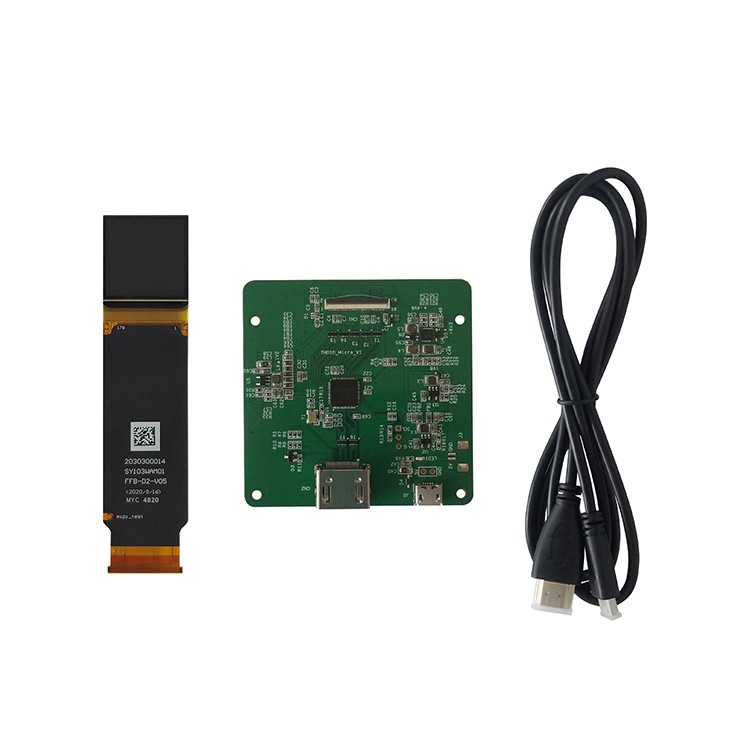

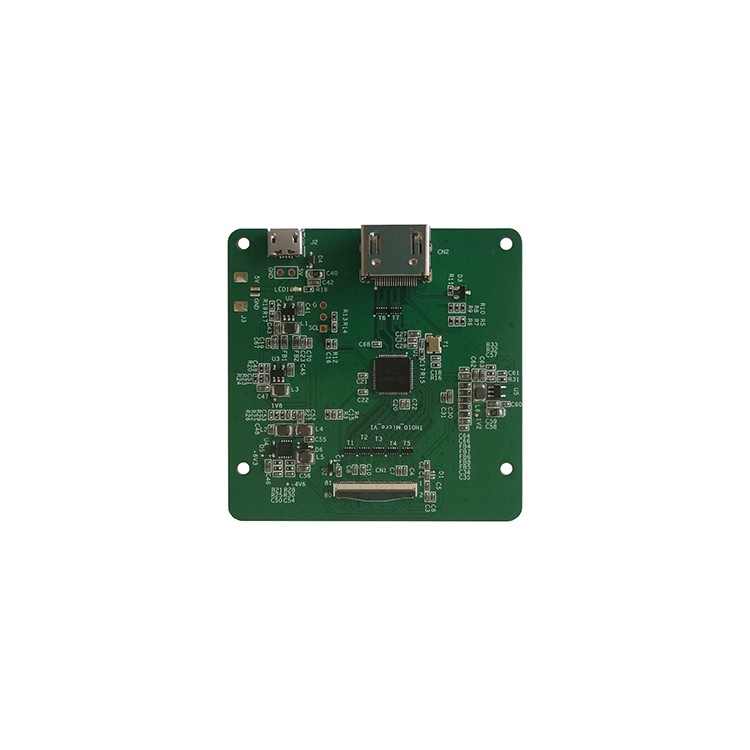

Hicenda Display could provide HDMI controller board, It can connect to laptop, PC with 1920X1080 resolution








GENERAL SPECIFICATION


Product model:

HA103WAM01

Size:1.03 inches

Appearance size (mm)

18.432mm x 18.432mm / 1.03'' diagonal
Interface

MIPI (1 or 2-port D-PHY)

Resolution:2560x2560
Brightness:

1800cd/m² typical

Working temperature:-20 ~ 70 ° C
Storage temperature:-40 ~ 80 ° C

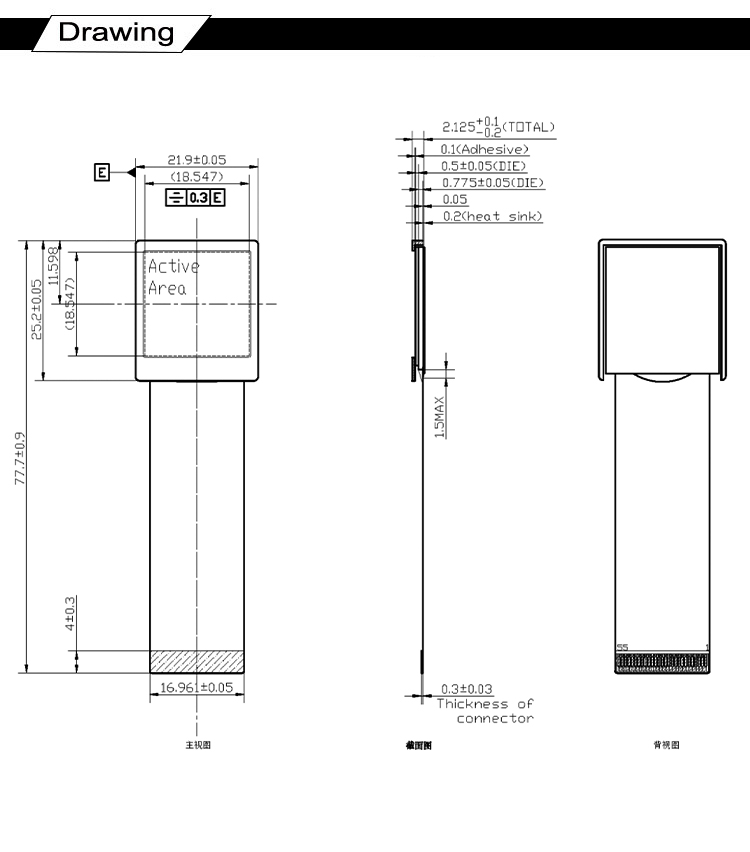

DRAWING

2560x2560 micro oled display.jpg

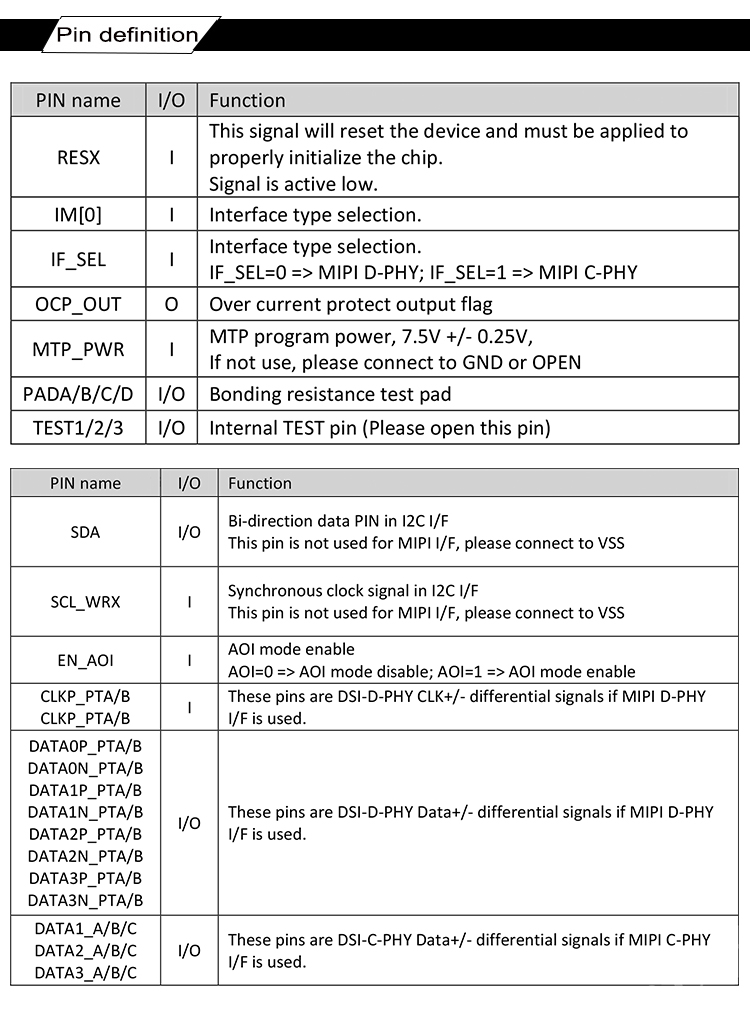

INTERFACE PIN FUNCTION

1.03 micro oled.jpg

1.03 micro screen.jpg
