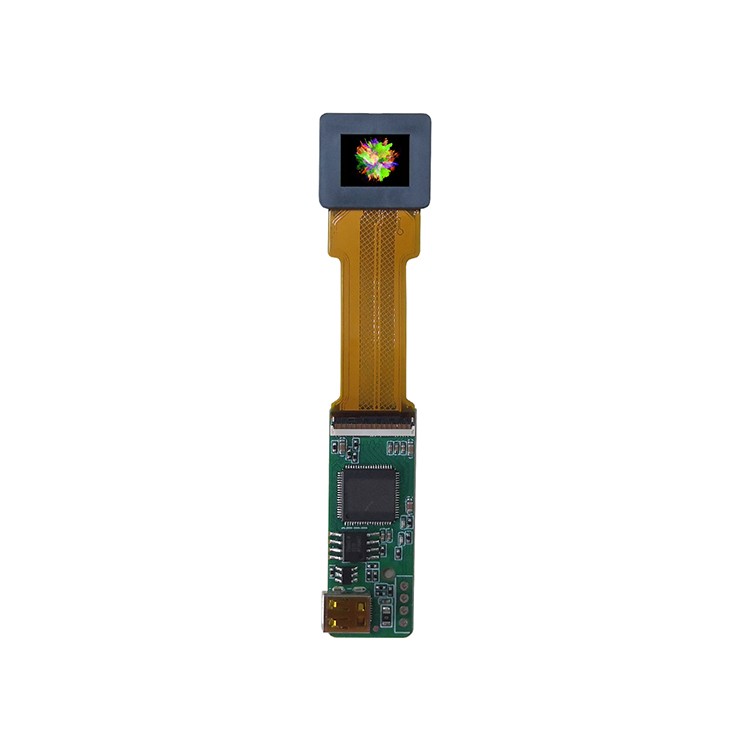

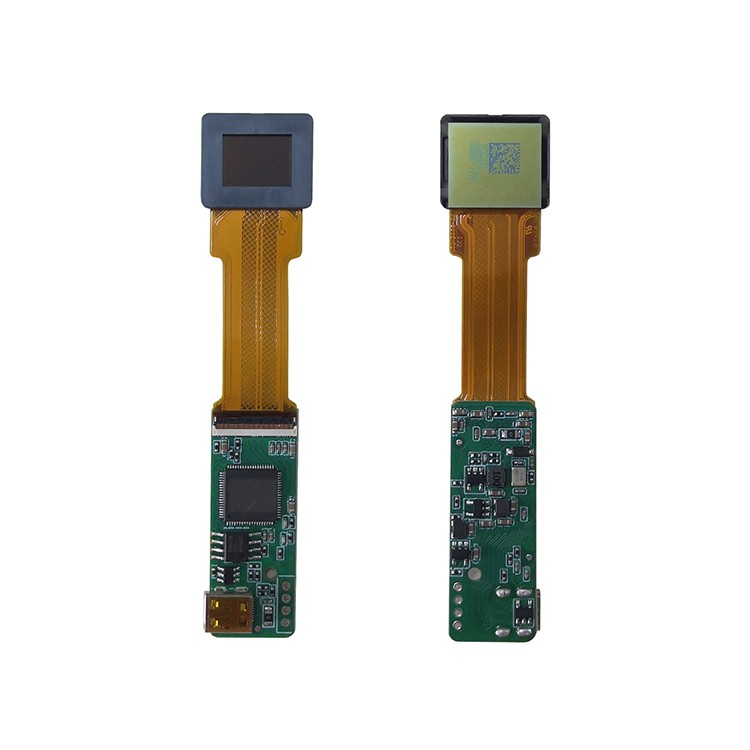

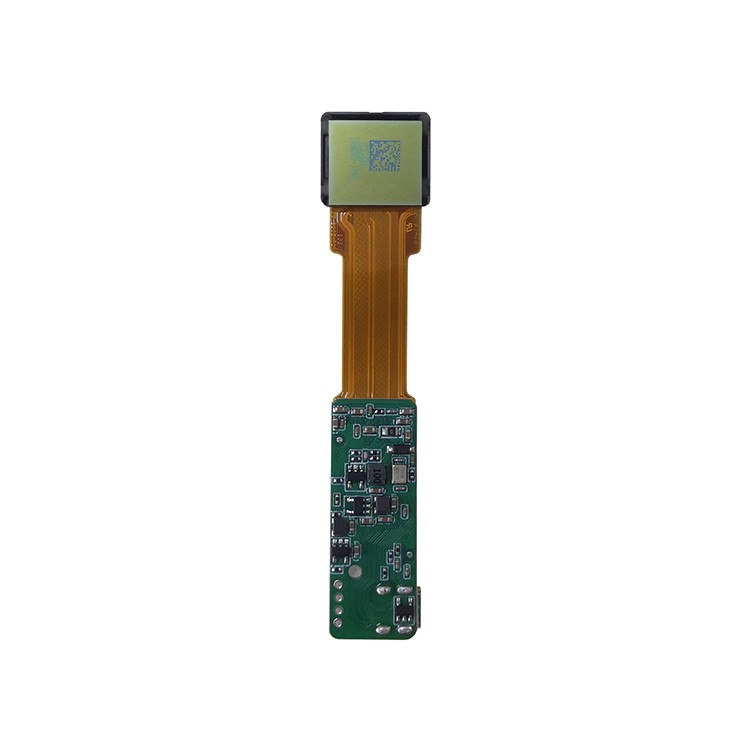

0.5" Micor OLED 1280x960 Microdisplay 1000nits

This Micro display is a 1.3 cm (0.5inch) diagonal, 1280(RGB) × 960 dots active matrix color OLED (Organic Light Emitting Display) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and achieves smaller size, light in weight and high resolution. .

OLED Microdisplay  0.5 inch 1280x960 high resolution Micro display for AR



DESCRIPTION


HICENDA HGOL337RF  is a 0.5 inch high-resolution of 1280x960 Micro Display Panel, This Microdisplay panel is an silicon-based OLED display based on single crystal silicon backplane. and its pixel circuits and driving IC are integrated on the silicon backplane to get the compact size and very low power consumption. moreover, this microoled screen with high brightness of up into 1000 nits,high PPI(pixel density), a high degree of integration, and small size. and it is potential to be used in some applications as below:


Virtual Reality application (VR), Augmented Reality(AR), Head-mounted displays, Near-Eye displays, Military gunsight, and thermal imager.


It has  many advantages, including:

Small size high resolution type 0.5 inch displaymodule

◆ Effective Dots: 1280 x RGB × 960 = 3.69 M dots

◆ Actual Dots including Orbit function: Total dots 1300 x RGB x 980 = 3.82 M dots

◆ Ultra high contrast

◆ Wide color gamut

◆ Fast responsespeed

◆ Thin and light in weight

◆ Power consumption Saving (PS) mode

◆ Scan direction selection, up or down and right or left.

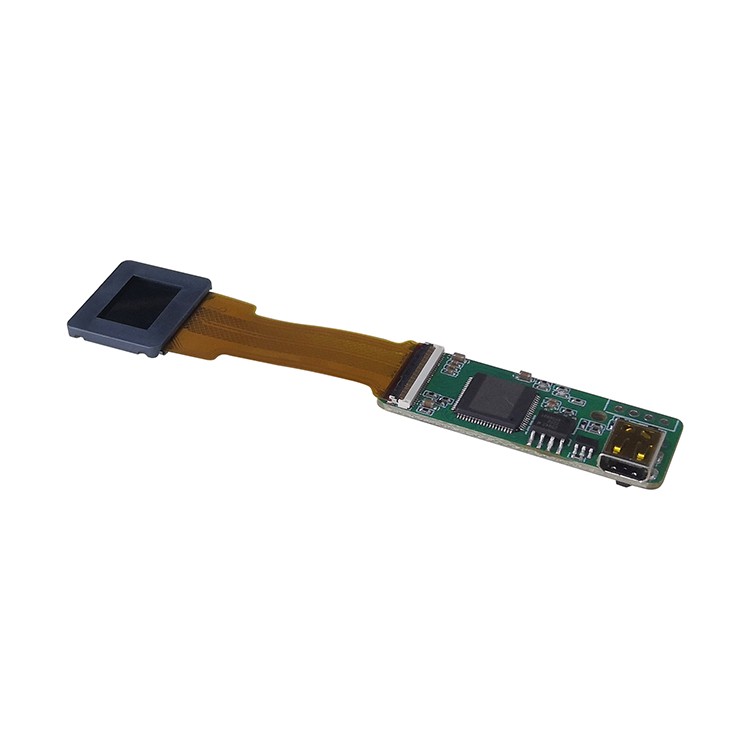

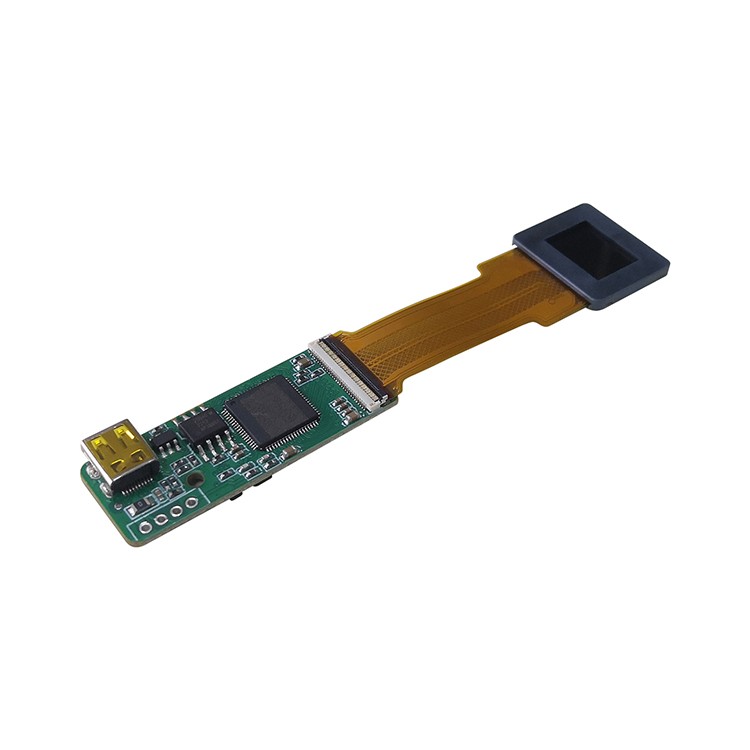

Hicenda Display could provide HDMI controller board and CVBS controller board, It can connect to laptop, PC with 1920X1080 resolution at 60 Hz








GENERAL SPECIFICATION


Product model:

HGOL337RF

Size:0.5 inches/10.14(H) × 7.644(V)

Appearance size (mm)

17.8(H) × 15.2(V)
Interface

MIPI

Resolution:1280X960
Brightness:

1000cd/m² (Max)

Working temperature:-10 ~ 70 ° C
Storage temperature:-30 ~ 80 ° C

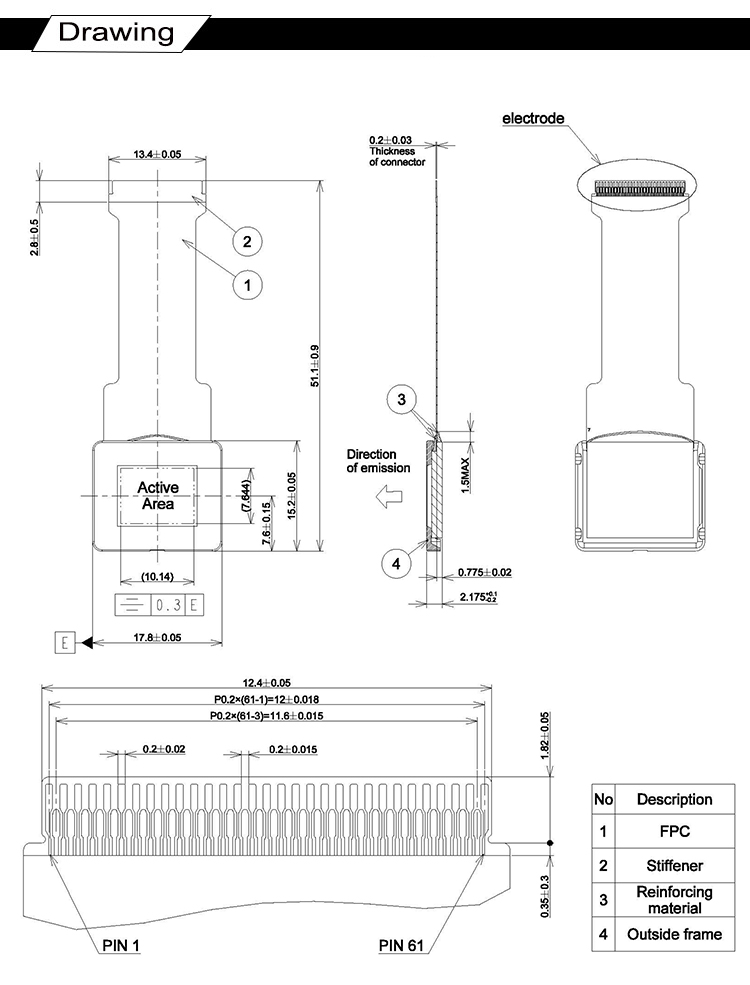

DRAWING


0.5 Inch Ecx337a 1280x960 Oled MicroDisplay.jpg

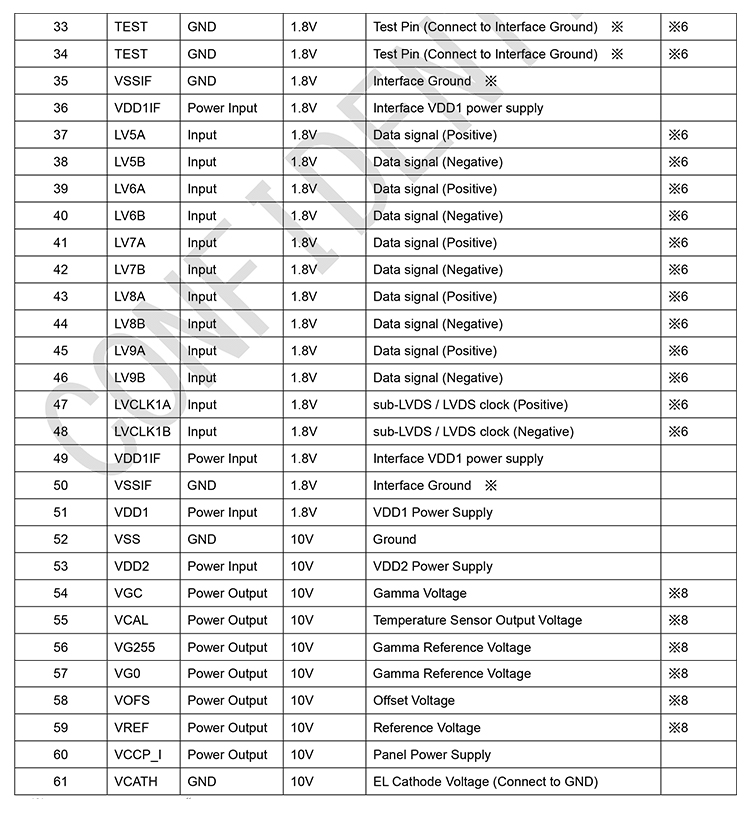

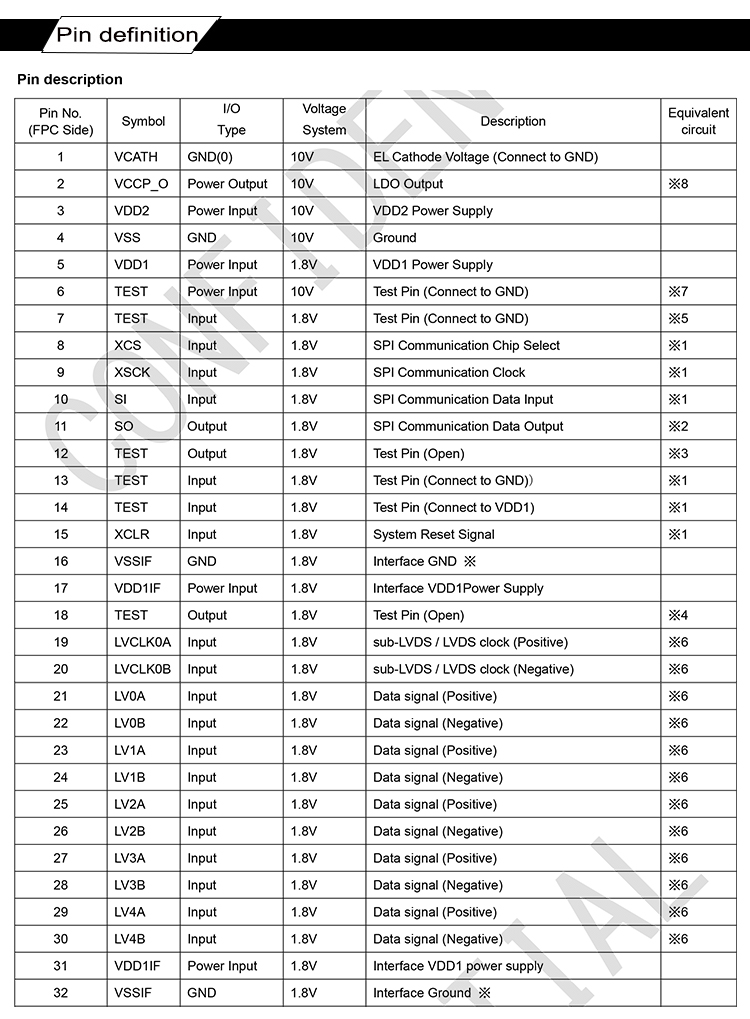

INTERFACE PIN FUNCTION

0.5 Inch Ecx337a Microdisplay Amoled Resolution 1280x960.jpg

0.5 ECX337 1280x960 ECX337A OLED display AR LCD.jpg
