0.49" Micro OLED 1920x1080 Micro display screen

This Micro display is a 0.49 inch diagonal, 1920(RGB) × 1080 dots active matrix color OLED module based on single-crystal silicon transistors. This module integrates panel driver and logic driver, and realizes small size, light weight, low power consumption and high resolution.

1080P Microoled 0.49 inch 1920x1080 high resolution micro display for AR/VR,EVF,head-mounted displays

DESCRIPTION

HICENDA HA049WDM02 is a 0.49 inch 1080P FHD resolution of 1920x1080 Micro Display Panel, This Microdisplay panel is an silicon-based OLED display based on single crystal silicon backplane. and its pixel circuits and driving IC are integrated on the silicon backplane to get the compact size and very low power consumption. moreover, this microoled

screen with high brightness of up into 1800 nits,high PPI(pixel density), a high degree of integration, and small size. and it is potential to be used in some applications as below:

Virtual Reality application (VR), Augmented Reality(AR), Head-mounted displays, Near-Eye displays, Military gunsight, and thermal imager.

It has many advantages, including:

1920 x 1080 SPR Resolution

Multi-Resolution (4*M, M=160~480) x RGB x (4*N, N=120~270)

• Frame rate: 1920x1080 up to 90Hz

• Support 8bits or 10bits color depth

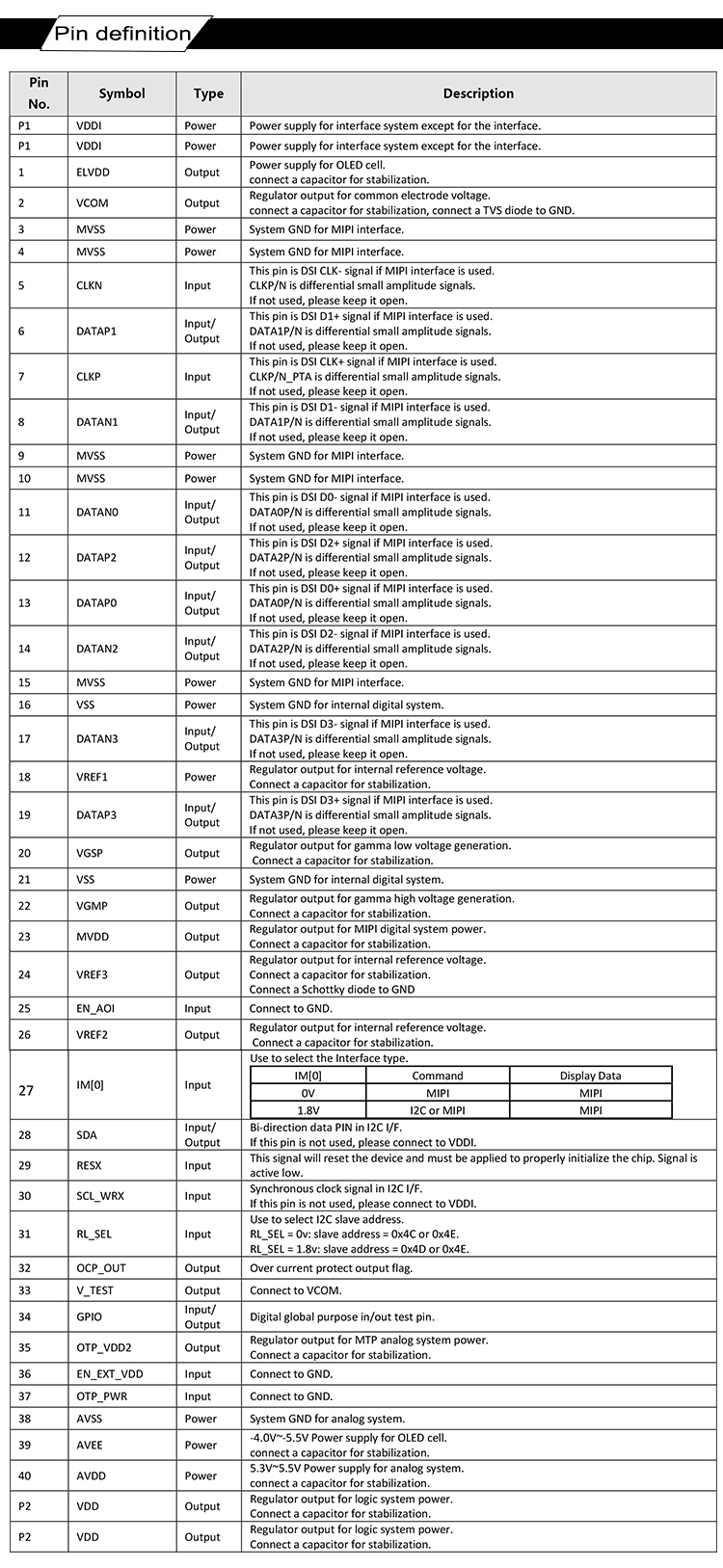

• Interface

-- MIPI+ I2C

-- MIPI DPHY v1.2 with one port (4 lanes), 1.0Gbps/Lane

-- MIPI DSI v1.01 R11 Video mode

-- Support VESA-DSC v1.1 in-chip decoder (3X and 3.75X compression ratio)

-- Support scaling up 1.33x(e.g., 1440x810 to 1920x1080), 1.5x (e.g., 1280x720 to 1920x1080) and 2x (e.g.,

960x540 to 1920x1080)

• Scan direction selection, up or down and right or left

• Orbit supported

• Wide range Brightness adjustment

• Sequential/Global emission

• Temperature compensation

• Image Anchoring

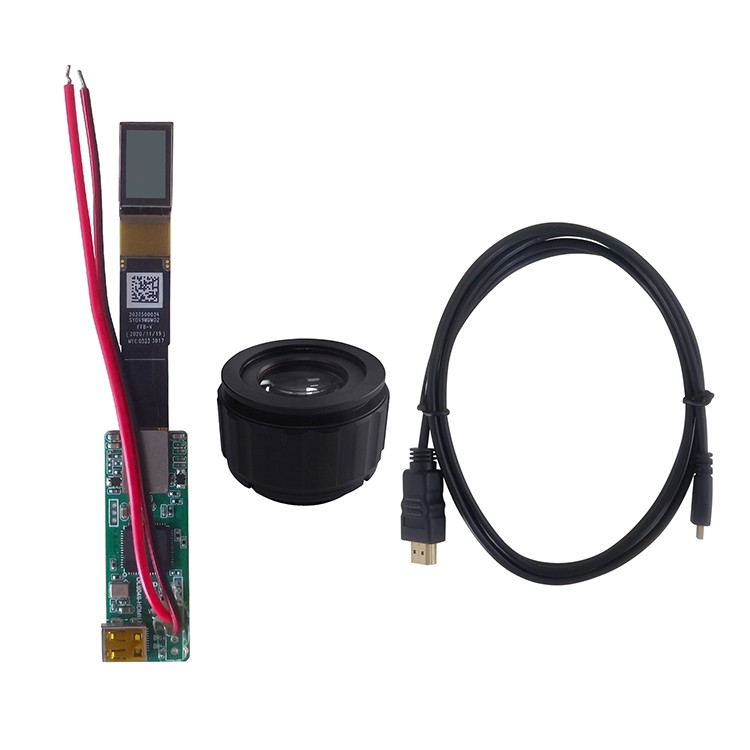

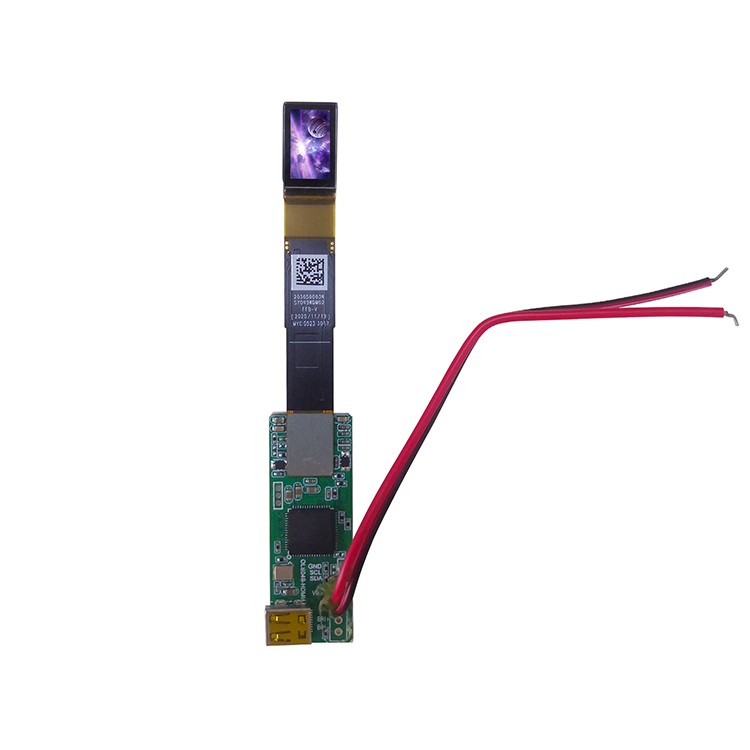

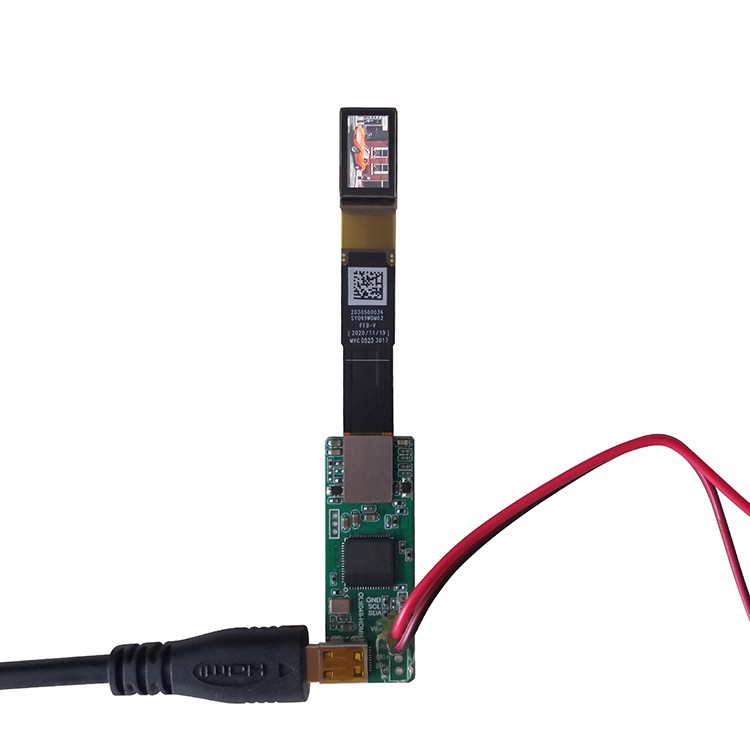

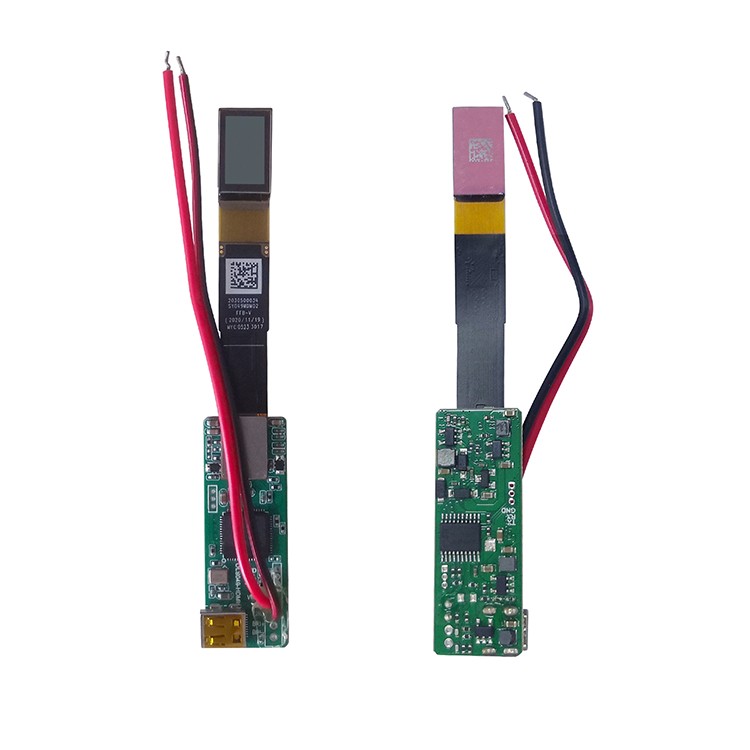

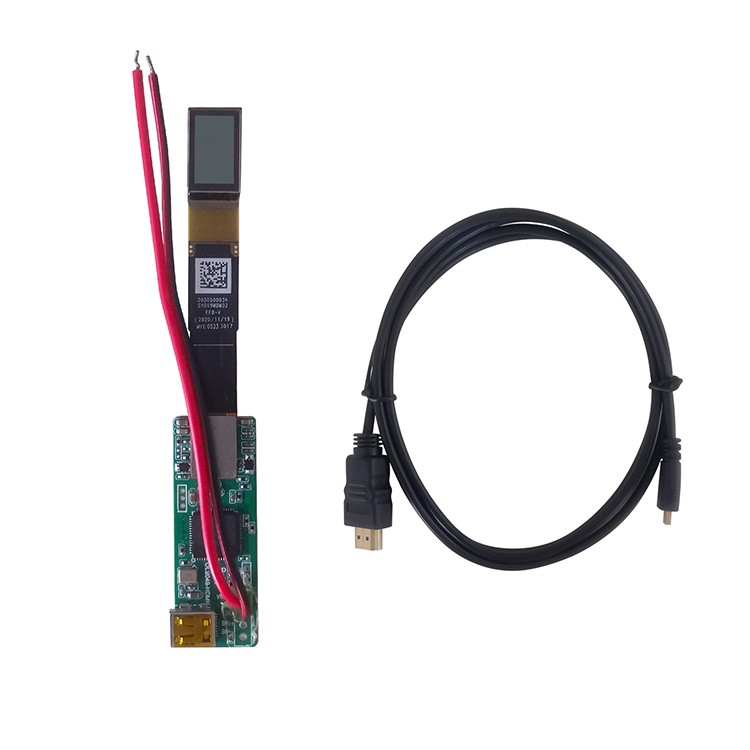

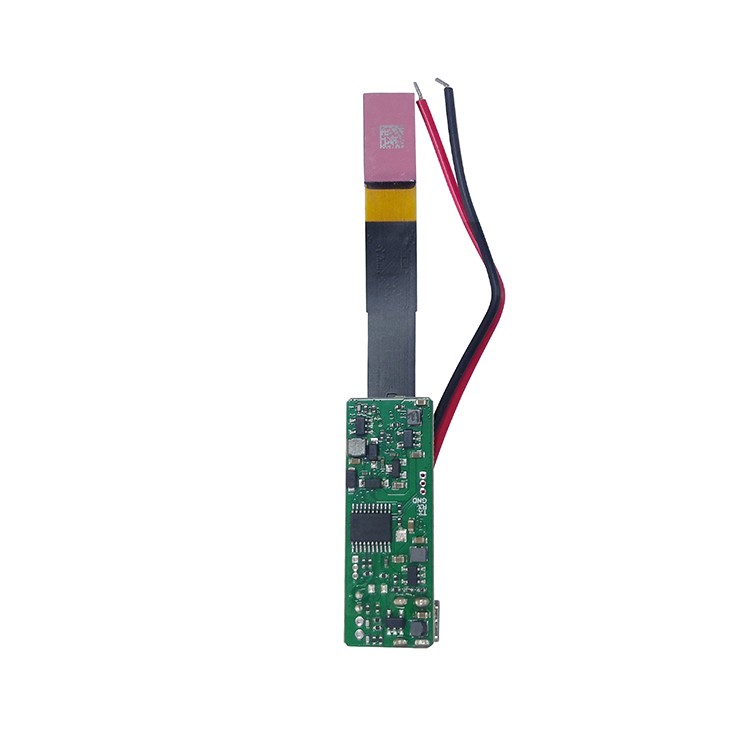

Hicenda Display could provide HDMI controller board, It can connect to laptop, PC with 1920X1080 resolution at 60 Hz

GENERAL SPECIFICATION

Product model:	HA049WDM02
Size:	0.49 inches

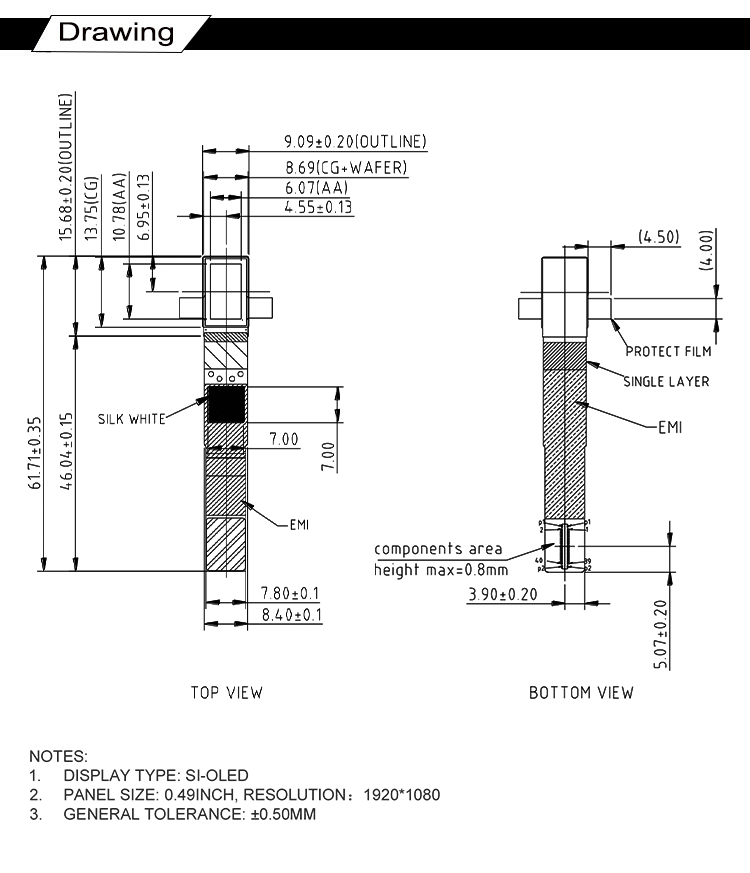

Appearance size (mm)	10.783mm x 6.065mm / 0.49'' diagonal
Interface	MIPI
Resolution:	1920 * 1080
Brightness:	1800cd/m² typical
Working temperature:	-20 ~ 70 ° C
Storage temperature:	-40 ~ 80 ° C
