Augmented Reality (AR) is transforming how we interact with technology, and at its core lies the ar display. This article dives into the intricate world of ar displays, exploring the different display technologies, optical principles, and performance parameters that define their effectiveness. We'll examine how these reality displays differ from those used in virtual reality (VR), and what advancements are paving the way for the future of augmented and mixed reality (AR and MR). Understanding the nuances of ar display technology is crucial for anyone interested in the evolving landscape of virtual and augmented reality, making this a worthwhile read.
An ar display, short for Augmented Reality display, is a visual interface that allows users to see computer-generated images overlaid onto their view of the real world. Unlike a vr display (Virtual Reality display), which completely immerses the user in a simulated virtual reality, an ar display enhances the user's perception of their existing surroundings. This is the key difference between ar and vr.
The fundamental distinction lies in the user's relationship to the environment. With vr, the user's entire field of view is filled with a computer-generated scene, effectively isolating them from the real world. In contrast, an ar display aims to seamlessly integrate virtual objects and information into the user's real-world view. Imagine seeing navigation directions projected onto the real world in real-time as you walk down the street – that's the essence of ar.
VR systems typically use display screens that completely cover the user's field of view, such as oled or lcd panels mounted in a headset. AR devices, on the other hand, require display technologies that allow the user to see through them, such as optical see-through displays or video see-through systems. This "see-through" capability is crucial for maintaining awareness of the real environment while experiencing augmented reality.
Within the realm of ar displays, two primary approaches exist: optical see-through and video see-through. Each method presents its own set of advantages and disadvantages, making it suitable for ar different ar applications.
Optical see-through displays, as the name suggests, utilize optical elements, such as prisms, lenses, or waveguides, to combine the virtual image with the user's view of the real world. The user looks through these optical elements to see their surroundings, while the ar display projects virtual objects onto the real world. A benefit of this is that they are transparent.
Table: Comparison of Optical See-Through and Video See-Through AR Displays
| Feature | Optical See-Through | Video See-Through |
|---|---|---|
| Real World View | Direct, unmediated view | Digitized and processed view |
| Image Quality | Can be limited by optical constraints and display brightness | Can achieve high image quality through advanced display technologies |
| Latency | Low latency, as the real world view is direct | Higher latency due to image processing |
| Field of View | Can be challenging to achieve a wide fov | Can potentially achieve a wider fov |
| Computational Cost | Lower computational cost | Higher computational cost due to image processing and ar tracking |
| Applications | Applications where low latency and a natural view of the real world are critical, such as surgery or piloting | Applications where high image quality and advanced ar tracking are required, such as gaming or industrial design |
The best choice between optical see-through and video see-through depends on the specific requirements of the display applications. Optical see-through is generally preferred for applications where low latency and a natural view of the real world are crucial, while video see-through is better suited for applications that require high image quality and advanced augmented reality tracking.

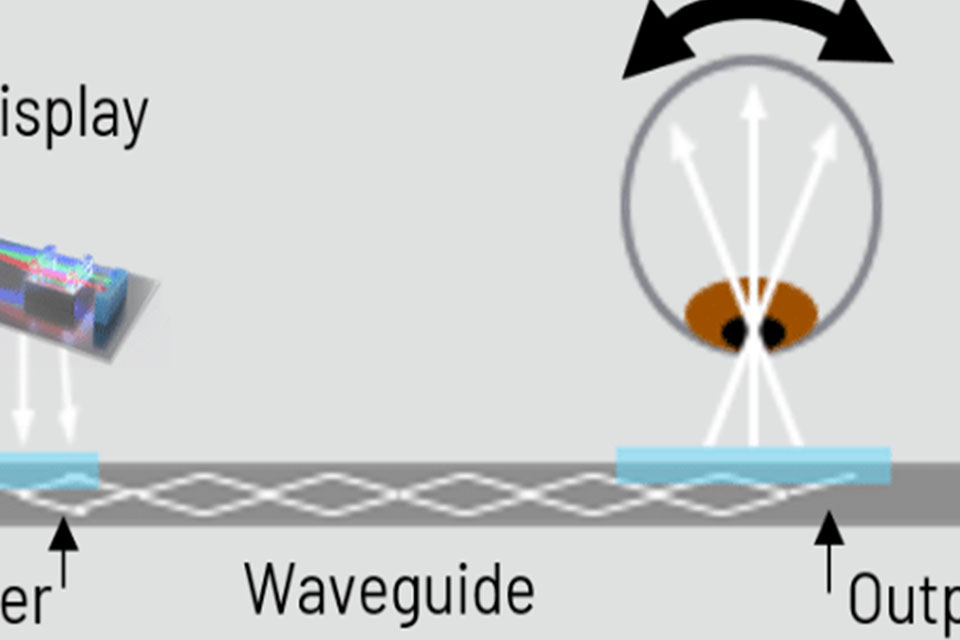

Waveguide technology has emerged as a leading solution for creating compact and lightweight ar glasses. A waveguide is a thin, transparent piece of glass or plastic that guides light to achieve from a light source (often a micro-display) to the user's eye display. This is a key component of waveguide ar.
The light engine, which generates the display content, is typically located on the side of the ar glasses. The light output from the light engine is then injected into the waveguide, where it is reflected internally by a series of mirrors or gratings. These optical elements reflect light, eventually directing it towards the user's eye display, creating a virtual image that appears to float in front of them.
Diffractive waveguides utilize tiny, precisely patterned gratings on the surface of the waveguide to diffract light to achieve. These gratings act as miniature prisms, bending the emitted light and guiding it towards the user's eye display. By carefully designing the gratings, engineers can control the direction and intensity of the light processing, creating a clear and high resolution virtual image. They have emerged as a leading way for suitable for ar displays.
Waveguide display technology offers several advantages for ar glasses. They are thin, lightweight, and can provide a wide field of view (FOV). They also allow for a more discreet and stylish design compared to traditional optical systems.

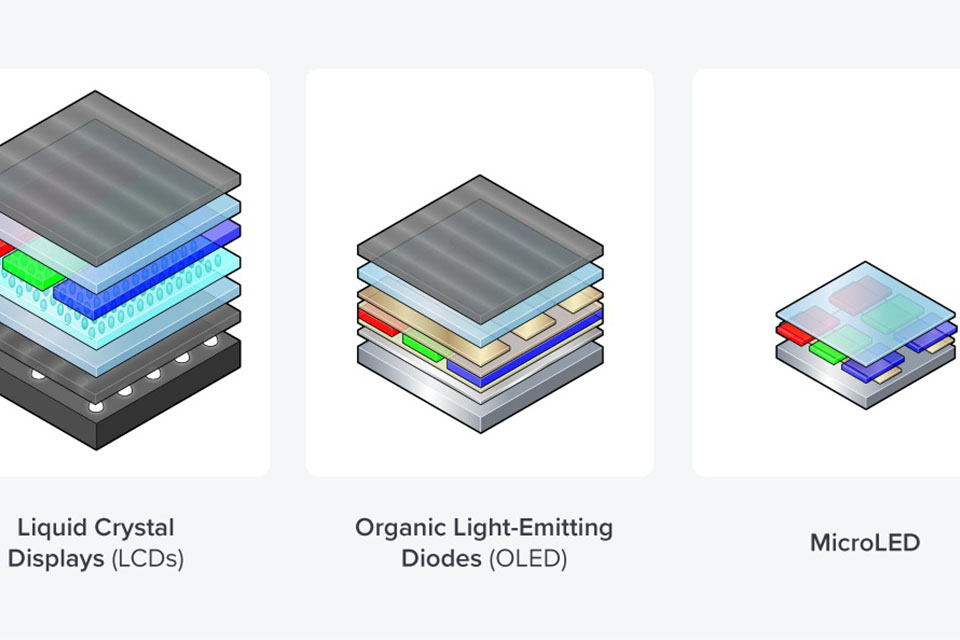

When it comes to choosing a display panel for ar displays, OLED (Organic Light Emitting Diode) and LCD (Liquid Crystal Display) are two prominent contenders. Each technology boasts its own set of strengths and weaknesses in terms of display.
OLED displays are light emitting devices, meaning that each pixel generates its own light. This results in several advantages, including high contrast ratios, wide viewing angles, and fast response times. OLED displays can also be made very thin and flexible, making them ideal for wearable devices like ar glasses.
LCD displays, on the other hand, require a backlight to illuminate the display panel. The liquid crystal displays then modulating light from the backlight to create the image. While LCDs are generally more affordable than OLEDs, they typically offer lower contrast ratios, narrower viewing angles, and slower response times.
Table: Comparison of OLED and LCD Displays for AR Applications
| Feature | OLED | LCD |
|---|---|---|
| Contrast Ratio | High | Lower |
| Viewing Angle | Wide | Narrower |
| Response Time | Fast | Slower |
| Thickness | Thin | Thicker |
| Power Consumption | Can be lower for certain display content | Can be higher, especially with brighter backlights |
| Manufacturing Cost | Generally higher | Generally lower |
In general, OLED displays offer superior optical performance for ar applications due to their high contrast ratios, wide viewing angles, and fast response times. However, LCDs may be a more cost-effective option for certain applications where display performance is not as critical.
FOV (Field of View) is a critical performance parameters that significantly impacts the immersive vr and ar experience. FOV refers to the extent of the virtual world or augmented reality scene that is visible to the user at any given time. It is typically measured in degrees, representing the horizontal and vertical angles of the visible area.
A wider fov allows the user to see more of the virtual or augmented reality scene, creating a greater sense of presence and immersion. In vr, a narrow fov can feel like looking through a tunnel, while a wide fov can make the user feel like they are truly inside the virtual world. A wider fov is generally considered to be more desirable.
In ar, fov is also important for seamlessly integrating virtual objects into the real world. A wider fov allows the user to see more of the augmented reality scene without having to move their head, making the experience more natural and intuitive.
Achieving a wide fov in ar and vr displays can be challenging, especially for wearable devices like ar glasses. Optical limitations, display size, and optical design all play a role in determining the achievable fov.

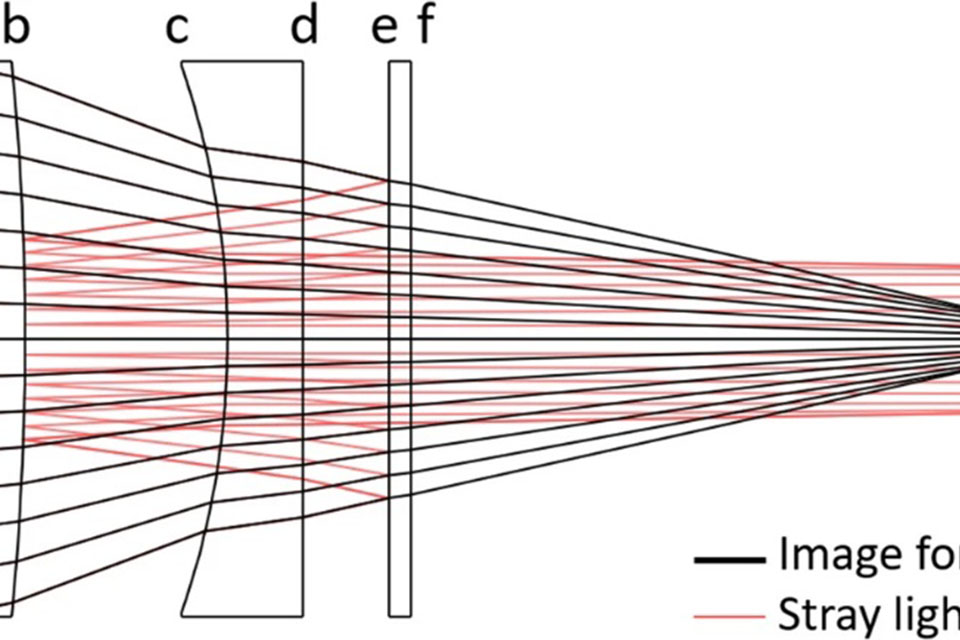

Stray light is unwanted light intensity that reaches the user's eye display in an ar system, reducing image quality and contrast, making it a critical consideration in optical design. It is the light that shouldn't be there. This stray light can originate from various sources, including reflections within the optical system, environment light, and light leakage from the display panel itself.
The presence of stray light can significantly degrade the virtual image quality in ar displays, making it difficult to see the augmented reality content clearly. It reduces contrast, making it harder to distinguish between the virtual objects and the real world.
Several techniques can be used to minimize stray light in ar displays, including:
Optical Coatings: Applying anti-reflective coatings to optical elements can reduce reflections and minimize stray light.
Light Shielding: Using baffles and other light-shielding elements can block unwanted light from reaching the eye display.
Polarization Filters: Using polarization filters can reduce reflections and improve contrast.
Careful Optical Design: Optimizing the optical design to minimize internal reflections and light leakage is crucial for reducing stray light.
Minimizing stray light is essential for achieving high image quality and a comfortable viewing experience in ar displays.
Traditional reality displays project a single image to each eye display, which can create a sense of depth but often lacks the realism of the human visual system. Light field displays, on the other hand, capture and reproduce the light intensity and direction of light rays in a scene, creating a more realistic and virtual image.
Instead of projecting a single image, light field displays project a multitude of images, each representing a slightly different viewpoint. These images are then combined by the human visual system to create a three-dimensional virtual image with accurate depth perception. This increased realism can significantly enhance the immersive vr and augmented and mixed reality (ar and mr) experience.
Light field displays are particularly well-suited for ar applications because they can accurately reproduce the depth cues of the real world, allowing virtual objects to seamlessly blend into the user's surroundings. AR devices and displays benefit.
While light field displays offer significant advantages in terms of realism, they also present several technical challenges. Capturing and processing the light field data requires significant computational power, and creating display devices that can accurately reproduce the light field is a complex engineering feat.
Several key display parameters define the overall display performance of ar displays. These parameters determine the image quality, field of view, and overall user experience.
Resolution: The number of pixels per unit area, which determines the sharpness and detail of the virtual image.
Brightness: The light intensity emitted light by the display panel, which determines the visibility of the virtual image in different lighting conditions.
Contrast Ratio: The ratio between the brightest and darkest parts of the virtual image, which determines the clarity and depth of the image.
Field of View (FOV): The extent of the virtual or augmented reality scene that is visible to the user.
Color Gamut: The range of colors that the display panel can reproduce.
Response Time: The time it takes for a pixel to change from one color to another, which affects the smoothness of motion in the virtual image.
Distortion: Any warping or bending of the virtual image, which can reduce realism and cause eye strain.
Eye Relief: The distance between the eye display and the user's eye, which affects the comfort and usability of the ar glasses.
Optimizing these performance parameters is crucial for creating high performance ar displays that provide a comfortable, immersive, and visually compelling experience. The ar system must be clear.
MicroLED display and Micro-OLED display technologies are emerging as game-changers in the realm of ar and vr displays. These display technologies offer significant advantages over traditional OLED and LCD displays, paving the way for a new generation of high resolution, high brightness, and energy-efficient reality and virtual reality displays.
MicroLED displays are composed of microscopic light emitting diode (LED)s that emit light directly. This results in several advantages, including high brightness, high contrast ratios, wide color gamuts, and long lifespans. MicroLEDs also have excellent energy efficiency, making them ideal for wearable devices like ar glasses.
Micro-OLED displays combine the benefits of OLED technology with the miniaturization of microLEDs. Micro-OLEDs are fabricated on silicon wafers, allowing for extremely high resolutions and precise control over individual pixels. This results in displays with exceptional image quality, high contrast ratios, and fast response times.
Both microled display and micro-oled display technologies are well-suited for ar and vr displays due to their small size, high resolution, and excellent optical performance. They offer the potential to create ar glasses and vr devices that are more compact, lightweight, and visually stunning. Many experts see leds as light source as the way to go.
The field of ar and vr display technologies is rapidly evolving, with researchers and engineers constantly pushing the boundaries of what is possible. Several key trends are shaping the future of virtual and augmented reality:
Higher Resolution: The quest for ever-higher display resolutions continues, as increasing the number of pixels per inch can further reduce the screen-door effect and improve image quality.
Wider Field of View: Expanding the field of view is crucial for creating a more immersive vr and ar experience.
Improved Brightness and Contrast: Enhancing display brightness and contrast ratios is essential for making virtual objects visible in a wide range of lighting conditions.
Light Field Displays: Light field displays are gaining traction as a way to create more realistic and comfortable virtual images.
Holographic Displays: Holographic display technologies are being explored as a way to create truly three-dimensional virtual images that appear to float in space.
Flexible and Foldable Displays: Flexible and foldable displays could enable new ar and vr form factors, such as glasses that can be folded up and stored in a pocket.
Eye Tracking Integration: Integrating eye-tracking technology into ar and vr displays can enable foveated rendering, where only the area of the image that the user is looking at is rendered in high resolution, saving computational power and improving image quality.
These trends suggest a future where ar and vr display systems are seamlessly integrated into our lives, providing us with new and innovative ways to interact with the digital and physical world. Whether you choose ar or vr depends on what you plan to do with it.
AR displays superimpose digital content onto the real world.
They differ from VR displays, which create completely virtual worlds.
Optical see-through and video see-through are two primary types of ar.
Waveguide technology is used to create compact ar glasses.
OLED displays offer superior optical performance compared to LCDs.
FOV is crucial for immersive experiences.
Stray light can degrade image quality.
Light field displays offer more realistic virtual images.
MicroLED and Micro-OLED are revolutionizing reality displays.
Future trends include higher resolution, wider field of view, and light field displays.
