Electronic Viewfinders (EVFs) are essential tools for filmmakers and videographers, offering a clear and accurate representation of the scene being captured. This article explores the latest advancements in EVF technology, with a focus on the impact of OLED microdisplays. We delve into popular options like the Zacuto Gratical and Kameleon EVFs, and investigate how micro-oled technology is transforming the electronic viewfinder concept, delivering high image quality and unparalleled performance for mirrorless and professional cameras.
An EVF, or electronic viewfinder, is a small display used in cameras to provide a magnified, high-resolution image of the scene. It's typically positioned near the eye, allowing the camera operator to compose the shot accurately, monitor exposure, and ensure proper focus, even in bright sunlight or challenging lighting conditions. The evf is an absolutely essential piece of equipment for any filmmaker.
Unlike optical viewfinders, which rely on mirrors and prisms, EVFs use an electronic display to generate the image. This allows for a wealth of additional features, such as peaking, zebra stripes, false color, and waveform monitors, which can greatly aid in achieving optimal image quality. A proper evf can allow a filmmaker to trust you’re seeing a realistic visualization of your final image. This realistic visualization of your final image allows filmmakers to work more efficiently.
Zacuto is a well-known and respected name in the filmmaking industry, renowned for its high-quality camera support systems and accessories. They've played a significant role in shaping the EVF market, particularly with their Gratical series of electronic viewfinders. Zacuto's EVFs are known for their robust build quality, accurate color rendition, and comprehensive feature sets, making them a favorite among professional filmmakers. Zacuto's kameleon and zacuto gratical models are both extremely popular.
The zacuto gratical series stands out due to its focus on providing a realistic visualization of your final image. Zacuto brought five different engineering companies together. They did this to ensure filmmakers are seeing a realistic visualization of your final image, allowing them to make informed decisions about exposure, focus, and composition. This is a great example of Zacuto's commitment to quality. Zacuto's EVFs deliver a great picture quality.

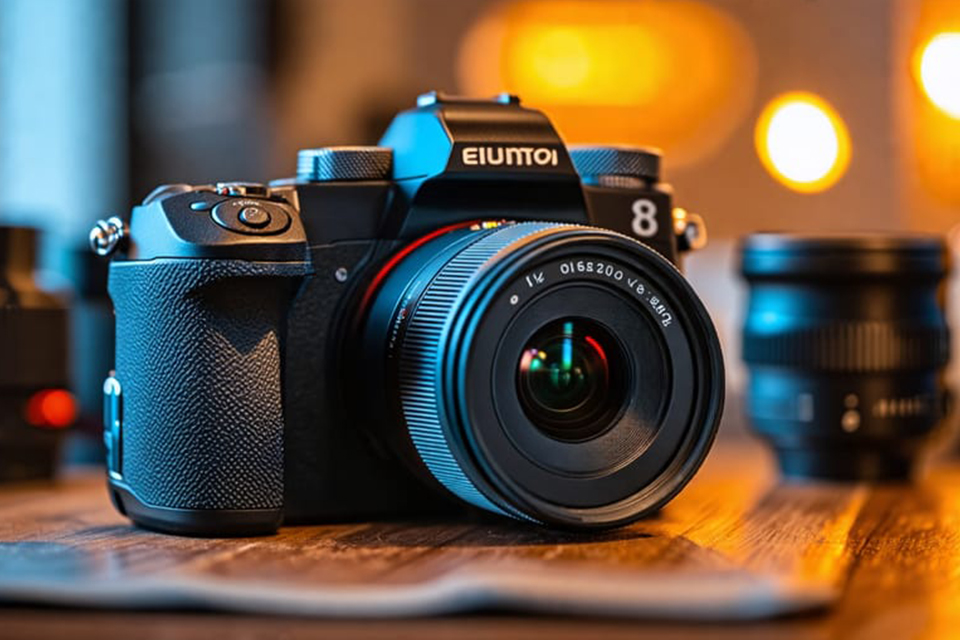

The rise of mirrorless cameras has significantly increased the demand for high-quality EVFs. Unlike DSLRs, which use an optical viewfinder, mirrorless cameras rely entirely on an electronic display for image preview. This means that the quality of the EVF is paramount for accurate composition and monitoring. Without an electronic viewfinder, a mirrorless camera is unable to view the image.
Mirrorless cameras are increasingly adopted by both amateur and professional filmmakers due to their compact size, lightweight design, and advanced features. However, to take full advantage of these cameras, a high-quality electronic viewfinder is essential. This has fueled the demand for advanced EVFs with features like high resolution, accurate color, and comprehensive monitoring tools. Without evfs, mirrorless cameras are unable to take pictures.
When shooting with a balanced shoulder rig, a good EVF is crucial for both comfort and accuracy. A well-positioned EVF allows the camera operator to maintain a stable and comfortable posture, reducing fatigue during long shoots. The correct position of the evf in the shoulder rig is critical.
Furthermore, a high-quality EVF provides a clear and accurate view of the scene, even when the camera is in motion. This is essential for maintaining proper framing, focus, and exposure, resulting in smoother and more professional-looking footage. With an accurate view, the balanced shoulder rig will be much easier to manage. A balanced shoulder rig without a proper evf would be difficult to use.
OLED (Organic Light Emitting Diode) technology offers several key advantages over traditional LCD displays when used in EVFs. OLEDs provide superior contrast ratios, deeper blacks, wider viewing angles, and faster response times. These characteristics translate to a more immersive experience and a more accurate representation of the scene being captured. Micro oled screens are particularly useful in achieving high levels of detail.
The high contrast ratio of OLED displays allows for a greater dynamic range, revealing more detail in both the highlights and shadows. The faster response times minimize motion blur, resulting in a sharper and more stable image, especially during fast-paced action. The oled screen allows for a better viewing experience compared to older technology. | Feature | OLED | LCD | | --------------- | ------------------------------ | ------------------------------ | | Contrast Ratio | Significantly Higher | Lower | | Black Levels | True Black | Grayish Black | | Response Time | Faster | Slower | | Viewing Angles | Wider | More Limited | | Power Consumption | Can be More Efficient, Scene Dependent | Can be More Efficient, Scene Dependent |

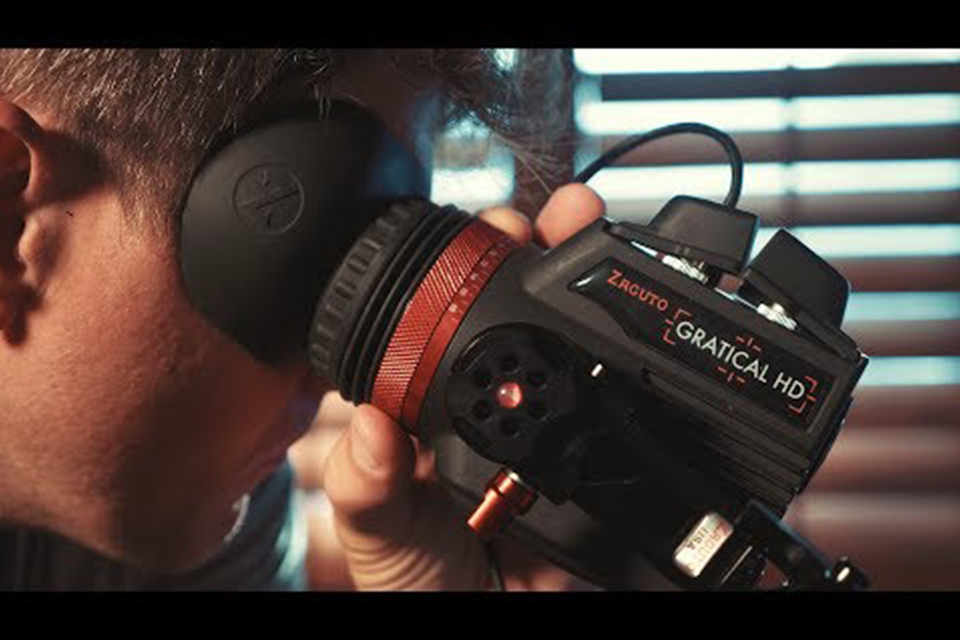

The Zacuto Gratical HD and Gratical Eye EVFs are both high-performance options designed for professional filmmakers. The Gratical HD is a workhorse evf that is highly durable and capable. The Gratical Eye is a more modern design with advanced features.
The Gratical HD features a high-resolution LCD display, while the Gratical Eye utilizes an oled microdisplay for superior contrast and color accuracy. Both EVFs offer a comprehensive suite of monitoring tools, including waveform, vectorscope, histogram, peaking, zebra stripes, and false color. They also support custom luts for on-set color grading. Gratical is a popular choice among filmmakers.
OLED microdisplay technology involves fabricating OLEDs directly onto a silicon backplane. This allows for extremely high pixel densities and small pixel sizes, resulting in incredibly sharp and detailed images in a very compact form factor. OLED microdisplays are increasingly used in evfs, ar and vr headsets, and other applications where small size and high image quality are essential. Oled microdisplays deliver high quality images.
Sony Semiconductor Solutions Group is one of the leading companies in the development of OLED microdisplay technology. They have successfully mass production micro oled displays with unparalleled resolution and high luminance, making them ideal for use in high-end evfs. The pixel pitch on these displays can be incredibly small, around 6.3µm, enabling very high ppi (pixels per inch) values.
Several EVFs on the market utilize OLED microdisplay technology to deliver exceptional image quality. Some of the most popular options include:
Zacuto Gratical Eye: Known for its accurate color reproduction and comprehensive monitoring tools.
SmallHD OLED 27: A high-end on-camera monitor with an OLED display, often used as an oversized EVF.
Portkeys OEYE: A compact and affordable OLED EVF with a decent feature set.
The zacuto gratical eye is often praised for its image quality. The small size also allows it to be portable, making it perfect for field shooting. It allows filmmakers to trust you’re seeing a realistic visualization.
The Zacuto Kameleon and Kameleon Pro evfs are compact and lightweight electronic viewfinders designed for mirrorless and smaller cinema cameras. Both models feature a high-resolution display and a range of useful monitoring tools. The Kameleon Pro offers additional features, such as waveform and vectorscope, making it a more comprehensive option for professional use. Zacuto brought five different engineering companies together for this project.
The key benefits of the Kameleon and Kameleon Pro include their small size, low power consumption, and high image quality. They're ideal for filmmakers who want a compact and versatile evf without sacrificing performance. Both models have HDMI ports so that they can interface with any camera that provides HDMI output. The zacuto kameleon evf and kameleon pro evf are some of the most popular models today.

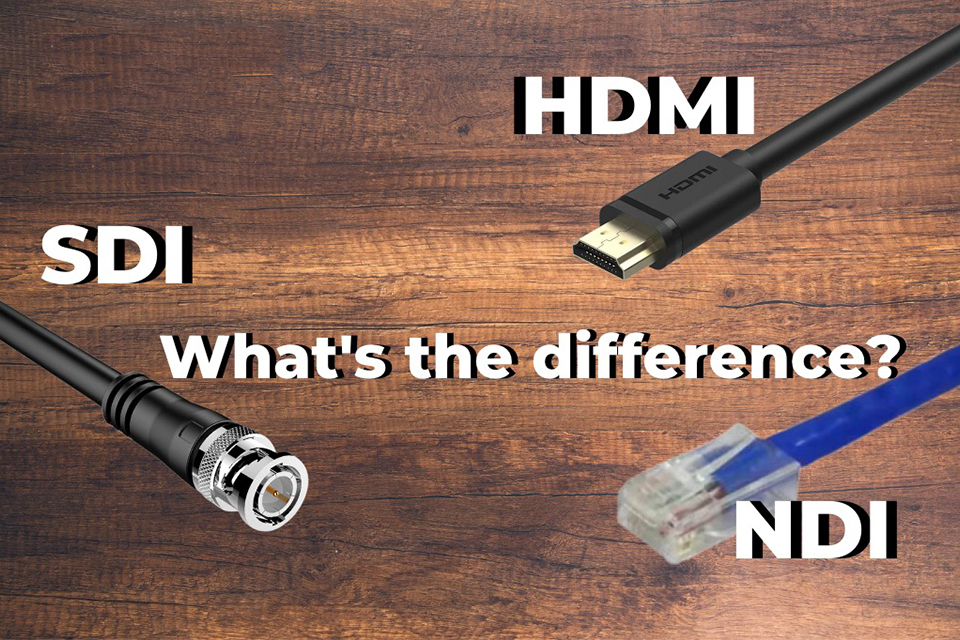

HDMI (High-Definition Multimedia Interface) and SDI (Serial Digital Interface) are two common display interfaces used in EVFs. HDMI is widely used in consumer electronics and is generally more affordable. SDI is a professional-grade interface that offers greater bandwidth, longer cable runs, and more robust connectivity. It is very important to check the display interface of the evf.
For most mirrorless camera users, hdmi is sufficient. However, for professional cinema cameras and broadcast applications, sdi is often preferred. Some EVFs offer both HDMI and SDI inputs for maximum compatibility.
| Interface | Advantages | Disadvantages |
|---|---|---|
| HDMI | Widely Used, More Affordable | Limited Bandwidth, Shorter Cable Runs |
| SDI | Higher Bandwidth, Longer Cable Runs, Robust | More Expensive, Less Common |
Peaking, zebra stripes, and false color are essential monitoring tools that help filmmakers achieve accurate focus and exposure.
Peaking: Highlights the edges of objects that are in focus, making it easier to achieve sharp focus.
Zebra Stripes: Overlays stripes on areas of the image that are overexposed, helping to avoid blown-out highlights.
False Color: Assigns different colors to different brightness levels, allowing for precise exposure control.
These features are invaluable for ensuring that the final image is properly exposed and in focus, regardless of the shooting conditions. Modern evfs have high levels of customization for these features.
Resolution: Higher resolution means a sharper and more detailed image. Look for displays with at least 1920x1080 (1080) resolution.
Contrast Ratio: A high contrast ratio provides a greater dynamic range and more detail in both the highlights and shadows. A good oled display will have a great contrast range.
Brightness (Luminance): Measured in nits, brightness determines how visible the image is in bright sunlight. High luminance is important for outdoor shooting.
Color Accuracy: Look for displays that cover a wide color gamut, such as Rec. 709 or DCI-P3, for accurate color reproduction.
Pixel Pitch: Refers to the distance between pixels on the display. A smaller pixel pitch results in a sharper image.
When shopping for an evf, several factors should be taken into consideration:
Display Technology: OLED microdisplays offer superior image quality compared to traditional LCDs.
Resolution: Choose an evf with a resolution that meets your needs. 1080p is a good starting point.
Monitoring Tools: Ensure the EVF has the necessary monitoring tools, such as peaking, zebra stripes, and false color.
Connectivity: Consider whether you need HDMI, SDI, or both.
Size and Weight: Choose an evf that is comfortable to use and doesn't add too much bulk to your camera rig.
Power Consumption: Look for an evf that is energy-efficient to maximize battery life.
Build Quality: Choose an evf that is durable and can withstand the rigors of professional use.
Customizable: Some evfs let you load your own luts and custom frame lines and aspect ratios, and these are especially valuable.
Diopter adjustment: a diopter will help keep the viewfinder in focus with or without glasses.
EVFs are essential for accurate shooting: They provide a clear view for composition and monitoring.
OLED technology offers superior image quality: High contrast, wide viewing angles, and fast response times.
Micro-OLED provides high resolution in a small package: Ideal for compact EVFs.
Zacuto is a leader in EVF technology: The Gratical and Kameleon series are popular choices.
Consider your connectivity needs: HDMI for mirrorless, SDI for professional cinema.
Monitoring tools are crucial: Peaking, zebra stripes, and false color aid in accurate focus and exposure.
Resolution matters: Choose an EVF with a resolution that meets your requirements.
Size and weight affect comfort: Select a compact and lightweight EVF for ease of use.
Battery life is important: Choose an energy-efficient EVF for longer shooting times.
OLED microdisplays are the future: They are increasingly used in high-end EVFs and other applications.
