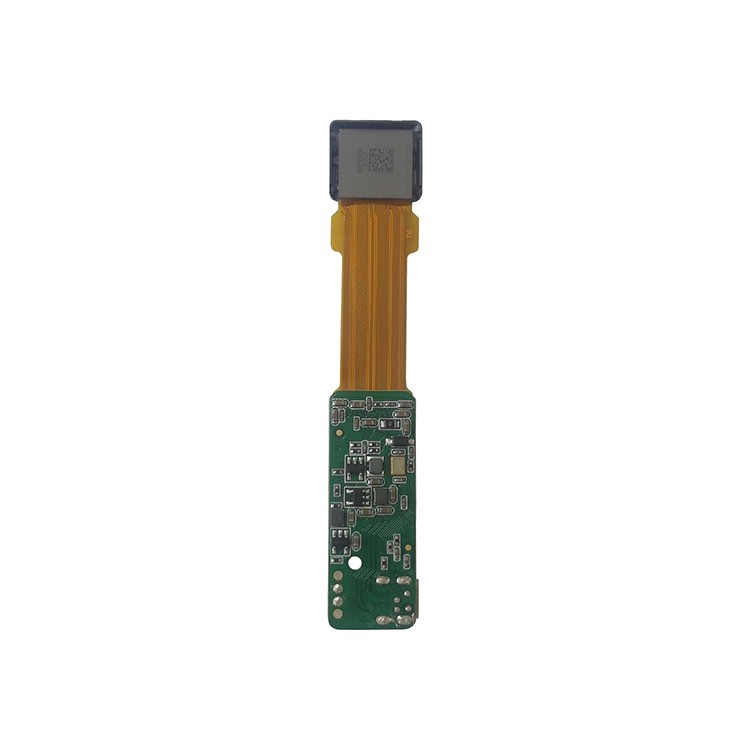

0.39 inch Micro OLED Screen 1024x768 for AR Glasses

The HGECX334AF is a 1.0 cm (type 0.39) diagonal, 1024 (RGB) × 768 dots active matrix color OLED panel module using single-crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition.

0.38 inch lcos display 1280x720 microdisplay for EVF,head-mounted displays



DESCRIPTION


HICENDA HGECX334AF is a 0.39 inch Micro OLED Display panel,this micro OLED display screen is with low power consumption , a high resolution of 1024xRGBX768 pixels, based on a single-crystal silicon backplane.

The pixel circuits and driving IC are integrated on the silicon backplane to get the compact size and very low power consumption.


Potential applications: Virtual Reality application (VR), Augmented Reality(AR), Head-mounted displays, Near-Eye displays, Military gunsight, and thermal imager.


It has  many advantages, including:

◆ Small-size, high-definition-type 0.39 XGA display dots 1024 (RGB) × 768 = 2.38M dots

◆ High contrast

◆ Wide color reproduction range

◆ High-speed response

◆ Thin type and light weight

◆ Power-saving function

◆ Up/down and/or right/left inverse display function

◆ Orbit supported

◆ Input interface that supports parallel RGB 24-bit and YCbCr 16-bit input

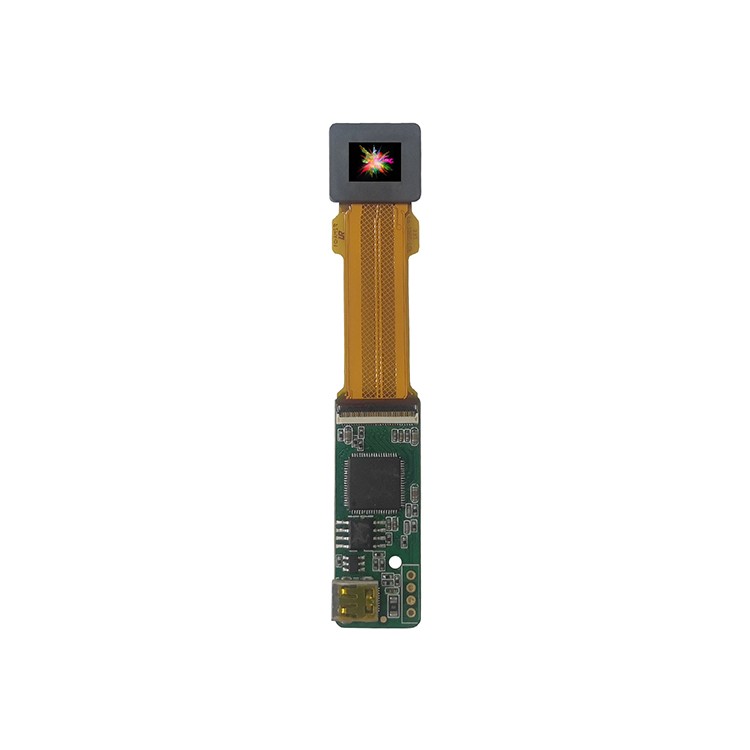

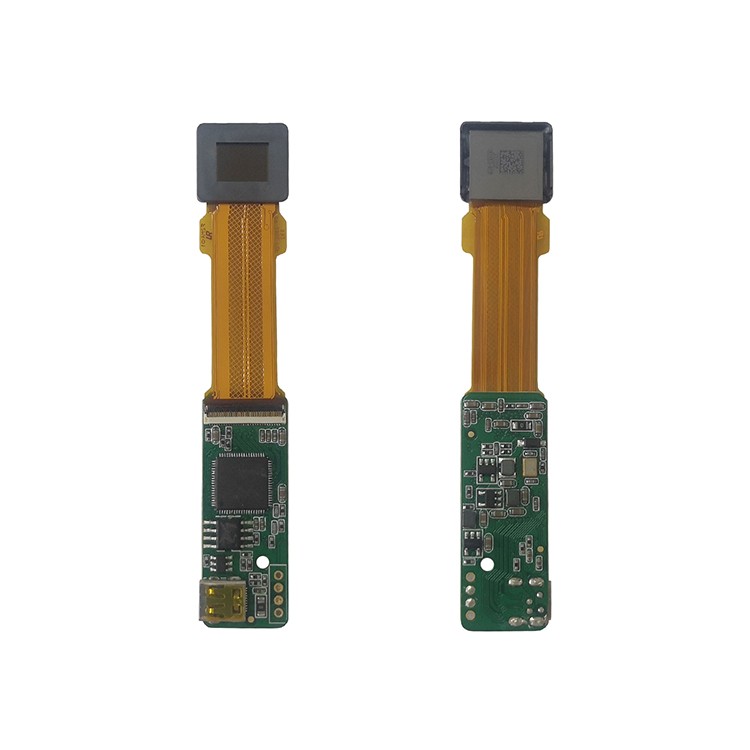

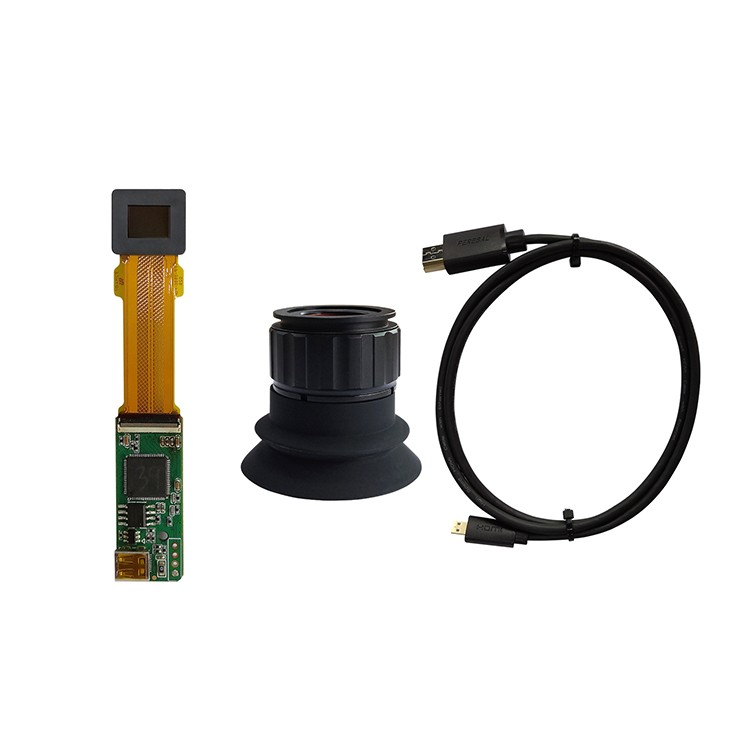

Hicenda Display could provide HDMI  and CVBS controller board, It can connect to laptop, PC with 1024x768 resolution at 60 Hz








GENERAL SPECIFICATION



Display Type:                                             oled display
Display Mode: Passive Matrix
Model Number:

HGECX334AF

Diagonal Screen size:0.39 Inch
Interface:

RGB 24bit
YCbCr 16bit

Number of Pixels:

1024x768

Panel Size:

15.6 x 13.6 x 0.2 (mm)

Active Area:

8.143x 6.146 (mm)

Weight:

TBD

Operating Temperature:

-10~70°

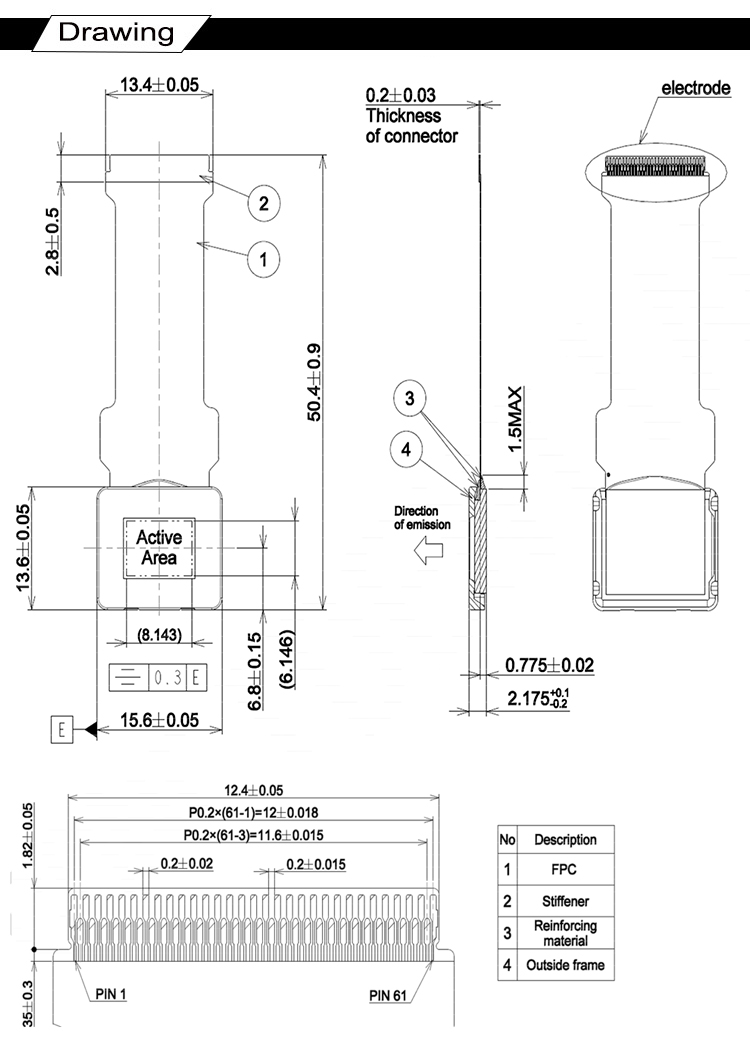

DRAWING



1024x768 OLED Microdisplay.jpg

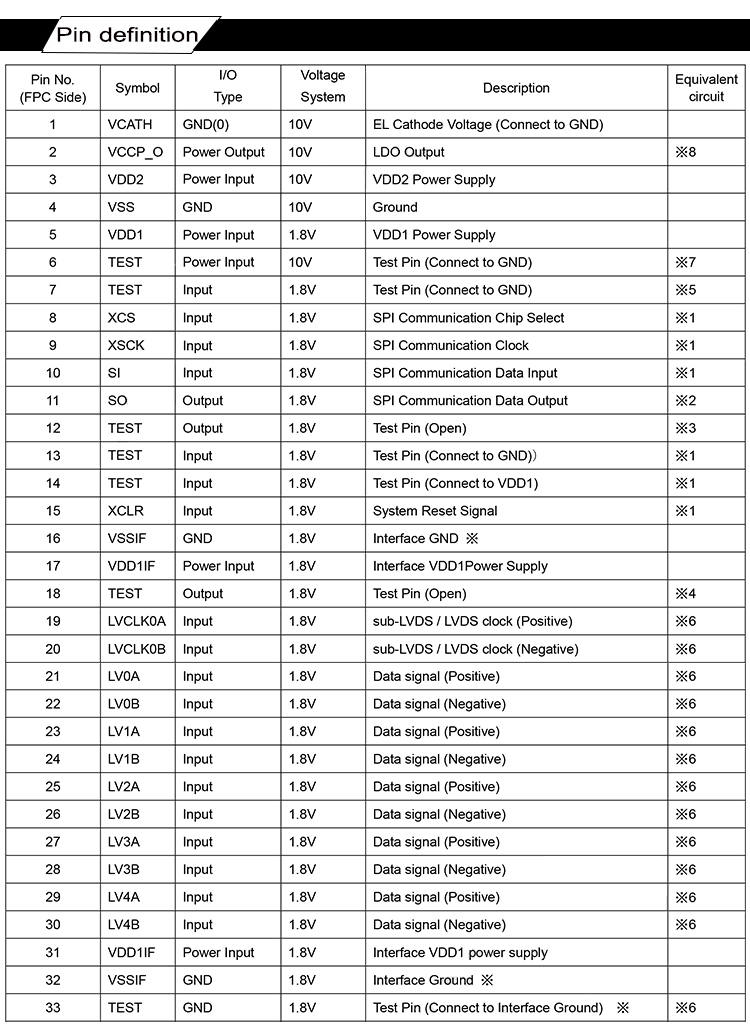

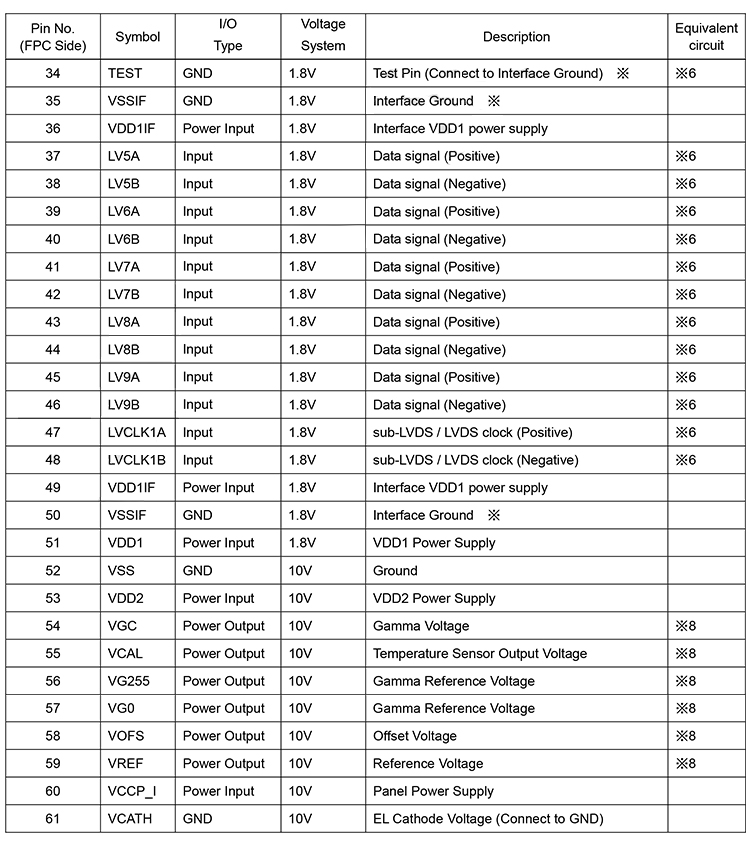

INTERFACE PIN FUNCTION


0.39 Microoled Display.jpg

Sony OLED Microdispaly.jpg
